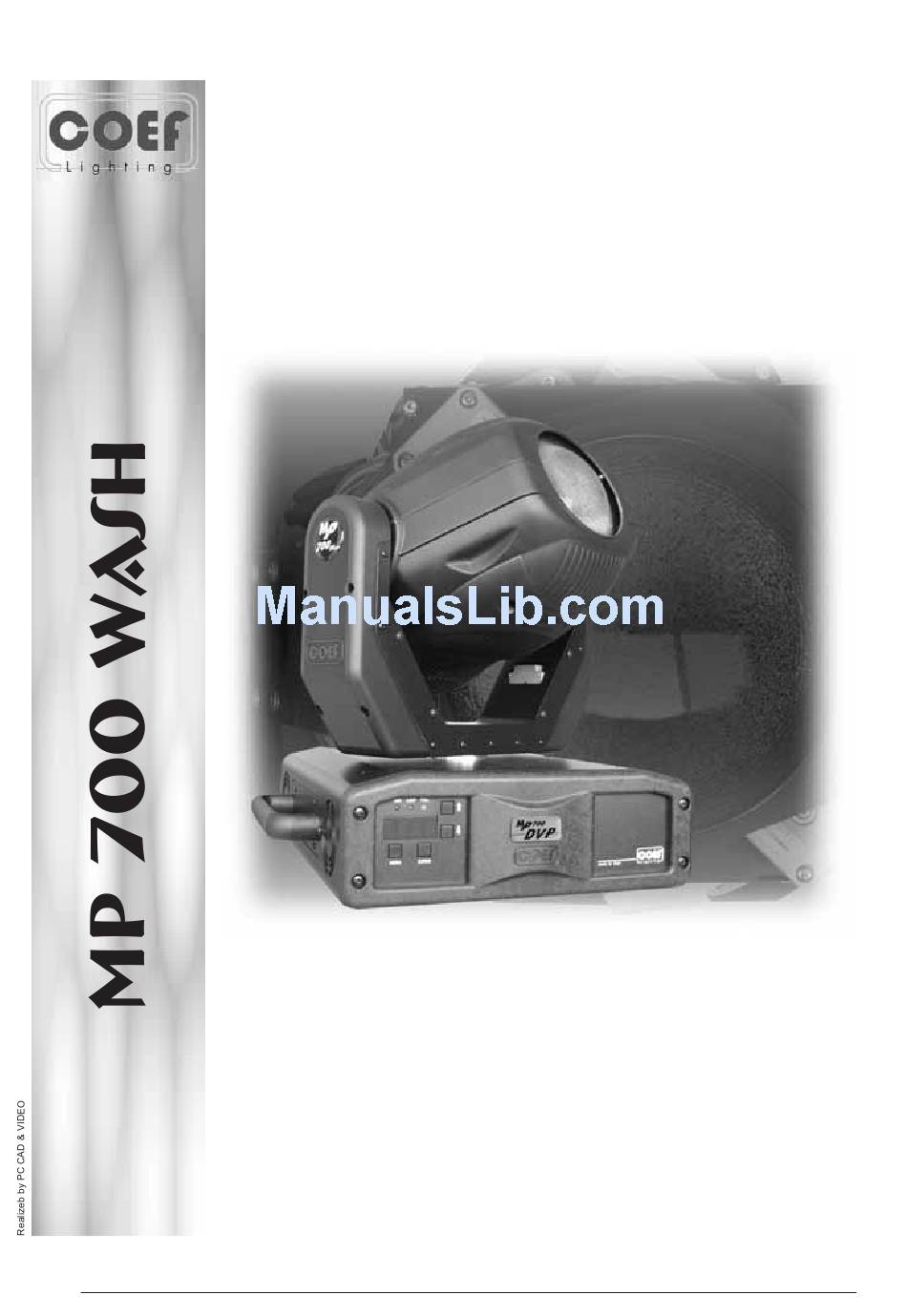

Page 1: Operating Instructions
COEF srl. Via Albinatico, 80-82 51019 Ponte Buggianese (PT) ITALY www.coef.it / www.coef.net info@coef.it Code 02E013 - DVP - Electronic Ballast • Code 02E012 - DV - Magnetic Ballast • • OPERATING INSTRUCTIONS Revision 1... -
Page 2: Advices For A Correct Installation
Declaration of CE conformity COEF srl. We Manufacturer Via Albinatico, 80-82 / ITALY 51019 Ponte Buggianese (Pistoia) MP700 Wash Declare that the product is in conformity with 89/336 EEC-EMC directive and with the actual required safety standars in accordance with LVD 73/23 EEC Ponte Buggianese, July 02 - 2002 ATTENTION: carefully read the directions of this manual. -
Page 3: General Warranty Conditions
Please find here below a list of symbols and relative meaning: OPERATOR : Not particulary qualified staff, that can operate when no specific knowledge is required COEF OPERATOR: Technical staff, qualified and trained by the constructor, for repair and extraordinary operations. -
Page 4: Dimensions & Positioning
Software upgrade via DMX (with UNI-PROG 8 Accessory) • Automatic ventilation adjustment with internal temperature survey • Lamp lighted sensor • Over temperature protection • Automatic fault survey • 16 control channels • Weight: 37,5 Kg (with electronic Ballast 28,5 Kg.) Pag. 4 http://www.coef.it info@coef.it... -
Page 5: Installation
Insert delicately the lamp in the projector support, driving it with the round cover. Pay attention: the lampholder’s wires must correctly reenter in the projector. Block the cover screwing the screws up ( part. A-B). http://www.coef.net - info@coef.it Pag. 5... -
Page 6: Operating Voltage
WARNING : The wrong selections of the operating tension and/or frequency compromise the good operation of the fixture and will immediately invalid the COEF warranty. Settings for magnetic ballast Cod. 02E012 The fixture can work at the... -
Page 7: Power Supply Connections
Power : indicated in the serigraphy table (tollerance: +5% / -10%) Should there be different electrical characteristics or special steps to be carried out (see par. 3.2), please contact COEF by telephone or e-mail elettronica@coef.it Supply the projector by connecting it as indicated in picture. -
Page 8: Special Functions And Projector Assignment
Press MENU 3 times to return to starting MENU. The indication of the display will automatically come back after 120 sec. and inform on the set starting channel DMX. If we are now in a sub-function, this automatic device will not assume control. Pag. 8 http://www.coef.it info@coef.it... -
Page 9: Menu, Function & Sub-Functions
(*) STND / REV 180° rotation of the visualization display SWPT (*) STND / SWAP Channel control switch PAN / TILT EDIM YES / NO (automatic value) YES = Electronic Dimmer ON Show the installed software version http://www.coef.net - info@coef.it Pag. 9... - Page 10 PINK LIGHT COLOR 13 211 - 225 CYANO LIGHT COLOR 14 226 - 240 GREEN VERY LIGHT COLOR 15 241 - 245 FAST COLORS MIXING 246 - 250 MIDDLE COLORS MIXING 251 - 255 SLOW COLORS MIXING Pag. 10 http://www.coef.it info@coef.it...
-
Page 11: Special Action
CHANNEL 2 = value 255 CHANNEL 3 and CHANNEL 4 = value 0 > 255 > 0 MASTER RESET: CHANNEL 1 = value 0 CHANNEL 2 and CHANNEL 3 = value 0 > 255 > 0 http://www.coef.net - info@coef.it Pag. 11... -
Page 12: Lamp Adjustment
Open the cover of MP700 Wash by the 4 fast screw. Clean carefully the indicated parts. Pag. 12 http://www.coef.it info@coef.it... - Page 13 4 screws in their seat; tighten carefully. http://www.coef.net - info@coef.it Pag. 13...
-
Page 14: Elettronic Maintenance
Faston GROUND connection Motor TILT DMX INPUT Motor PAN HEAD FAN Encoder TILT BASE FAN Encoder PAN 23 - Power connector on board 1-2 12V +/- 5% Blue 3-4 27V +/- 5% Grey 5-6 27V +/- 5% Black Pag. 14 http://www.coef.it info@coef.it... -
Page 15: Troubleshooting
The projector does not carry out - ENCO off in the PAN/TILT confi- Set ON ENCO Function of PAN/TILT con- the automatic repositioning of the guration menu (cap. 6.0) figuration menu (cap. 6.0). PAN or TILT movements. http://www.coef.net - info@coef.it Pag. 15...
