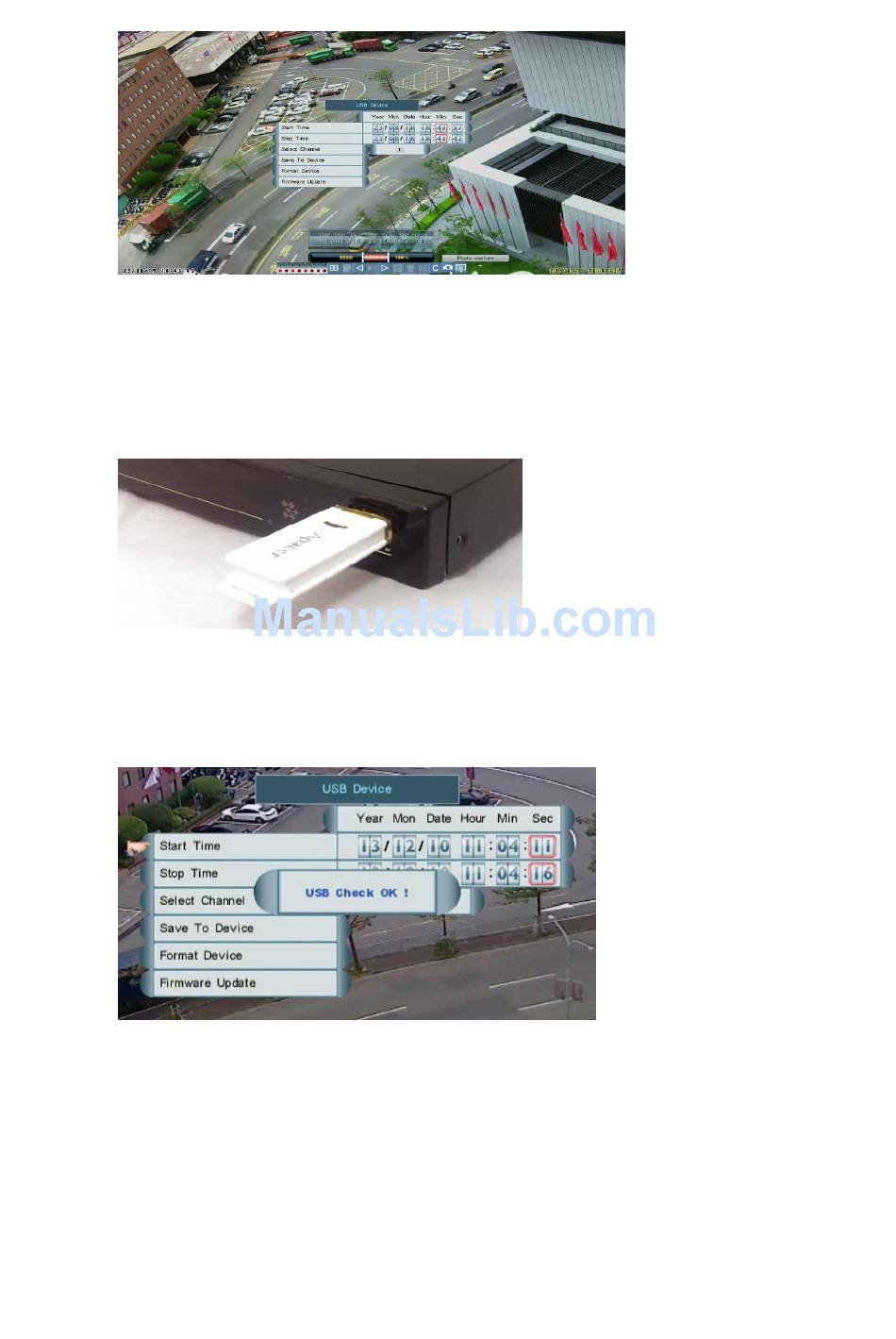

Start / Stop Time & Select Channel
Insert USB flash drive into the NVR. Click and Roll the mouse to set the start / stop time and channel which is
going to be saved to USB flash drive
NOTE: One USB flash drive can save maximum 16 files. Each file is up to 1GB or 30 minutes.
Save To Device
Insert USB flash drive into the NVR, it will show "USB Check OK!" on the screen
Click "Save to Device" to backup the video to USB flash drive, it will start storing the backup file. The file will be
named by Start Time as "Ch_YYYYMMDDhhmmss.mov"
30
