Antenna
Antenna
Installation
stallat
stallatio
Guide
Features:
• Vehicle use
• Easy to install
• Permanent installation
• Requires antenna adapter (sold separately)
• Compatible with Wilson amplifi ers (sold separately)

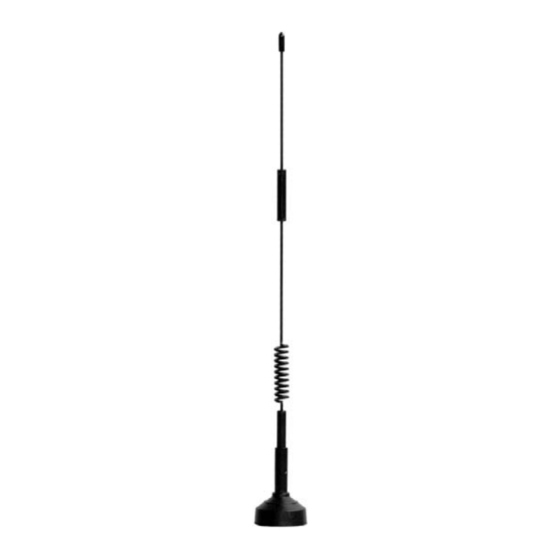

Dual-Band
NMO Mount
Antenna
Wilson
Electronics, Inc.
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wilson Electronics 301104
Summary of Contents for Wilson Electronics 301104
- Page 1 Antenna Antenna Installation stallatio stallat Guide Dual-Band NMO Mount Antenna Features: • Vehicle use • Easy to install • Permanent installation • Requires antenna adapter (sold separately) • Compatible with Wilson amplifi ers (sold separately) Wilson ® Electronics, Inc.
- Page 2 Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer.
- Page 3 Installing the NMO Mount Antenna Select a location for mounting the antenna. The best location would be centered on the vehicle roof, although other locations are acceptable. For mounting the antenna on the trunk of a vehicle, use Wilson Part # 901101.
- Page 4 Antenna Specifi cations Part Number 301104 Frequency Range 806-894 MHz / 1850-1990 MHz Impedance 50 ohms Antenna Gain 4.9 dBi 806-894 MHz / 5.9 dBi 1850-1990 MHz Radiation Omni Polarization Vertical Wavelength 1.0 Wavelength 806-894 MHz / 2.1 Wavelength 1850-1990 MHz...
