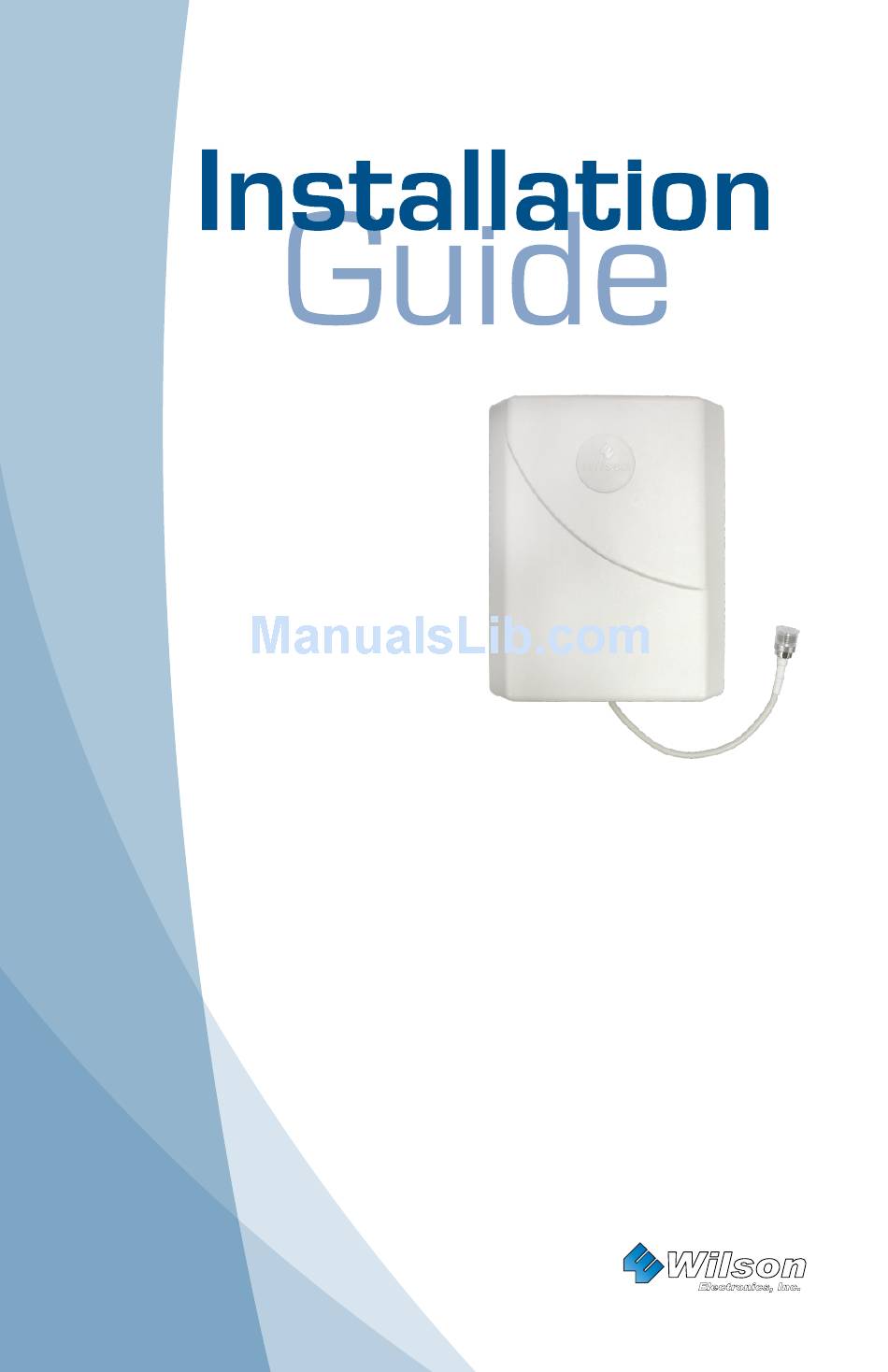

Antenna
Wall mount
Wide-Band
Panel Antenna
Wall - 50 Ohms PART# 301135
Upgrade - 50 Ohms PART# 301147
Wall - 75 Ohms PART# 301155
The Wide-Band Panel Antenna is vertically polarized. For
optimum performance, install the antenna with the cable
running from the bottom or the top.
Wilson
®
Electronics, Inc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wilson Electronics 301135
Summary of Contents for Wilson Electronics 301135
- Page 1 Antenna Wall mount Wide-Band Panel Antenna Wall - 50 Ohms PART# 301135 Upgrade - 50 Ohms PART# 301147 Wall - 75 Ohms PART# 301155 The Wide-Band Panel Antenna is vertically polarized. For optimum performance, install the antenna with the cable running from the bottom or the top.
- Page 2 Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for mounted a minimum of 6 feet from the floor. Place delivery of the repaired or replaced product back to the original consumer.
- Page 3 Antenna Specifications Part Number 301135 301147 301155 700-800 MHz / 824-894 MHz / 880-960 MHz / Frequency Range 1710-1880 MHz 1850-1900 MHz / 2110-2170 MHz Impedance 50 ohms 75 ohm 5.2 dBi 700-800 MHz / 4.4 dBi 824-894 MHz / 4.2 dBi 880-960 MHz /...
