Antenna
Antenna
Installation
Installation
Installation
Guide
DualBand Mini
GlassMount
Antenna

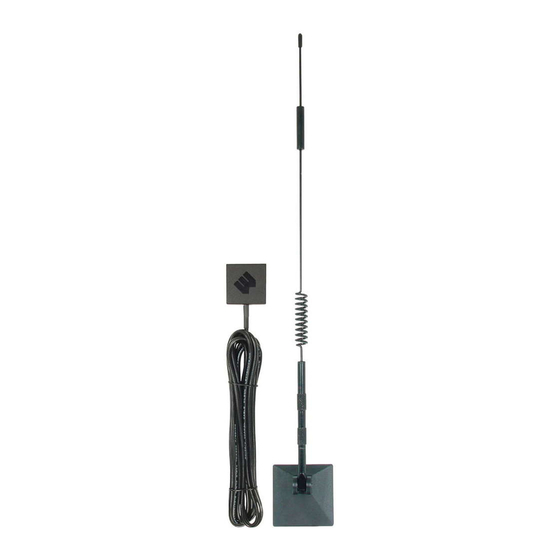

PART# 301114
Features:
• Vehicle, home or offi ce use
• Easy to install
• Permanent installation
• Builtin ground plane
• Requires antenna adapter (sold separately)
• Compatible with Wilson amplifi ers
DualBand
GlassMount
Antenna
PART# 301102
Advertisement
Table of Contents
Related Manuals for Wilson Electronics 301102
Summary of Contents for Wilson Electronics 301102
- Page 1 Antenna Antenna Installation Installation Installation Guide DualBand GlassMount Antenna PART# 301102 DualBand Mini GlassMount Antenna PART# 301114 Features: • Vehicle, home or offi ce use • Easy to install • Permanent installation • Builtin ground plane • Requires antenna adapter (sold separately) • Compatible with Wilson amplifi ers ...
- Page 2 30Day MoneyBack Guarantee All Wilson Electronics products are protected by Wilson’s 30day moneyback guarantee. If, for any reason, the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. 90Day Warranty Wilson Electronics antennas are warranted for ninety (90) days against defects in workmanship and / or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Antennas may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) ...
- Page 3 The antenna may be mounted along Possible Mounting the top of the front or rear window. For Locations best performance, don’t mount on the rear window of trucks or SUVs. Check to ensure your mounting location won’t interfere with windshield wiper operation. Keep the antenna away from defogger wires and metallic aftermarket window tint most factory tint is nonmetallic and will not interfere. If the antenna must be mounted on the defogger, center it between the defogger wires as much as possible. Avoid Defogger Clean the exterior window surface Wires with glass cleaner or an alcohol swab. Be sure the same location inside the window is clear of obstacles. Remove the protective paper on the base to expose the adhesive pad and fi rmly press the antenna into place on the outside of the window. Note: If Antenna installing on a home or offi ce window, Base ensure that it is not dualpane glass. Not recommended for RVs too much metal above the window will interfere with operation. The coupling box is installed on the interior of the glass in the same position as the antenna base on the outside. Clean the inside surface with window cleaner or an alcohol swab. ...
- Page 4 Antenna Specifi cations Part Number 301102 301114 Frequency Range 806894 MHz / 18501990 MHz Impedance 50 ohms 3.5 dBi 806894 MHz / 1.4 dBi 806894 MHz / Antenna Gain 4.8 dBi 18501990 MHz 2.4 dBi 18501990 MHz Radiation Omni Polarization Vertical 1.1 Wavelength 806894 MHz / 1/4 Wavelength 806894 MHz / Wavelength 2.3 Wavelength 18501990 MHz 9/16 Wavelength 18501990 MHz Ground Plane Builtin ground plane Connector FMEFemale Material Whip stainless steel Whip plastic coated steel wire Coax Cable RG58 14 feet / 4.27 meters Height 15 inches / 38.10 cm 5.375 inches / 13.65 cm Mount Glass mounting with 3M™ adhesive Wilson Amplifi ers Boost Coverage A Wilson Electronics amplifi er (sold separately), when used in conjunction with ...
