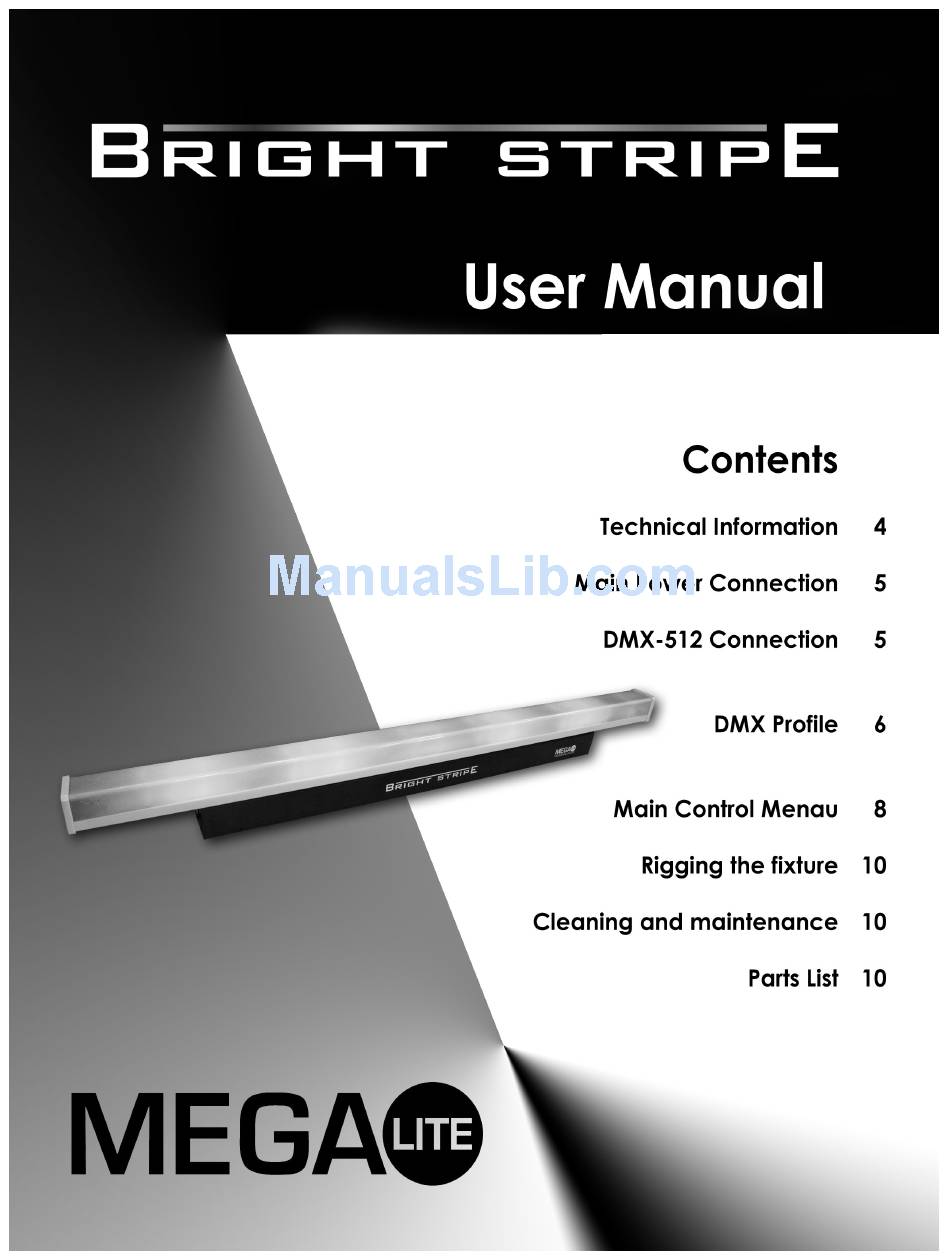

Mega Lite Bright Stripe User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bright Stripe and is the answer not in the manual?

Questions and answers

Related Manuals for Mega Lite Bright Stripe

Summary of Contents for Mega Lite Bright Stripe

  • Page 3 Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5.

  • Page 4: Technical Information

    Technical Information Part Numbers Fixture 4055– Bright Stripe Mechanical Specifications DMX Connectors: 3-pin XLR connectors 39.75” Power Connection: Nema 5-15 Thermal: Maximum ambient temperature 40° C Maximum surface temperature 60° C Fastening System: 3 threaded mounting points 2” Fixture Packaged for Shipping 4”...

  • Page 5: Main Power Connection

    Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 240V from 50Hz to 60Hz Cable (USA) Cable (EU)

  • Page 6: Dmx Profile

    DMX Profile Mode 1 (3 Channels) DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 Mode 2 (24 Channels) DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color...
  • Page 7 Mode 4 (6 Channels) DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 Strobe Strobe (slow to fast) 0-255 No Function Color fade (slow to fast) 2-19 Color Snap (slow to fast) 20-39...

  • Page 8: Main Control Menu

    This function allows you to activate the pre programs stored in the Bright Stripe via audio sensitivity. Press Enter to confirm the settings. Pre Programs Mode This function allows you to activate from the 25 pre programs stored in the Bright Stripe via control screen. Press Enter to con- firm the settings. Fade Scroll This function allows you to fade the LED’s on the whole strip from one color to another.

  • Page 9: Dmx Mode

    This function allows this Bright Stripe to work as a slave fixture that will copy everything the Master unit is doing. DMX Mode This function allows you to select the mode in witch you want to control the Bright Stripe. Press Enter use the up/down keys to select desired DMX mode settings. Press Enter to confirm the settings.

  • Page 10: Rigging The Fixture

    When rigging the unit always be secured with a secondary safety attachment. The installation location of the Bright Stripe has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be checked at least one time a year by a skilled person.
  • Page 11 Mega-Lite 5718 Kenwick St San Antonio, TX 78238 Ph 210-684-2600 Fax 210-855-6279 www.mega-lite.com / info@mega-lite.com...
