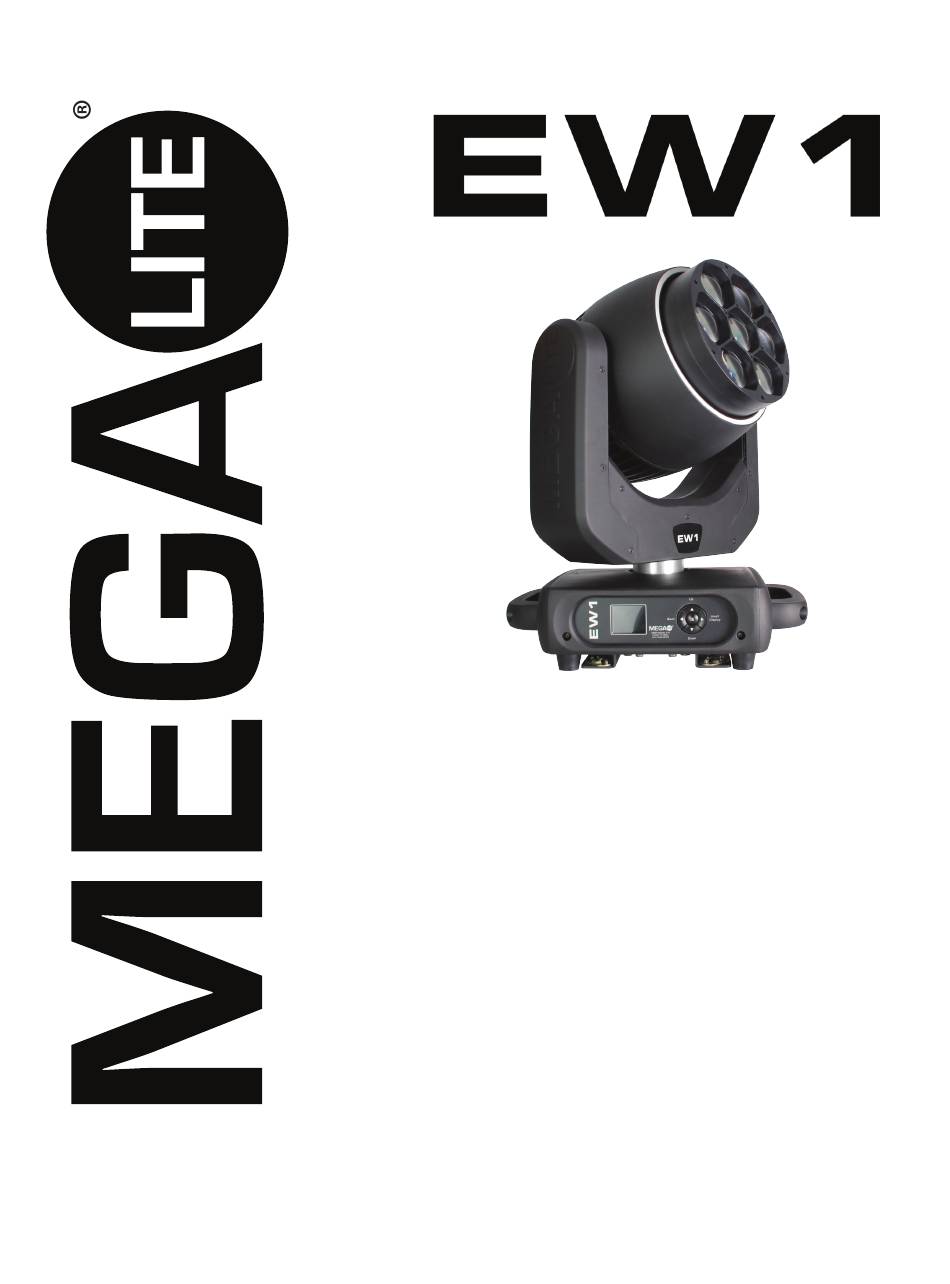

Mega Lite EW1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL

Table of Contents

2
2
3
4
4
5
8
11
12
12
13
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mega Lite EW1

Summary of Contents for Mega Lite EW1

  • Page 1: Table Of Contents

    USER MANUAL Table of Contents Safety Information What’s Included Specifications Main Power Connection DMX Connection Display Settings DMX Profile Size And Weight Segment Installation Warranty Customer Service...

  • Page 2: Safety Information

    Use secondary safety chain when hanging unit. Use quality clamps or bolts when positioning unit. Do not open unit while it is on. Risk of electrical shock. Mechanical What is Included 1pc EW1 fixture 1pc Power Cable 2pc Quick Release Clamp Mount 1pc 1pc User Manual...

  • Page 3: Specifications

    Specifications Part Numbers Fixture ID 1235-EW1 Mechanical Specifications Housing: High Temp, Low flammability, Plastic Mounting System: 2 Quick Release Clamp Mounts Power Connection: Input Seetronics SAC3MPA Panel Mount Output Seetronics SAC3MPB Panel Mount Cable Seetronics SAC3FCA plug to Nema 5/15...

  • Page 4: Main Power Connection

    Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (Electronically grounded) Replace fuse only with the specified type and rating. (F6AL250V) This device is equipped with auto switching power supply that will allow the fixture to work from 90-250V AC 50/60Hz Cable USA Cable EU...
  • Page 5 Display Control ® The control board on the fixture base is your interface to access and control all the functions on the unit. Fail Mode 27CH Invert It’s LCD display gives you a code view of the options Back Display and functions.
  • Page 6 Run Mode: Settings Channel Mode 27CH DMX: Fixture will operate on DMX Mode Run Mode Pan Invert Close Auto: Fixture will run internal Pre-Programs Tilt Invert Close Fan Control Dim Curve Line Settings Pan Invert: Fixtures Pan Movement will be inverted to run opposite direc tion Channel Mode 27CH...

  • Page 7: Display Settings

    DMX Fail: If DMX Signal Fail fixture will Settings Pan Invert Close Clear: Clear all DMX Channels to 0 Tilt Invert Close Keep: Keep the last DMX Command received Fan Control Dim Curve Line Dim Fast Close Close DMX Fail Clear Main Menu Manual: Gives you control of each function via display settings.

  • Page 8: Dmx Profile

    DMX Profile EW 1 DMX Profile Channel Channel Function Description Value Init Value Mode Mode 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 P/T Speed Pan and Tilt Speed (fast to slow) 0-255 Dimmer Dimmer Off to Full (front leds) 0-255 Dimmer Fine...
  • Page 9 Effect Speed Effect Speed (slow to fast) 0-255 8000K to 2000K (front LEDs) 0-255 Ring LED Intensity Ring Red LED 0-255 Ring LED Intensity Ring Green LED 0-255 Ring LED Intensity Ring Blue LED 0-255 No Function Ring Macro 1 Ring Macro 2 9-16 Ring Macro 3...
  • Page 10 No Function 0-49 Pan & Tilt Reset (Hold for 5 Seconds) 50-100 Control Lens and Zoom Reset (Hold for 5 Seconds) 101-230 All Function Reset (Hold for 5 Seconds) 231-245 No Function 246-255 LED 1 Red 1 0-255 LED 1 Green 1 0-255 LED 1...

  • Page 11: Size And Weight

    Size and Weight 8.75” 13.5” (Lens In) 3” 19.37” 16.37” 9.37” 4” 15” Fixture Size: 15” X 9.37” X 19.37” Fixture Weight: 32lb Packaged Size: 16.5” X 13.5” X 24.5” Packaged Weight: 35.25lb...

  • Page 12: Segment

    Segment Pan , Tilt , Zoom Rot DMX Values: 000 Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injuries, if you have doubts concerning the safety do not install. 3.

  • Page 13: Warranty

    General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2.

  • Page 14: Customer Service

    Customer Support MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210)684-2600 Service@mega.lighting...
