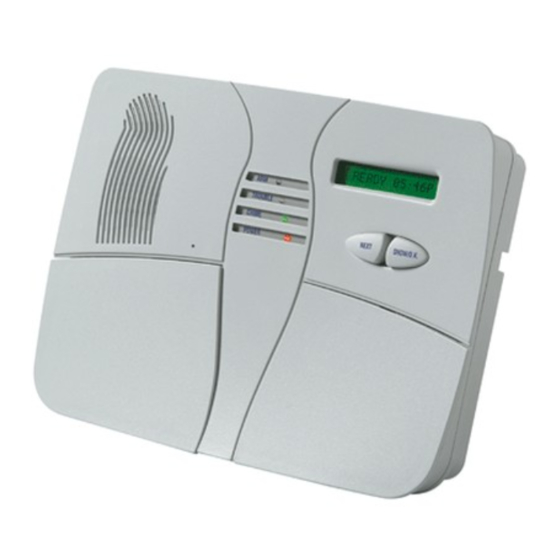

Visonic PowerMax Plus Quick Start Manual

Thank you for choosing the Visonic PowerMax Plus security system. Please follow these instructions
to ensure your system is setup properly.
1. Locate your PowerMax unit within 6 feet of a power plug and a phone jack.

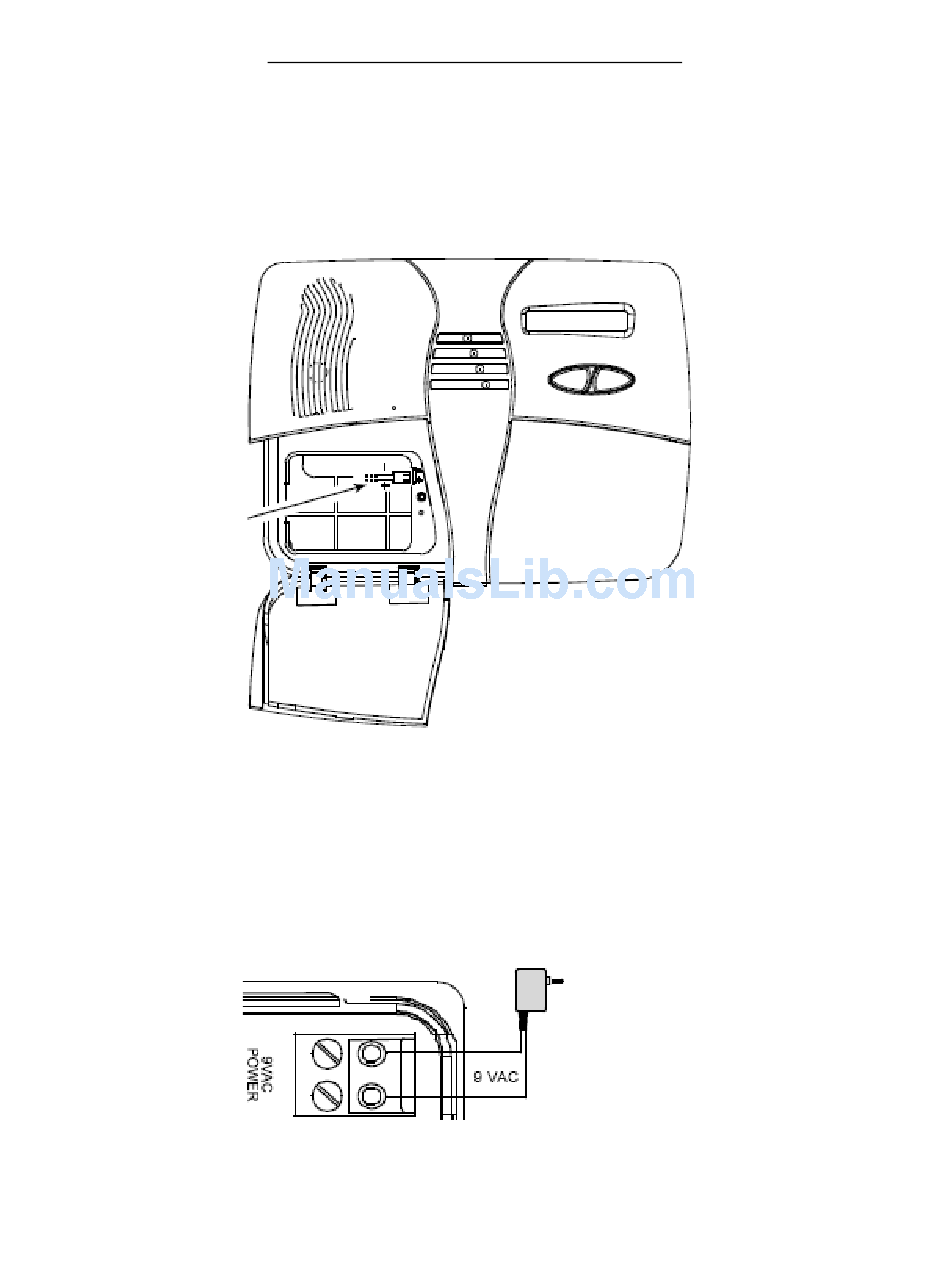

2. Open the PowerMax battery door with a philips screw driver, as shown in the diagram below.
3. Once you have opened the Unit, plug the battery in as shown below and close the door,
screwing the retaining screw in tight.
4. Now, remove the retaining screw from the back bracket of the PowerMax Plus unit, once the
screw is removed, remove the cover plate. You will now need to connect the AC power supply
transformer. Strip away ¼ inch of the wire insulation, exposing copper on either end of the
wire. Connect one end to the transformer terminals, and the other end to the Panel AC terminals
in the upper right hand corner shown below. This is AC power, so no polarity is observed.
5. If mounting the PowerMax Plus to the wall, you will need to mount the back cover to the wall
first before re-connecting it to the Powermax unit. When doing so, remember to replace the
retaining screw and screw it tight.
Quick Start Guide for the PowerMax Plus
