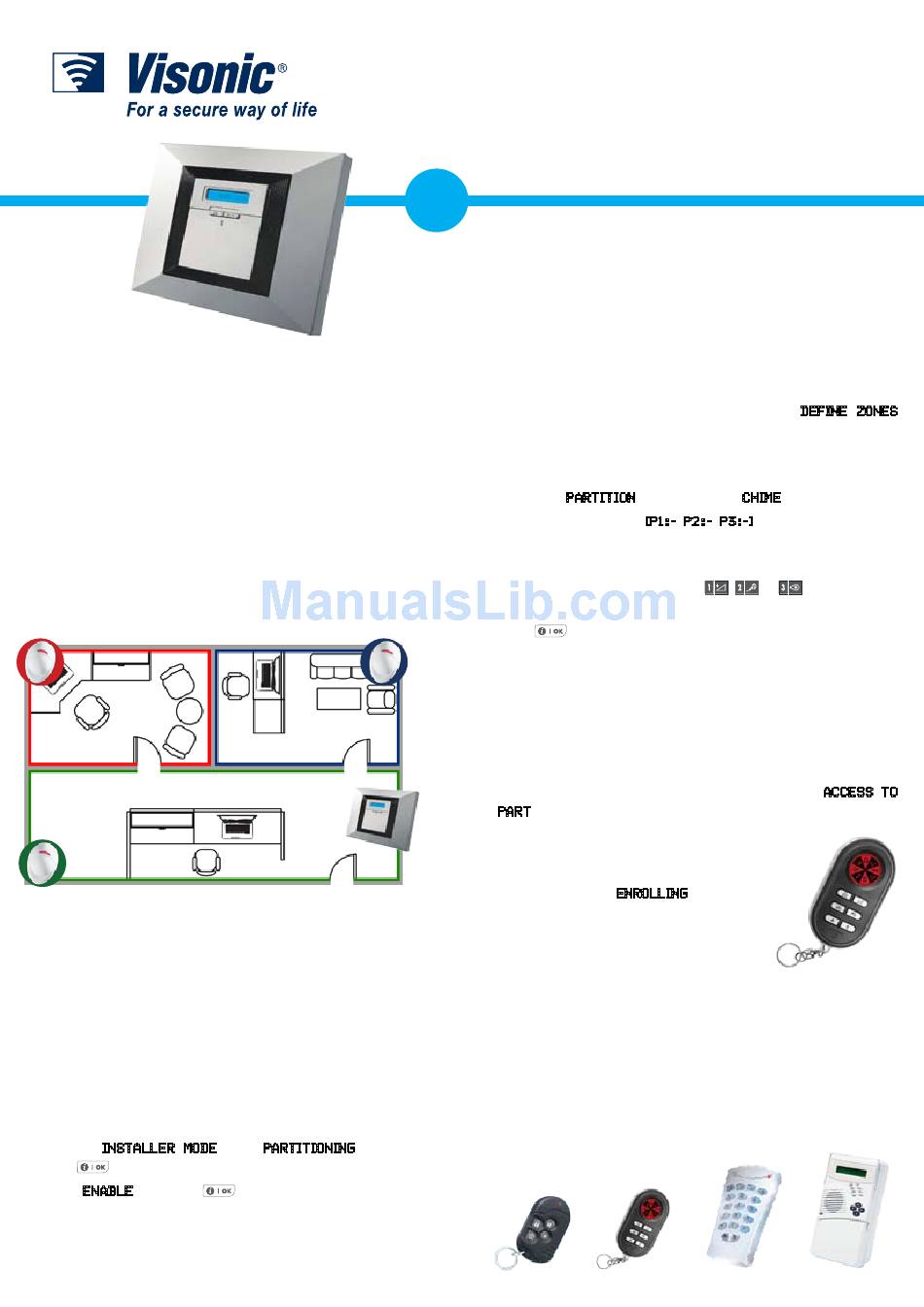

Visonic PARTITION II Quick Installation Manual

What Are Partitions?
•
The PowerMax includes an optional partition feature.
Partitioning allows you to have up to three independently
controllable areas whereby each can be in the HOME, AWAY
or DISARM state.
•
Each independent area is called a 'partition' and has its own
defined zones, user codes, etc.
•
Partitions provide highly flexible control in premises
where multiple areas need to be monitored or secured
independently.
Using Partitions in the Workplace
Partition 1
Accountants
Reception
Common area
•
The area in this example has 2 offices (accountant's and solicitor's)
•
Each office runs independently with different working hours
•
The reception area is shared by both offices
• Each area has a NEXT motion detector installed
The reception area is explained later in the '
L
section
STEP 1: Planning & Enabling
•
The panel comes with partitioning feature disabled.
•
The first step is to enable Partitions II feature:
•
From the
INSTALLER MODE
press
•
Select and press
ENABLE
To avoid confusion and to make installation simpler, it is rec-
L
ommended to note down the zones and their corresponding
partitions
Partition 2
Solicitors
common area '
select and
PARTITIONING
twice
PowerMax
A q u i ck st a r t g u id e to
Partitions II
STEP 2: Defining Partitions
•
Partitioning programming is performed via the
menu.
•
For each zone, set the zone type, name and chime option, as
per the installer manual.
•
Select the option (follows
PARTITION
•
The screen will display
[P1:- P2:- P3:-]
the partitions to which the current zone is assigned.
•
Assign the zone to its proper partition or partitions
•
To select partitions simply press
respectively.
•
Press twice to confirm the settings.
A zone must be assigned to at least one partition at all times
L
STEP 3: Setting User Codes & Keyfobs
•
User code 1 is the master user code and controls all 3 partitions.
•
Other user codes can control only a specific partition or a combi-
nation of partitions defined by the master user during setup.
•
After selecting and defining user codes, select the
menu to associate the user code with a partition or a
PART
partition combination.
•
Keyfobs are associated with a partition or
a partition combination during enrolment,
performed via the
ENROLLING
To change the partition association of
L
keyfobs simply re-enroll the keyfob
Arming and Disarming the System
•
A user, using a user code or an MCT-237 two-way keyfob,
can control all partitions associated with the code or keyfob
simultaneously, or an individual partition
•
When using MCT-234 keyfob or the MCM-140 remote
commander, a user can only control all the associated partition(s)
simultaneously (i.e. no control over individual partitions).
MCT-234 MCT-237
®
DEFINE ZONES
)
CHIME
Black squares indicate
(1, 2, or 3).
, or on the keypad
ACCESS TO
menu.
MCM-140/+ MKP-150
