BS Charger BA10 User Manual And Manual

For lead-acid batteries professional battery charging for starter and deep cycle batteries
Hide thumbs Also See for BA10:
Table of Contents

Advertisement

Quick Links

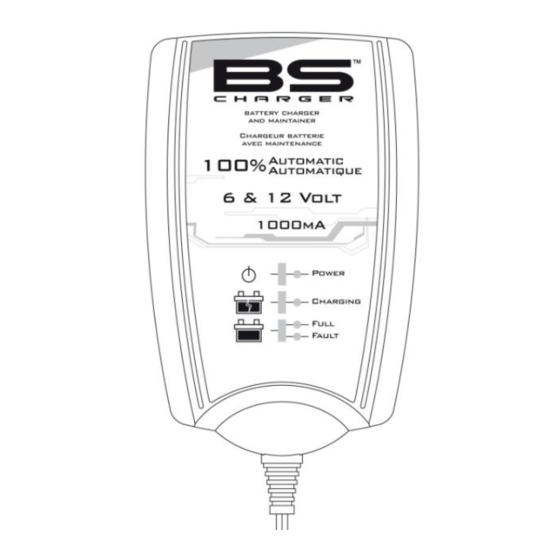

BA10

BATTERY CHARGER

For lead-acid batteries
User Manual and Guide to professional battery
charging for Starter and Deep Cycle batteries.
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR
12V BATTERY CHARGER: BA10
[ENGLISH]
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BA10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BS Charger BA10

Summary of Contents for BS Charger BA10

  • Page 1: Battery Charger

    BA10 BATTERY CHARGER For lead-acid batteries User Manual and Guide to professional battery charging for Starter and Deep Cycle batteries. THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR 12V BATTERY CHARGER: BA10 [ENGLISH]...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please read this manual and follow the instructions carefully before using the charger WARNING  The charger is designed to charge 12V lead-acid batteries from 2Ah to 20Ah. However, charger can maintain batteries up to 60Ah.  We always recommend that you check the Battery Manufacturers specifications before using this charger.
  • Page 3  Short circuit protection: The charger will automatically turn off when the output short circuit occurred and prevent any damage  Reverse polarity protection : The charger can automatically shut off when the output polarity is reversed and without damage SAFETY &...

  • Page 4: Environmental Characteristics

     Operating Temperature: 0 to 45° C  Storage Temperature: -25 to 85°C  Operating Humidity Range: 0 to 90% RH  Cooling: Passive / Natural TECHNICAL SPECIFICATIONS: Part Number BA10 Type Automatic Input Voltage Range 100~240Vac Input Frequency 50/60Hz...
  • Page 5 STEP 2 - Connecting the Battery charger to your Battery  If the Battery is out of the vehicle: o Connect the Red lead from the charger to the positive (+) battery terminal. o Connect the Black lead from the charger to the negative (-) battery terminal. ...
  • Page 6 STEP 3 - Connect the battery charger to Mains Power (100~240Vac)  Connect the battery charger to a 100~240VAC Mains Powered socket.  Turn on the 100~240VAC Mains Power.  The Charger will automatically start when AC power is connected and switched on. (Note: If the Fault Indicator LED illuminates Red, please check your connections as it’s likely that the Positive and Negative Leads are reversed.

  • Page 7: Trouble Shooting

    STEP 4 - Disconnecting the Battery charger from Battery  If the Battery is out of the vehicle. o Switch OFF and Remove the AC Power Socket from the outlet. o Remove the Black lead and then the Red lead. o Check electrolyte levels if possible.
