BS Charger BS20 User Manual

Battery charger for lead-acid batteries
Hide thumbs

Advertisement

Table of Contents

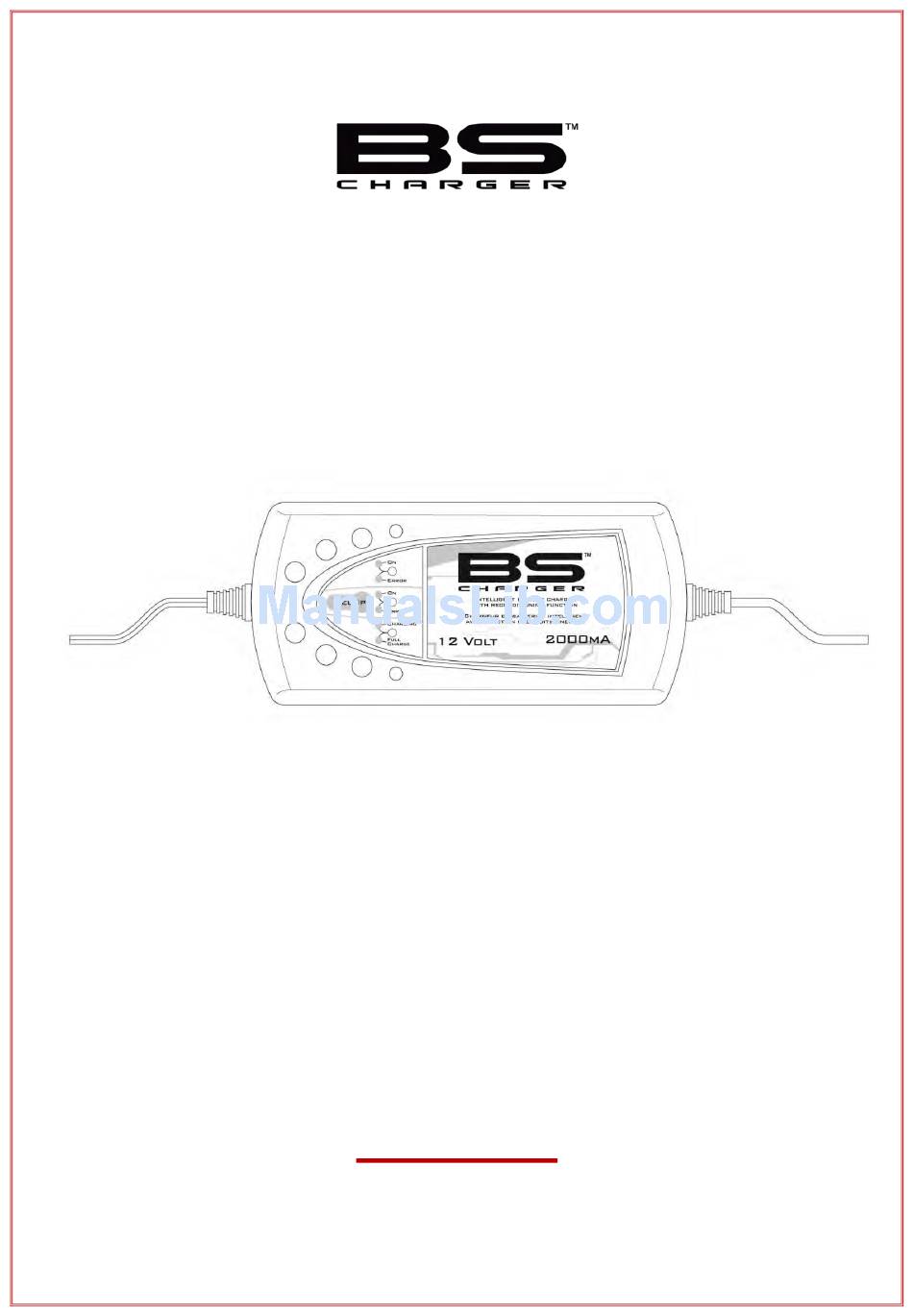

BS20

BATTERY CHARGER

For lead-acid batteries
User Manual and Guide to professional battery
charging for Starter and Deep Cycle batteries.
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR
12V BATTERY CHARGER: BS20
[ENGLISH]
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BS Charger BS20

Summary of Contents for BS Charger BS20

  • Page 1: Battery Charger

    BS20 BATTERY CHARGER For lead-acid batteries User Manual and Guide to professional battery charging for Starter and Deep Cycle batteries. THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR 12V BATTERY CHARGER: BS20 [ENGLISH]...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please read this manual and follow the instructions carefully before using the charger WARNING  The charger is designed to charge 12V lead-acid batteries from 4Ah to 80Ah. However, charger can maintain batteries up to 120Ah.  We always recommend that you check the Battery Manufacturers specifications before using this charger ...

  • Page 3: Temperature & Safety Protection

    TEMPERATURE & SAFETY PROTECTION: The charger contains 4 safety protections:  INTERNAL OVERHEAT PROTECTION: The BS20 is built-in with overheat and overload electronic circuit. When the charger is overheated, the charger will shut down shortly. If temperature is decreased, the charger will resume to normal charging.

  • Page 4: Battery Types & Capacity

    2 feet with Trailer Connector + Ring Connector ENVIRONMENTAL CHARACTERISTICS:  Operating Temperature: 0 to 40° C  Storage Temperature: -10 to 80°C  Operating Humidity Range: 90% RH Max TECHNICAL SPECIFICATIONS: Part Number BS20 Type Smart Input Voltage Range 100-240Vac Input Frequency 50/60Hz...

  • Page 5: Charging Instructions

    CHARGING INSTRUCTIONS: STEP 1 - Pre Charge Check & Electrolyte Level Check  Check the Battery Electrolyte level (Not required on sealed & Maintenance Free Batteries). If necessary, remove the vent caps and add distilled water so the levels are halfway between the upper and lower fill lines.

  • Page 6: The Charging Process

    STEP 3 - Connect the battery charger to Mains Power (240Vac)  Connect the battery charger to a 240VAC Mains Powered socket.  The Charger will automatically start when AC power is connected and switched on. (Note: If the Fault Indicator LED illuminates Red, please check your connections as it’s likely that the Positive and Negative Leads are reversed.
  • Page 7  The‘Float Mode’also contains a special charging waveform, that pulses power into your batteries, and helps to peak the power into your battery.  MANUAL BATTERY RECOVERY MODE: All Led will light ON a second when A.C. Power is on. There are 4 stages: o 24 Hrs Battery Recovery Mode ...

  • Page 8: Troubleshooting

    LED STATUS INIDICATOR TABLE: Power LED Recovery LED Charging LED Status Descriptions Power LED (RED) AC Power is connected Flash Short Circuit or Polarity Reversed Recovery LED(YELLOW / RED) Yellow / Red Alternative Flash Battery Recovery mode is in progress. Battery Recovery Fail Charging LED (GREEN) Green...

  • Page 9: Maintenance

    - Output is short circuited - Check DC connection between Error RED - Reverse polarity connection to charger and battery and make sure Charger has LED is Battery they are not short circuiting. no DC output? Flashing. - Check that the crocodile clips haven’t fallen off the battery.
