Page 1: Battery Charger

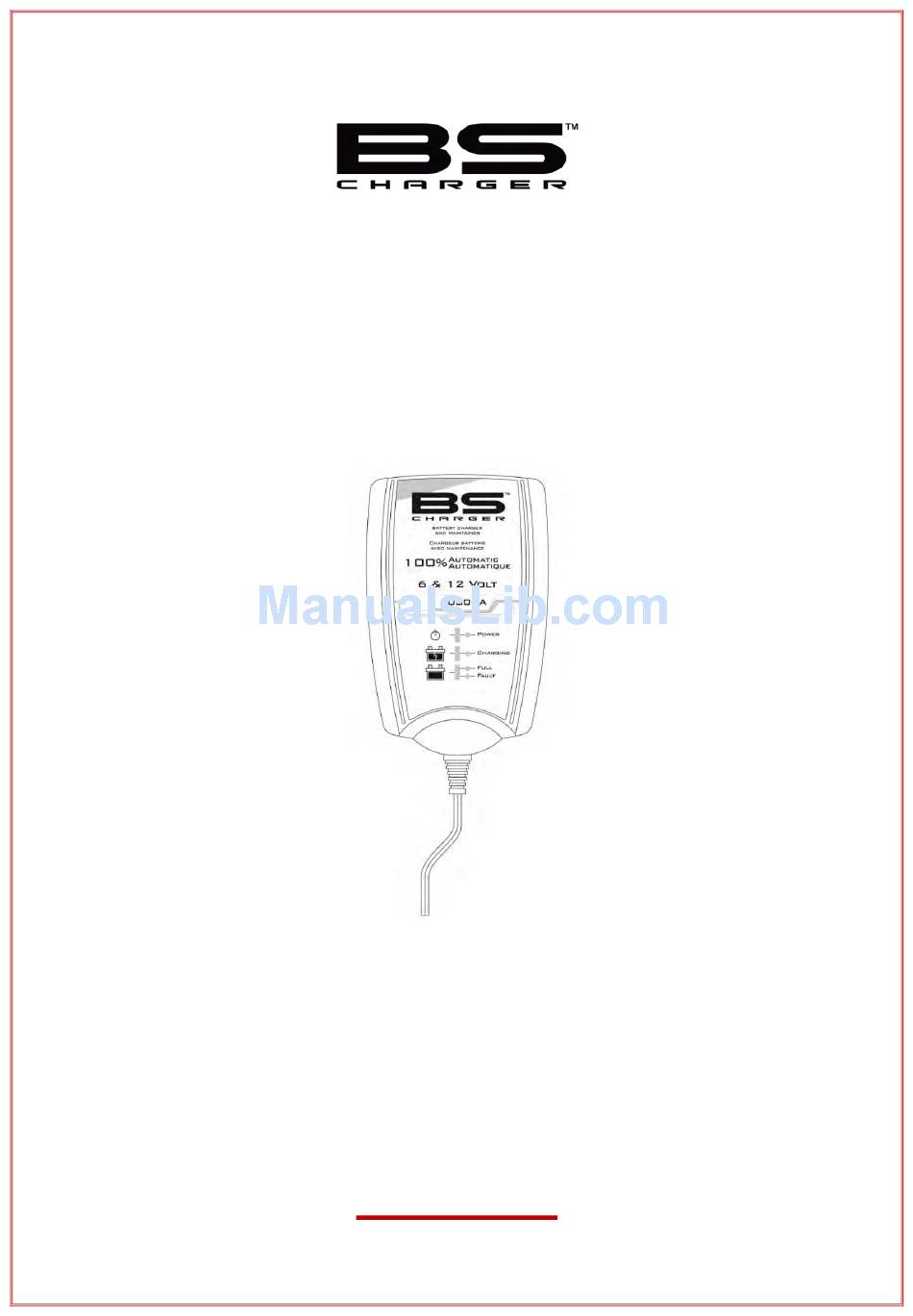

BA10 BATTERY CHARGER For lead-acid batteries User Manual and Guide to professional battery charging for Starter and Deep Cycle batteries. THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR 6V / 12V BATTERY CHARGER: BA10 [ENGLISH]... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read this manual and follow the instructions carefully before using the charger WARNING The charger is designed to charge 6V & 12V lead-acid batteries from 2Ah to 40Ah. However, charger can maintain batteries up to 60Ah. ... - Page 3 Voltage Output Select Switch: Select 6V or 12V output. Short circuit protection: The charger will automatically turn off when the output short circuit occurred and prevent any damage Reverse polarity protection : The charger can automatically shut off when the output polarity is reversed and without damage SAFETY &...
-
Page 4: Environmental Characteristics
Operating Temperature: 0 to 45° C Storage Temperature: -25 to 85°C Operating Humidity Range: 0 to 90% RH Cooling: Passive / Natural TECHNICAL SPECIFICATIONS: Part Number BA10 Type Automatic Input Voltage Range 100-240V Input Frequency 50/60Hz... - Page 5 STEP 2 - Connecting the Battery charger to your Battery If the Battery is out of the vehicle: o Connect the Red lead from the charger to the positive (+) battery terminal. o Connect the Black lead from the charger to the negative (-) battery terminal. ...
- Page 6 STEP 3 - Connect the battery charger to Mains Power (240Vac) Connect the battery charger to a 240VAC Mains Powered socket. Turn on the 240VAC Mains Power. The Charger will automatically start when AC power is connected and switched on. (Note: If the Fault Indicator LED illuminates Red, please check your connections as it’s likely that the Positive and Negative Leads are reversed.
-
Page 7: Trouble Shooting
Level 1 Charging Level 2,3 Charging Battery Reverse polarity connection A.C. Power OFF CHARGING CURVE (VOLTAGE): TROUBLE SHOOTING Types of Indication Possible Causes Suggested Solution Problems No Indicator - No AC power - Check AC connections and make Charger does not lights on sure Power Point is switched ON work?
