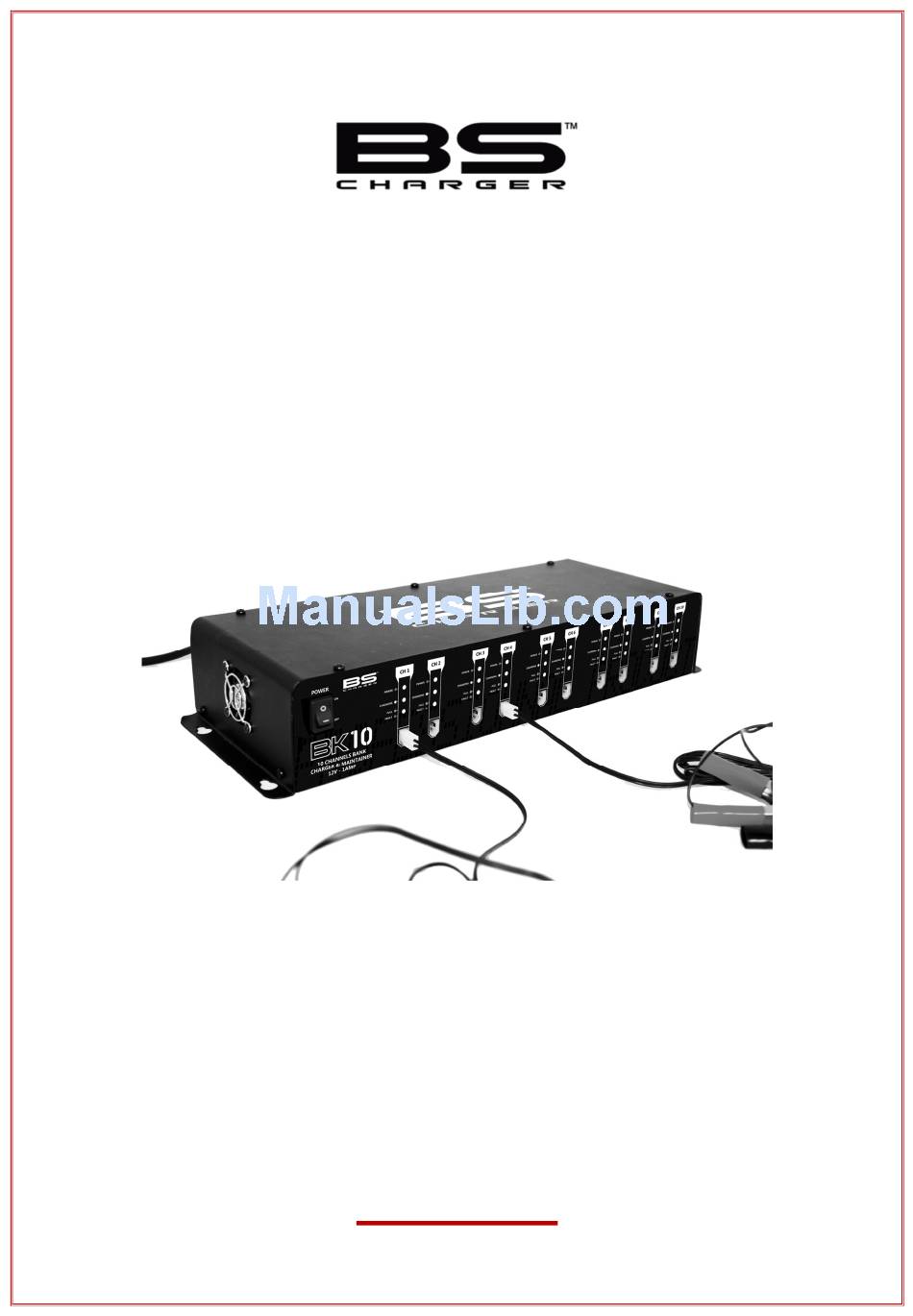

BK10
10 CHANNELS BANK CHARGER
For 12V lead-acid batteries
"DESIGNED FOR WORKSHOPS AND WAREHOUSES"
User Manual and Guide to professional battery
charging for Starter and Deep Cycle batteries.
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR
12V - 10 CHANNELS BANK CHARGER: BK10
[ENGLISH]
1
Advertisement
Table of Contents
Related Manuals for BS Charger BK10
Summary of Contents for BS Charger BK10
- Page 1 For 12V lead-acid batteries “DESIGNED FOR WORKSHOPS AND WAREHOUSES” User Manual and Guide to professional battery charging for Starter and Deep Cycle batteries. THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR 12V - 10 CHANNELS BANK CHARGER: BK10 [ENGLISH]...
-
Page 2: Important Safety Instructions
MAIN FEATURES: 10 CHANNELS BANK CHARGER • Easy to Use: BK10 is easy to operate and requires no technical experience. • Charge & Maintain - Automatic Charge: On power up, the charger will automatically go to charging system, then could be left unattended and never overcharge your batteries. -
Page 3: Battery Types & Capacity
• Short circuit protection: BK10 will automatically turn off when the output short circuit occurred and prevent any damage • Reverse polarity protection : BK10 can automatically shut off when the output polarity is reversed and without damage SAFETY & TEMPERATURE FEATURES: •... -
Page 4: Technical Specifications
• Operating Temperature: 0 to 40° C • Storage Temperature: -25 to 85°C • Operating Humidity Range: 0 to 90% RH • Cooling: By FAN forced air TECHNICAL SPECIFICATIONS: Part Number BK10 Type Automatic Input Voltage Range 100-240V Input Frequency... -
Page 5: The Charging Process
(Note: If the Fault Indicator LED illuminates Red, please check your connections as it’s likely that the Positive and Negative Leads are reversed. Refer to Trouble Shooting Page for further information) THE CHARGING PROCESS: The charging stages are as follows: •... -
Page 6: Troubleshooting
TROUBLE SHOOTING: Types of Indication Possible Causes Suggested Solution Problems Charger does not - No AC power - Check AC connections and make Indicator sure Power Point is switched ON work? lights on - Output is short circuited - Check DC connection between Fault LED - Reverse polarity connection to charger and battery and make sure...
