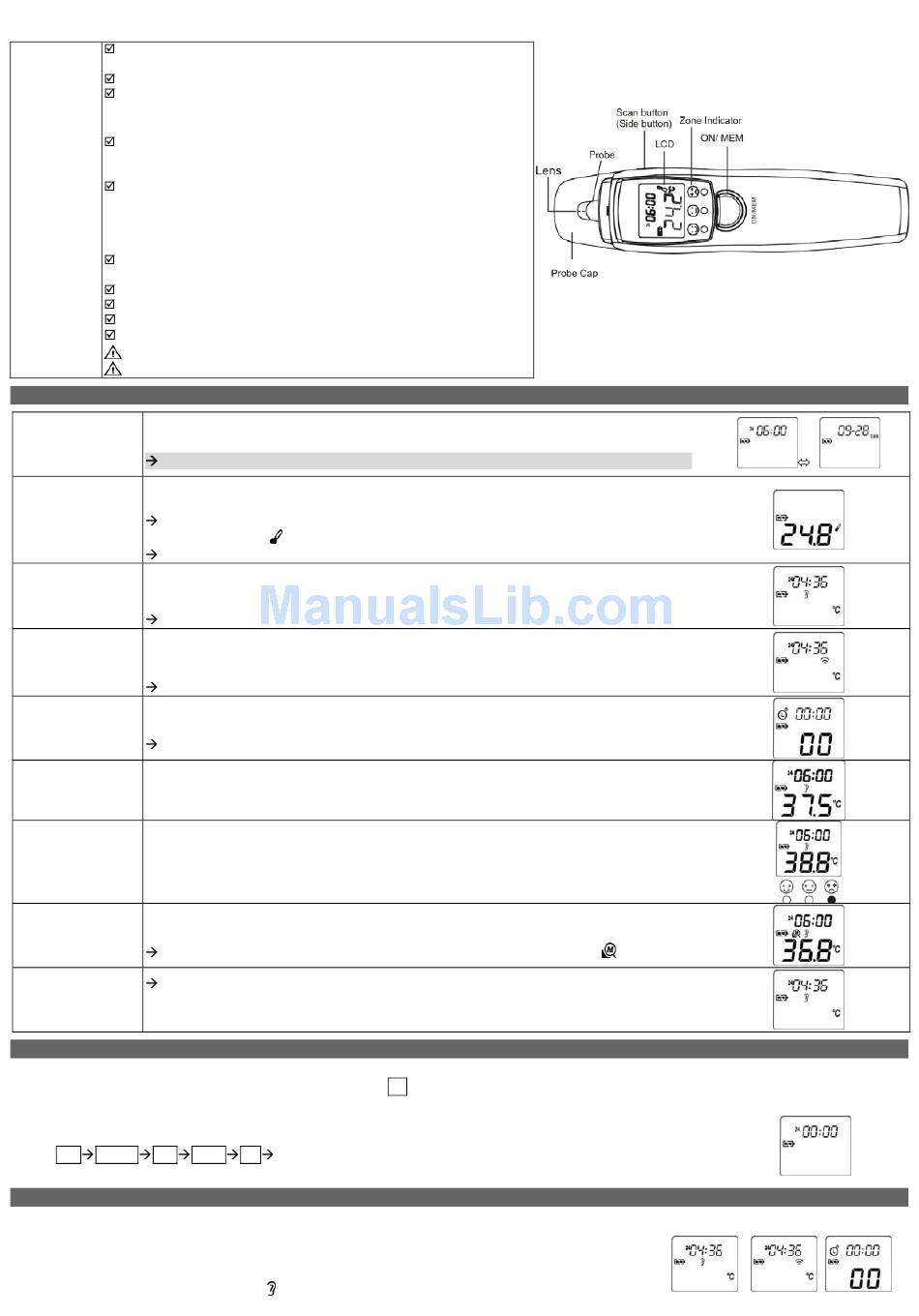

TH56Z Multi-function Infrared Ear Thermometer
Specifications
Temperature measurement range:
Ear mode: 34~42.2°C (93.2~108°F), Surface mode: -22~80°C (-7.6~176°F)
Operating temperature range: 10~40°C (50~104°F)
Storage temperature range: It should be stored at room temperature between
-20~+50°C, RH≦85%
Transportation temperature shall be less than 70°C, RH≦95%
Comply with ASTM E1965-98, EN12470-5:2003 Clinical thermometers-Part
5:Performance of infra-red ear thermometers(with maximum device),
IEC/EN60601-1-2(EMC), IEC/EN60601-1(Safety) standards.
Accuracy:
For ear mode: +/-0.2°C (0.4°F) within 35.5~42°C (95.9~107.6°F),
For surface mode: +/-0.3°C (0.5°F) within 22~42.2°C (71.6~108°F),
Fever alarm & Memory locations under "Ear mode" (with each measurement
date/time/mode icon)
3 color LED Fever Indicator
Real time clock, °C / °F Switch mode
Battery: one lithium cell battery (CR2032 *1pcs)
This thermometer converts the ear temperature to display its "oral equivalent."
There is no gender and age limitation for using infrared thermometer.
This is not an AP or APG product.

Functions

The real time clock will be recorded with the memory function and help you to recognize each

Real Time Clock

measurement result. (It includes the 12/24 Format_Hour_Minutes_Date.)
Please see the "Real time clock setting" section to learn how to setup the time in the first use.
Suitable ambient temperature is important for the baby and patient, the thermometer always help you
recognize the room temperature.

Room Temperature

Setting "Real time clock" first to enable this function. After power off, room temperature will be shown
on the screen with
Please see the "Use of the thermometer" section to learn how to get the correct room temperature.
The thermometer has been designed for practical use. It's not meant to replace a visit to the doctor.
Please also remember to compare the measurement result to your regular body temperature.

Ear Temperature

consult with doctor if you have health concerns.
Please see the "Use of the thermometer" section to learn how to measure the body temperature.
The surface mode shows the actual, unadjusted surface temperatures, which is different from the body
temperature. It can help you to monitor if the object temperature is suitable for the baby or patient, for

Surface Mode

example the baby's milk.
Please see the "Use of the thermometer" section to learn how to measure the object temperature.
The thermometer built the stopwatch function to help you to monitor the heartbeat since heartbeat is one

Stopwatch

of the healthy indexes for people.
Please see the "Use of the Stopwatch" section to learn how to measure the heartbeat result.
If thermometer detects a body temperature ≧37.5°C under ear mode, there will be a long beep sound

Fever Alarm

followed by three short beep sound to warn the user for potential fever.
Under ear mode, if thermometer detects a body temperature< 37.5°C, there will be " Green" light signal; if

Zone Indicator

temperature > = 37.5°C and < 38.0°C, there will be" Yellow" light signal; if temperature
> =38.0°C, there will be" Red" light signal.
There are total 9 sets memories for ear measurements. Each memory also records the measurement

Memory Locations

date/time/mode icon and site location..
When in power on, Press the "ON/MEM" button to see the temperature stored with
In "power off" mode (The LCD only shows the date, time and room temperature). Press and hold the
°C / °F Switch
"SCAN" button, then immediately press and release the "ON/MEM" button. After 3 seconds, icon "°C" will
be switched to icon "°F". (You may use the same way to switch back to "°C")

Real time clock setting

1.
Power on: Press the "ON/MEM" button. The thermometer is ready for use after hearing two beep sounds.
2.
Press and hold the "ON/MEM" button for 5sec. When you see the Set icon starts flashing, it indicates that you are in the setting screen.(see the following figure.)
3.
Press the "SCAN" button to make the "24" icon flash. This indicates that you are in the 12/24-hour setting screen. Press the "SCAN" button to set 12/24-hour Format
from "24"(24-hour) to "12"(12-hour).
4.
Press "ON/MEM" button to move the flashing in the sequence shown below to select our settings:
hour
minutes
year
5.
While the hour, minutes, year, month, day setting is flashing, use "SCAN" button to change it.

Use of the thermometer

1. Always make sure the probe is clean, and without damage.
2. Power on: Press "ON/MEM" button.(see figure 1)
3. Mode selection:
3.1 Ear mode: Press the "ON/MEM" button, the default mode of thermometer is ear mode. The thermometer is
ready for use after you see the
figure 1). In this mode, you can get the body temperature by ear measurement.
+/-0.3°C (0.5°F) for other range.
others +/-4% or +/-2°C (4°F) whichever is greater.
icon.
month
day leave the setting screen.
icon on the screen and hear two beep sounds (see
Please
icon.
Figure 1
Figure2
Figure 3
