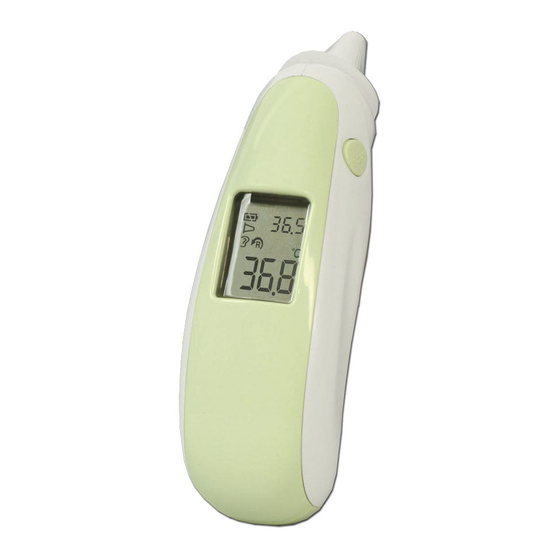

TH709L(E) Infrared Ear Thermometer Operating Instructions
Operating Instructions
Temperature taking
1. Proper installation of the probe cover ensures accurate
measurements.
Place the
Probe Cover
2. Keep the probe covers away from children
①
②
Power On
Taking Ear
Temperature
0 – 2 years
Measuring
Power Off
Automatically shut down after 1 minute pending to extend battery life.
a. The device must stay in stable ambient (room) temperature for 30 minutes before operating.
b. Before the measurement, please stay in a stable environment for 5mins and avoid the exercise, bath for 30mins.
c. It is recommended that you measure the same ear for 3 times. If the 3 measurements are different, select the highest
Attentions
temperature.
d. The thermometer has been designed for practical use. It's not meant to replace a visit to the doctor. Please also remember
to compare the measurement result to your regular body temperature. Please consult with doctor if you have health
concerns.
1. Place the probe cover on the probe cover fixer(inside
of the storage box). Make sure to place the
"Adhesive Side" of probe cover "Upward."
Align the probe with the center of the probe cover.
2. Insert the probe into the probe cover fixer (in the
storage box) until you feel a "click". That means the
probe cover has been connected firmly.
If the probe cover did not install well,
the LCD screen and can't take the ear temperature (will
hear 4 beep sounds without reading shown on the LCD
when measuring).
Please check the setting of the probe cover again.
Press
"ON/MEM" button (on the left side)
①
②
See the
icon on the LCD and hear two beep
sounds
Gently pull the ear back to straighten the ear canal and
snugly position the probe into the ear canal, aiming
towards the membrane of the eardrum to obtain an
accurate reading.
<For children under 2 years old>
Pull the ear straight back.
> > > >
2 years
<For children over 2 years old and adults>
Pull the ear straight up and back.
Press the "Scan" button for 1 second until you hear a
long beep sound. The measurement is completed. You
can read the result from LCD.
Press "Scan" button (on
Fever Alarm:
the right side)
If the thermometer detects a body temperature
3 7.5°C (99.5°F), three short beep sound will follow
≧
one long beep sound to warn the user for potential fever.
will flash on
Other Functions
Last Reading
Memory
Locations
(25 sets)
°C / °F Switch
Specifications
Temperature measurement range: 34~42.2°C (93.2~108°F)
Operating temperature range: 10~40°C (50~104°F)
Storage temperature range: It should be stored at room temperature between -20~+50°C , RH
Transportation temperature shall be less than 70°C, RH
Comply with ASTM E1965-98, EN12470-5:2003 Clinical thermometers-Part 5:Performance of infra-red ear thermometers
(with maximum device), IEC/EN60601-1-2(EMC), IEC/EN60601-1(Safety) standards.
Accuracy: +/-0.2°C (0.4°F) within 35.5~42°C (95.9~107.6°F), +/-0.3°C (0.5°F) for other range.
Fever alarm & Memory, °C / °F Switch function
Battery: one lithium cell battery (CR2032 *1pcs). Battery life is estimated at 3,000 readings. Enable normal use: 1 year
This thermometer converts the ear temperature to display its "oral equivalent."(according to the result of the clinical evaluation)
E:LED Backlight (optional)
LED Backlight will be automatically turned on after measurement, and automatically turned off after 5 seconds.
There is no gender and age limitation for using infrared thermometer.
This is not an AP or APG product.
After getting a new temperature reading, the last reading will be shown on the screen (at top right
corner) with the
icon.
When power on, Press the "ON/MEM" button to see the temperature records with
To change the LCD from °C to °F :
In "Power Off" mode, press and hold the "SCAN" button, then press the "ON/MEM" button for 3
seconds, icon "°C" will be switched to icon "°F". You can also use the same process to change the
LCD display from °F to °C.
≦
9 5%
≦
icon.
8 5%
