Summary of Contents for AJA HB-T-HDMI

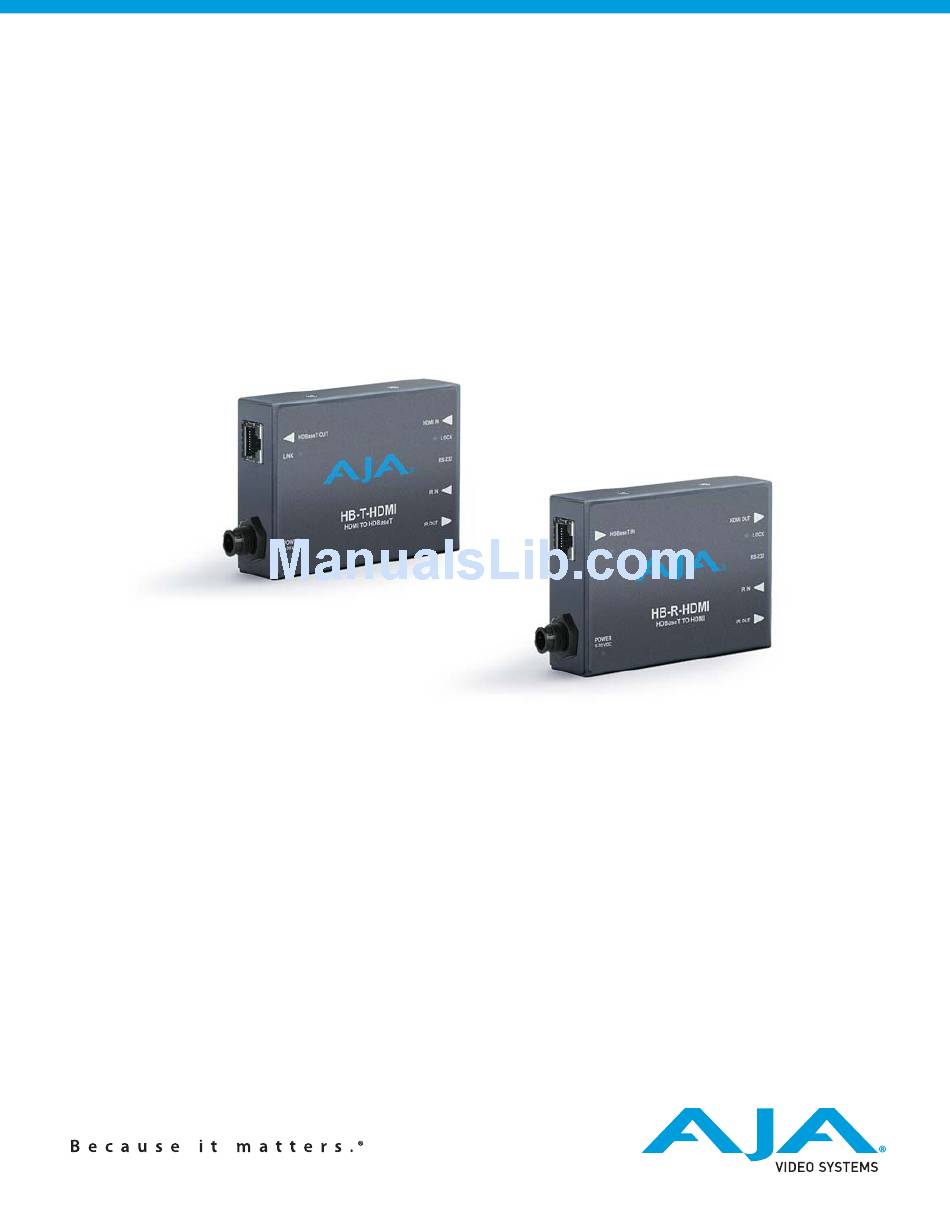

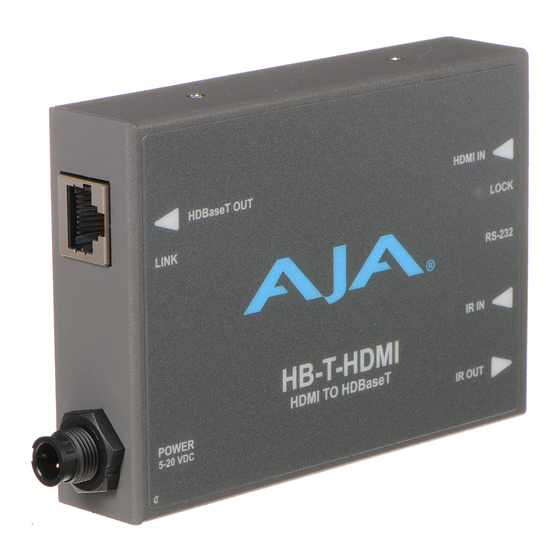

- Page 1 HB-T-HDMI and HB-R-HDMI HDMI to HDBaseT Mini Converter Installation & Operation Guide Version 1.0 Published: July 28, 2015...
-
Page 2: Table Of Contents
HB-T-HDMI & HB-R-HDMI Formats ........ - Page 3 Limited Warranty ..............20 HB-T-HDMI & HB-R-HDMI v1.0...
-
Page 4: Notices
AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™, Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™... -
Page 5: Chapter 1: Introduction
"Appendix A: Specifications on page 8" for a complete list of supported formats, frame rates, and CAT cable requirements. HB-T-HDMI and HB-R-HDMI support bi-directional IR and RS-232 for device control, making them ideal for applications such as: • Fixed installation AV •... -
Page 6: Block Diagram
Block Diagram Figure 1. HB-T-HDMI & HB-R-HDMI Converter, Simplified Block Diagrams Audio The HB-T-HDMI and HB-R-HDMI convert up to 8 embedded audio channels (4 stereo pairs) at 24-bit/48 KHz between HDMI and HDbaseT. I/O Connections Figure 2. HB-T-HDMI and HB-R-HDMI Converters... -
Page 7: Installation
Typically, HB-T-HDMI & HB-R-HDMI installation consists of the following steps: 1. Ensure the converters are disconnected from power 2. Connect the HDMI source signal to the HDMI input connector of the HB-T-HDMI and the transmission CAT cable to the HDbaseT output connector 3. -
Page 8: Appendix A: Specifications
Appendix A: Specifications HB-T-HDMI & HB-R-HDMI Formats Video Displays Table 2. HD/UHD/4K Video Resolutions and Performance Max. Cable Length Color Max. Bit W x H Frame Rate Sampling Depth Cat 5e/6 Cat 6a/7 1920 1080 < 30 fps 4:2:2 100 meters 100 meters 16-bit >30 fps... -
Page 9: Video Inputs
RS-232 Extension • 1x 1/8 inch TRS connector, Extends 2-way serial device control signals up to 115.2k baud RS-232 Cable The RS-232 pinout diagram provided below pertains to the AJA cable bundle provided as Option an optional purchase. DB9 Pinout This chart depicts the complete RS-232 pinout specification. -
Page 10: Ir Extension Input & Output Ports
• 2x RS-232 Cable – .35 meters (for both male and female DB9 connections) Physical Power • +5 to 20V DC regulated, 6 watts max • AJA external power supply model DWP-U-R1 (included): • 100-240V, 50/60Hz universal input Size • 4.6" x 2.4" x 1" (109 mm x78mm x 25mm.) -
Page 11: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. HB-T-HDMI & HB-R-HDMI Mini-Converter www.aja.com... -
Page 12: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. HB-T-HDMI & HB-R-HDMI Mini-Converter www.aja.com... -
Page 13: Recycling Notice
Inspection (BSMI) CNS 13438, Class A. Warning! This is a Class A product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take appropriate measures. HB-T-HDMI & HB-R-HDMI Mini-Converter www.aja.com... -
Page 14: Japanese Compliance Statement
Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos na documentação. Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi nella documentazione. HB-T-HDMI & HB-R-HDMI Mini-Converter www.aja.com... - Page 15 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. HB-T-HDMI & HB-R-HDMI Mini-Converter www.aja.com...
- Page 16 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. HB-T-HDMI & HB-R-HDMI Mini-Converter www.aja.com...
- Page 17 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. HB-T-HDMI & HB-R-HDMI Mini-Converter www.aja.com...
- Page 18 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 19 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HB-T-HDMI & HB-R-HDMI Mini-Converter www.aja.com...
-
Page 20: Warranty Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located.
