1 Set the Tunnel Type to L2TP over IPSec.
2 Enter a descriptive name for the tunnel in the Tunnel Name field.
3 Enter the User name and Password.
4 Enter the Idle Timeout value.
5 Set the L2TP Type Setting to L2TP Server, or L2TP Client.
if you set the type as L2TP Client, then set the Local Type Setting to
■
Network or Host, then enter the Remote Server IP. Check the Auto
reconnect box, if you want to auto-reconnect after disconnection.
if the L2TP Type Setting is set to L2TP Server, go to step 6.
■
6 Check the box to enable the Remote Network Setting, and then enter the
Remote Network Address, and Remote Subnet Mask information.
7 When the L2TP Type Setting is set to L2TP Client, you would then need to
enter the Pre-shared Key information.
8 Click Apply.
Check the Enable PPTP box, configuration details screen appears,
see Figure 99.

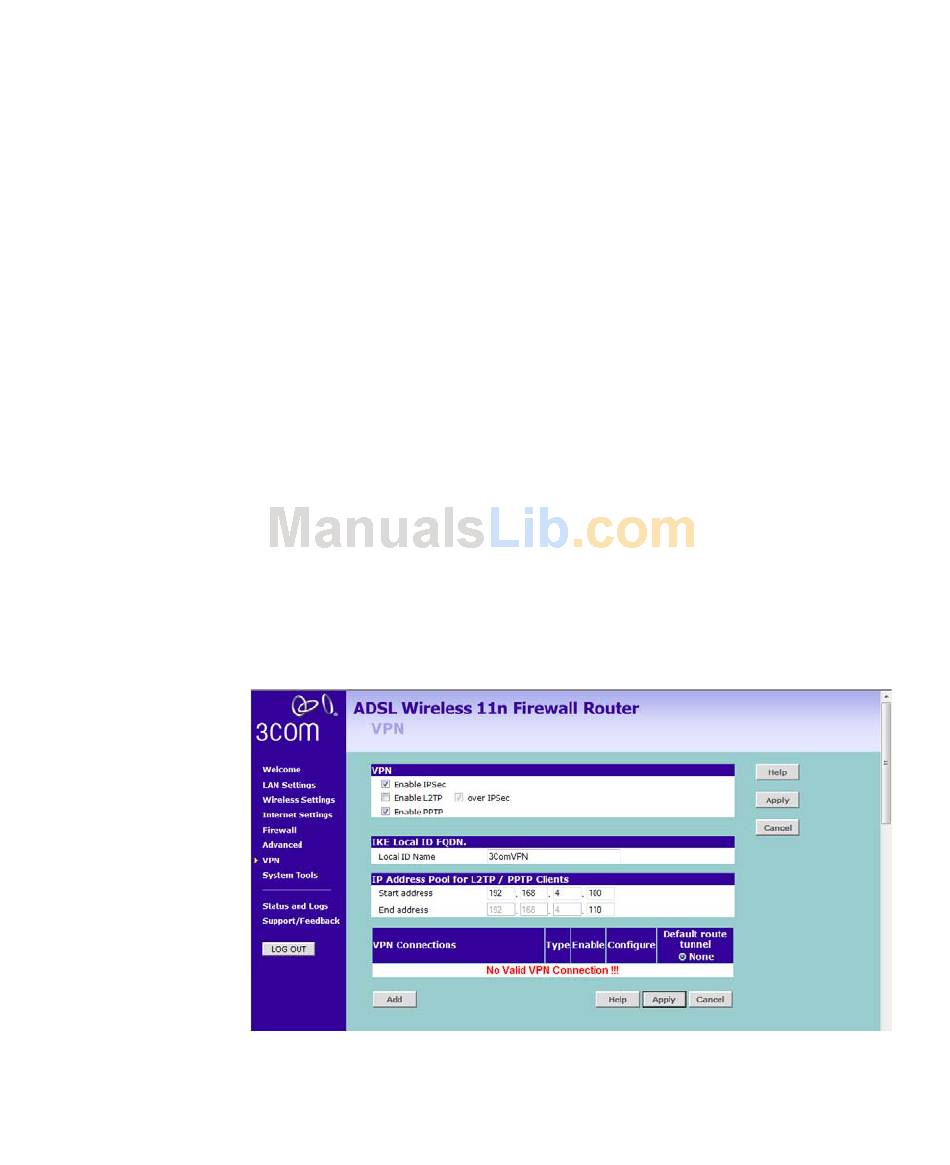

Figure 99 Enable PPTP Screen
1 Define the IP Address Pool for PPTP clients, enter the start/end address.
2 Click Add to create a new entry, see Figure 100.
