Roberts R9905 User Manual

Roberts R9905 User Manual

3 band digital pll preset radio with clock/alarm
Hide thumbs
Table of Contents

Advertisement

Quick Links

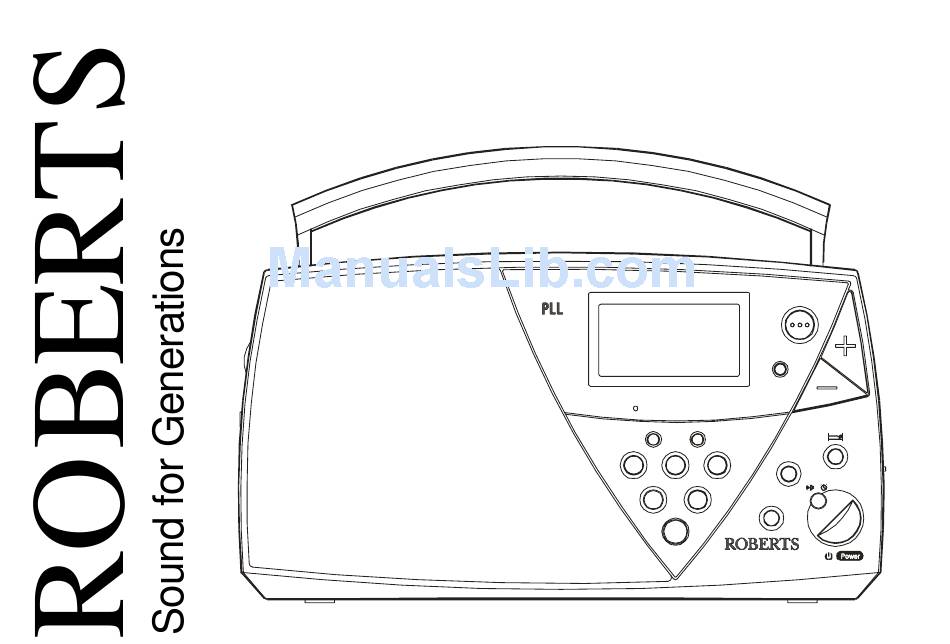

R9905
3 Band Digital PLL Preset Radio
With Clock/Alarm
F M 8 7 .5 - 1 0 8 M H z
M W 5 2 0 -1 7 1 0 k H z
L W 1 4 4 - 2 9 0 M H z
S n o o z e
DIGITAL
L ig h t
M a in s
T u n in g
U p
D o w n
M e m o
A la r m
1
2
3
4
5
M o d e
M e m o
R 9 9 0 5
P L L D ig ita l 3 B a n d R e c e iv e r
Please read this manual before use

Advertisement

Table of Contents
loading

Related Manuals for Roberts R9905

Summary of Contents for Roberts R9905

  • Page 1 R9905 3 Band Digital PLL Preset Radio With Clock/Alarm F M 8 7 .5 - 1 0 8 M H z M W 5 2 0 -1 7 1 0 k H z L W 1 4 4 - 2 9 0 M H z...

  • Page 2: Table Of Contents

    Contents Battery operation ..................................2 Mains operation ..................................2 Controls ....................................3-4 Display ....................................5 Setting the clock time ................................6 Setting the alarm time ................................6 Operating your radio - search tuning ............................7 Operating your radio - manual tuning ............................. 7 Presetting stations ..................................

  • Page 3: Battery Operation

    If the radio is not to be used for any extended period of time it is recommended that the batteries are removed from the radio. We would recommend for economy, that the R9905 is used on the mains whenever possible with battery operation for occasional or stand-by use only.

  • Page 4: Controls

    Controls (Front) S n o o z e F M 8 7 .5 - 1 0 8 M H z M W 5 2 0 -1 7 1 0 k H z L W 1 4 4 - 2 9 0 M H z DIGITAL L ig h t M a in s...

  • Page 5: Controls

    Controls (Left side) (Right side) V o lu m e 16. Volume control 17. Headphone socket 18. Mains socket 19. Telescopic aerial 20. Waveband switch 21. Key lock switch (on underside) If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 6: Display

    Display 1. Waveband indicators 5. Waveband indicators 2. Alarm symbol 6. Preset indicator 3. Sleep time symbol 7. Frequency units 4. Key lock indicator 8. Frequency/time digits...

  • Page 7: Setting The Clock Time

    Setting the clock time M o d e 1. When first connected to mains or batteries the display will show "0:00" 2. Hold down the Mode button until the display begins to flash. 3. Set the hours using the - button and the minutes using the + button. M o d e 4.

  • Page 8: Operating Your Radio - Search Tuning

    Operating your radio - search tuning 1. Switch on your radio by pressing the Power button. 2. Set the Waveband switch to the required waveband. The waveband selected will appear in the display. On FM fully extend the Telescopic aerial. On MW and LW rotate your radio for best reception. 3.

  • Page 9: Presetting Stations

    Pre-setting stations You may store up to five different stations on each of the three wavebands giving a total of 15 preset stations. 1. Switch on your radio using the Power button. 2. Select the desired waveband using the Waveband switch. T u n in g M e m o 3.

  • Page 10: Recalling A Preset Station

    Recalling a preset station 1. Switch on your radio using the Power button. 2. Select the desired waveband using the Waveband switch. 3. Press one of the Preset buttons to recall the station or press either the Memo Up or Down buttons to step through the available D o w n M e m o stations.

  • Page 11: Wake To Radio

    Wake to radio A la rm 1. Set the alarm time as previously described. 2. Tune to the required station and set the Volume control to the level at which you wish to wake. 3. Repeatedly press and release the Alarm button until the symbol appears in the display.

  • Page 12: Snooze Control

    Snooze control S n o o z e 1. The radio or buzzer alarm can be silenced for 5 minutes by pressing the Snooze button. This sequence can be repeated during the 90 minute alarm period. Sleep timer The radio can be set to turn off after a preset time has elapsed. 1.

  • Page 13: Headphones

    Headphones 1. A Headphone Socket (3.5mm) located on the left hand end of your radio is provided for use with either headphones or an earpiece. Inserting the headphone plug automatically mutes the internal loud- speaker. V o l u m e General Do not allow this radio to be exposed to water, steam or sand.

  • Page 14: Specifications

    Aerial System FM Telescopic aerial Built-in Ferrite aerial Frequency Coverage 87.5-108MHz Built-in Ferrite aerial 522- 1620kHz 144- 281kHz ROBERTS RADIO LIMITED PO BOX 130 MEXBOROUGH SOUTH YORKSHIRE S64 8YT The Company reserves the right to amend the specification without notice.

  • Page 15: Guarantee

    In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services department at the address shown below before taking further action.
  • Page 16 ROBERTS RADIO TECHNICAL SERVICES DEPARTMENT 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline:- 020 8758 0338 (Mon-Fri) Issue 1...
