Summary of Contents for Roberts R9941

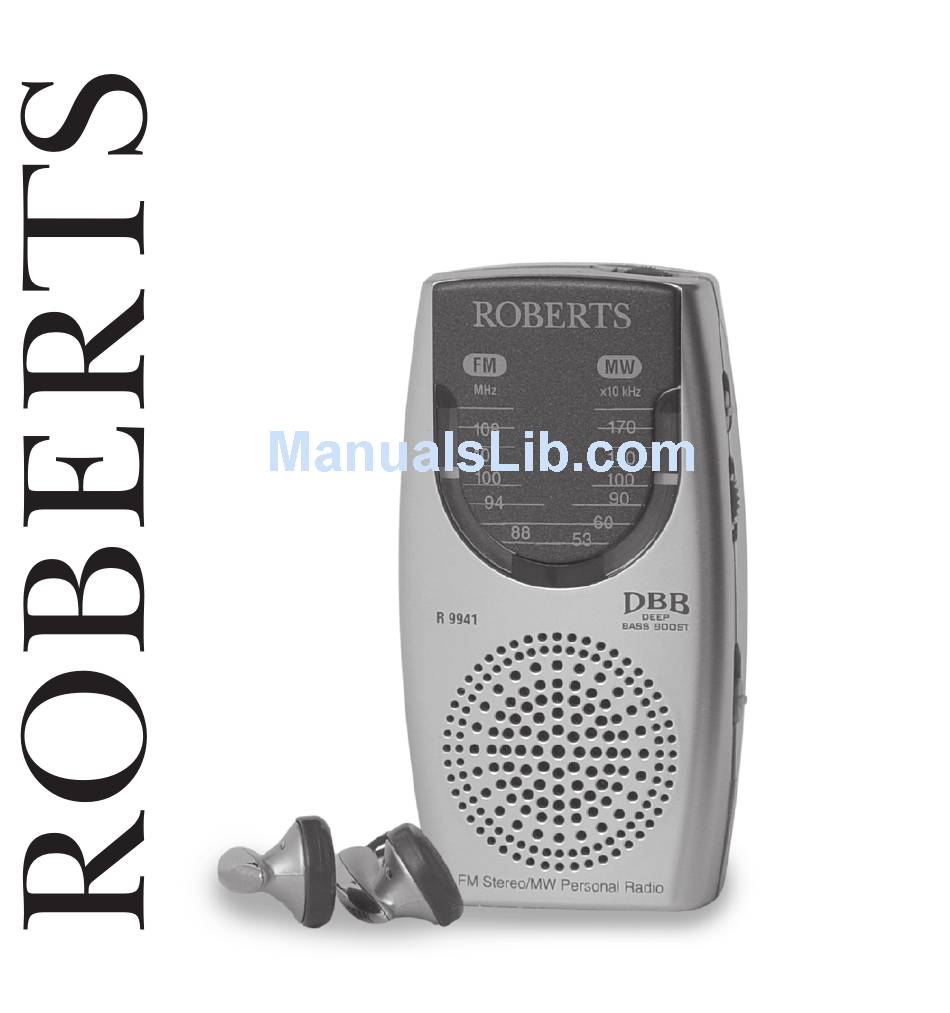

- Page 1 R9941 FM Stereo/MW Personal Radio Operating Instructions...
-
Page 2: Table Of Contents
Contents Contents ..................1 Controls ................... 2 Battery ..................... 3 Aerials ..................... 5 Loudspeaker On/Off switch and earphones ........5 Operating your radio - FM ............... 7 Operating your radio - Medium wave ..........9 Belt clip and neck strap ..............11 General ................... -
Page 3: Controls
Controls 5. Tuning control 1. Stereo/Mono/Speaker switch 6. Tuning scale 2. Earphone socket 3. Volume control 7. On/Off/DBB switch 8. Battery compartment (on rear) 4. Waveband switch If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) -
Page 4: Battery
Battery 1. Open the battery cover located on the rear of the your radio by sliding it in the direction shown by the arrow. 2. Insert one LR03 (AAA) size battery into the compartment. Ensure that battery is inserted in accordance with the diagram shown on the rear of your radio. - Page 5 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
-
Page 6: Aerials
Aerials The lead connecting earphones to your radio acts as an FM aerial when plugged into the earphone socket. The lead should be extended as much as possible to increase FM reception. There is a separate directional aerial built into the radio for AM reception. To achieve the best MW reception, it may be necessary to rotate the radio. - Page 7 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
-
Page 8: Operating Your Radio Fm
Operating your radio FM 1. Switch on your radio by sliding the On/Off/DBB switch to the ‘On ‘position.. 2. Slide the Waveband switch to the ‘FM’ position. 3. Adjust the Volume control until a sound is heard. 4. Rotate the Tuning control to select the desired station. On FM the Tuning scale is marked in Megahertz (MHz). - Page 9 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
-
Page 10: Operating Your Radio - Medium Wave
Operating your radio MW 1. Switch on your radio by sliding the On/Off/DBB switch to the ‘On ‘position.. 2. Slide the Waveband switch to the ‘MW’ position. 3. Adjust the Volume control until a sound is heard. 4. Rotate the Tuning control to select the desired station. On FM the Tuning scale is marked in Kilohertz (kHz). - Page 11 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
-
Page 12: Belt Clip And Neck Strap
Belt clip and neck strap 1. A belt clip on the rear of your radio is provided to enable your radio to be clipped onto a belt 2. In addition to the belt clip a neck strap is also provided to enable your radio to be worn around your neck. -
Page 13: General
General Do not allow this unit to be exposed to dripping or splashing. Do not leave your radio where excessive heat could cause damage such as in a parked car where the heat from the sun can build up even though the outside temperature may not seem too high. -
Page 14: Specification
Specifications Battery 1 x LR03 (AAA size) Battery Life Approx. 15hrs using alkaline battery Frequency coverage MW 530 - 1710kHz FM 87.5 - 108MHz Semiconductors 3 Integrated circuits 1 FET Output Power 2mW via earphones 40mW via loudspeaker Earphone Jack 3.5mm dia (Stereo) The company reserves the right to amend the specification without notice... -
Page 15: Guarantee
In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual before taking further action. - Page 16 ROBERTS RADIO TECHNICAL SERVICES 97-99 WORTON ROAD ISLEWORTH MIDDLESEX TW7 6EG Issue 1...
