Summary of Contents for Roberts R9944

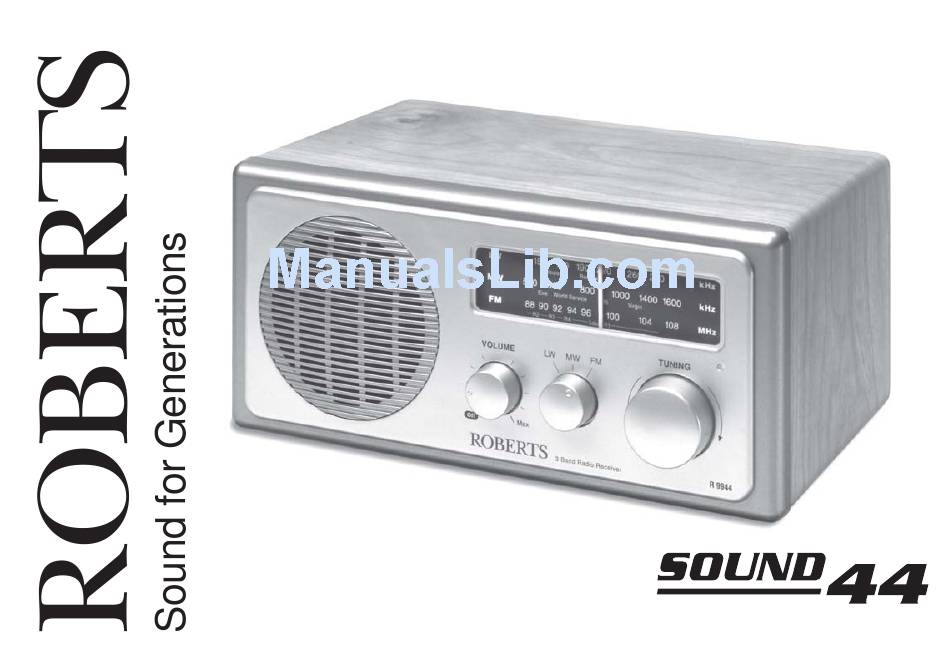

- Page 1 R9944 3 Band Mains Table Radio Please read this manual before use...
-
Page 2: Table Of Contents
Contents Important Information ................................1 Controls ....................................2-3 Mains Operation ..................................4 Operating your radio - FM ............................... 5 Operating your radio - AM (Medium and Long wave) ......................6 Headphone, Auxiliary and Record Sockets ........................... 7 External DC in socket ................................7 Specifications .................................. -
Page 3: Controls
Controls (Front) 1. Loudspeaker 5. Tuning control 2. Dial scale 6. Waveband switch 3. Dial pointer 7. On/Off and Volume control 4. Tuning indicator If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) - Page 4 Controls (Rear) 8. External FM antenna socket 12. Headphone socket 9. External AM antenna terminals 13. Record/Line out socket 10. Mains socket 14. Auxiliary/Line in socket 11. External DC input socket 15. FM Antenna switch...
-
Page 5: Mains Operation
Mains operation 1. Place your radio on a flat surface. 2. Plug the mains lead into the Mains socket located on the rear of your radio ensuring that the plug is pushed fully into the socket. 3. Plug the other end of the mains lead into a wall socket and switch on the wall socket. -
Page 6: Operating Your Radio Fm
Operating your radio FM 1. Switch on your radio by rotating the Volume control until a click is heard. 2. Set the Waveband switch to the FM position. 3. Adjust the Volume control until a hissing sound is heard. 4. Rotate the Tuning control to select the desired station. The Tuning indicator will light when the station is correctly tuned. -
Page 7: Operating Your Radio Am (Medium And Long Wave)
Operating your radio AM (Medium and Long wave) 1. Switch on your radio by rotating the Volume control until a click is heard. 2. Set the Waveband switch to the MW or LW position. 3. Adjust the Volume control until a hissing sound is heard. 4. -
Page 8: Headphone, Auxiliary And Record Sockets
Headphone, Auxiliary and Record sockets 1. The Headphone Socket (3.5mm) located on the rear of your radio is for use with either headphones or an earpiece. Inserting the headphone plug automatically mutes the internal loudspeaker. 2. The Record/Line out socket on the rear of your radio is for use with a tape recorder/mini disc or to allow connection to line input of a Hi Fi system. -
Page 9: Specifications
Specifications Circuit Features Power Requirements Loudspeaker 75mm 8ohms Mains AC 230 volts, 50Hz only Output Power 7W into 8ohms 12V DC @ 1Amp centre pin positive Headphone socket 3.5mm dia mono 5mW+5mW output Auxiliary/ Line Input socket 3.5mm dia sensitivity 150mV @47kohms Record out socket 3.5mm dia output impedance 2.2kohms Frequency Coverage... -
Page 10: Mains Supply
Mains supply The R9944 will operate from a supply of AC 230 volts, 50Hz only. The wire coloured BLUE must be connected to the terminal marked N or coloured BLACK. DO NOT cut off the mains plug from this equipment. If the plug... -
Page 11: Guarantee
In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased please contact Roberts Radio Technical Services department at the address shown on the rear of this manual before taking further action. - Page 12 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline:- 020 8758 0338 (Mon-Fri) Issue 1...
