Trane XL20i 4TTZ0024A1 Product Data

Split system cooling xl20i 4ttz0024, 036, 048 & 060 with comfortlink 2, 3, 4 & 5 tons.
Hide thumbs

Advertisement

Split System
Cooling
XL20i
4TTZ0024, 036, 048 & 060
with ComfortLink™ II and Charge Assist™
2, 3, 4 & 5 Tons
PUB. NO. 22-1825-09

Advertisement

COMING SOON

   Related Manuals for Trane XL20i 4TTZ0024A1

   Summary of Contents for Trane XL20i 4TTZ0024A1

  • Page 1: Product Data

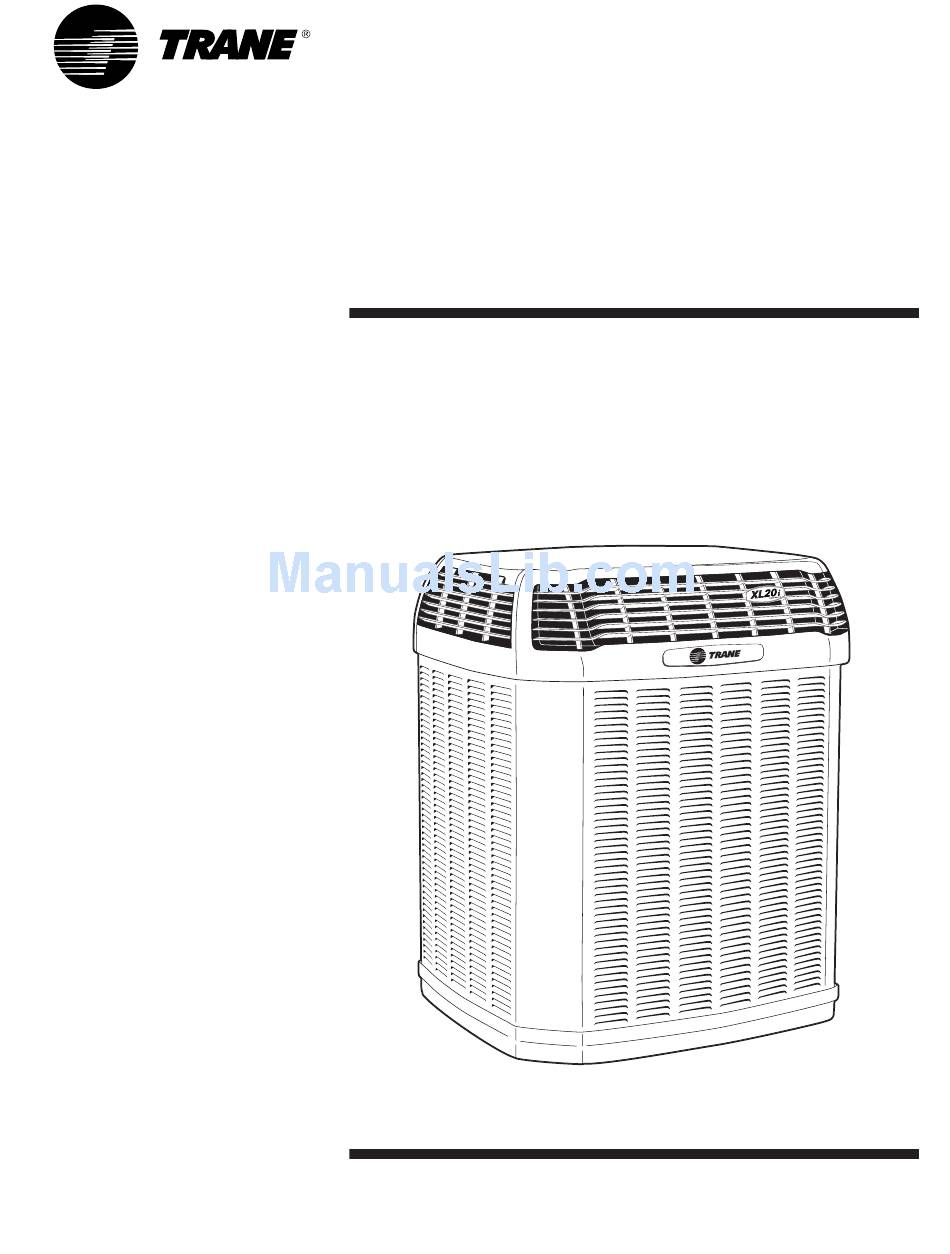

    Split System Cooling Product Data XL20i 4TTZ0024, 036, 048 & 060 with ComfortLink™ II and Charge Assist™ 2, 3, 4 & 5 Tons PUB. NO. 22-1825-09...

  • Page 2: Features And Benefits

    • CHARGE ASSIST™ fast/accurate charging every time • Glossy corrosion resistant finish • Internal compressor high/low pressure & temperature protection • Start kit standard • 50% or 100% capacity modulation • Compressor sump heat • Electronic compressor control © 2012 Trane 22-1825-09...

  • Page 3: Table Of Contents

    Contents Features and Benefits General Data Product Specifications A-weighted Sound Power Level [dB(A)] Accessory Description and Usage ARI Standard Capacity Rating Conditions Model Nomenclature Electrical Data Dimensions Mechanical Specification Options 22-1825-09...

  • Page 4: General Data

    General Data Product Specifications Model No. 1 4TTZ0024A1 4TTZ0036B1 4TTZ0048B1 4TTZ0060A1 Electrical Data V/Ph/Hz 2 200/230/1/60 208/230/1/60 200/230/1/60 200/230/1/60 Min Cir Ampacity Max Fuse Size (Amps) Compressors 2 - CLIMATUFF 2 - CLIMATUFF 2 - CLIMATUFF 2 - CLIMATUFF ® ®...

  • Page 5: Accessory Description And Usage

    General Data Accessory Description and Usage AHRI Standard Capacity Rating Conditions AHRI STANDARD 210/240 RATING CONDITIONS — 24 Volt Wiring Harness — Used to wire a communicating (A) Cooling 80°F DB, 67°F WB air entering indoor coil, outdoor unit to an existing 24 Volt indoor section. 95°F DB air entering outdoor coil.

  • Page 6: Model Nomenclature

    Refrigerant Type Brand T = Better 2 = R-22 G = Good 4 = R-410A Product Type TRANE A = Air Handler Product Type Convertability W = Split Heat Pump M = Multi-poise 4-way F = Upflow Front Return, 3-way...

  • Page 7: Electrical Data

    Electrical Data Schematic Diagrams (SEE LEGEND) 4TTZ0024, 4TTZ0036, 4TTZ0048, 4TTZ0060 22-1825-09...

  • Page 8

    Electrical Data Schematic Diagrams (SEE LEGEND) 4TTZ0024, 4TTZ0036, 4TTZ0048, 4TTZ0060 Printed from D155834P01 Rev 00 22-1825-09...

  • Page 9

    Electrical Data Schematic Diagrams LEGEND SYMBOLS 22-1825-09...

  • Page 10: Dimensions

    Dimensions 4TTZ0 Outline Drawing Note: All dimensions are in MM (Inches). MODELS BASE 4TTZ0024A 1369 (53 7/8) 946 (37-1/4) 870 (34-1/4) 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 1035 (40 3/4) 4TTZ0036B 4TTZ0048B 1369 (53 7/8) 946 (37-1/4) 870 (34-1/4) 152 (6) 98 (3-7/8) 219 (8-5/8)

  • Page 11: Mechanical Specification Options

    Mechanical Specification Options General Compressor The 4TTZ0 is fully charged from the fac- Two Climatuff compressors deliver ® tory for matched indoor section and up 50% or 100% capacity modulation and to 15 feet of piping. This unit is designed feature internal over temperature and to operate at outdoor ambient tempera- pressure protection and total dipped...

  • Page 12

    04/12 Trane Trane has a policy of continuous product and product data improvement and it reserves the right to change www.trane.com design and specifications without notice.
