Trane XL 15i Product Data

Trane XL 15i Product Data

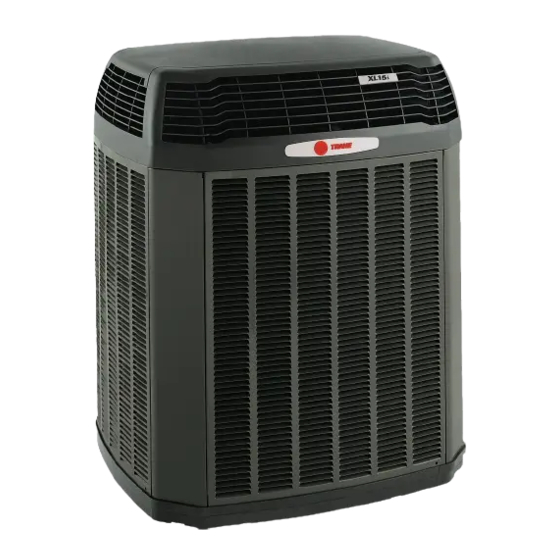

Split system heat pump

Advertisement

Split System

Heat Pump

Product Data

XL 15i
4TWX5
1½ – 5 Tons
PUB. NO. 22-1800-15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL 15i and is the answer not in the manual?

Questions and answers

Boyd Wade Clark
March 15, 2025

Need price for a replacement cover top for Trane XL15i

Summary of Contents for Trane XL 15i

  • Page 1: Heat Pump

    Split System Heat Pump Product Data XL 15i 4TWX5 1½ – 5 Tons PUB. NO. 22-1800-15...
  • Page 2: Features And Benefits

    Features and Benefits • Climatuff • Demand Defrost Control with diagnos- ® compressor tics • Efficiency up to 16.25 SEER and 9.7 • High pressure switch HSPF • All aluminum Spine Fin™ coil • 018–036 ship with start kit • WeatherGuard™ II top shields unit •...
  • Page 3: Table Of Contents

    Contents Features and Benefits General Data Product Specifications A-weighted Sound Power Level [dB(A)] Accessory Description and Usage AHRI Standard Capacity Rating Conditions Model Nomenclature Electrical Data Dimensions Mechanical Specification Options 22-1800-15...
  • Page 4: General Data

    General Data Product Specifications Model No. 1 4TWX5018B1 4TWX5024B1 4TWX5030B1 4TWX5036B1 Electrical Data V/Ph/Hz 2 208/230/1/60 200/230/1/60 208/230/1/60 208/230/1/60 Min Cir Ampacity Max Fuse Size (Amps) Compressor CLIMATUFF CLIMATUFF CLIMATUFF CLIMATUFF ® ® ® ® RL Amps - LR Amps 6.4 - 38.6 8.3 - 58 11.3 - 68.2...
  • Page 5: Accessory Description And Usage

    General Data Product Specifications Model No. 1 4TWX5042B1 4TWX5049E1 4TWX5061G1 Electrical Data V/Ph/Hz 2 208/230/1/60 208/230/1/60 208/230/1/60 Min Cir Ampacity Max Fuse Size (Amps) Compressor CLIMATUFF - SCROLL CLIMATUFF - SCROLL CLIMATUFF - SCROLL ® ® ® RL Amps - LR Amps 16.7 - 112 21.8 - 117 26.4 - 134...
  • Page 6: Model Nomenclature

    Minor Design Modifications Minor Design Change Unit Parts Identifier Service Digit – Not Orderable NOTE: There will be a phase-in of new model numbers for new air handlers over next 2 years. *Shipped with R-22 FCCV © 2012 Trane 22-1800-15...
  • Page 7: Electrical Data

    Electrical Data Schematic Diagrams (SEE LEGEND) 4TWX5018B PRINTED FROM D156994P02 22-1800-15...
  • Page 8 Electrical Data Schematic Diagrams (SEE LEGEND) 4TWX5024B PRINTED FROM D156994P02 © 2012 Trane 22-1800-15...
  • Page 9 Electrical Data Schematic Diagrams (SEE LEGEND) 4TWX5030B PRINTED FROM D156994P02 22-1800-15...
  • Page 10 Electrical Data Schematic Diagrams (SEE LEGEND) 4TWX5036B PRINTED FROM D156994P02 22-1800-15...
  • Page 11 Electrical Data Schematic Diagrams (SEE LEGEND) 4TWX5042B TDR relay cycles sump heat off during compressor operation and delays ener- gizing the sump heat for 30 mins after “Y” call is removed. PRINTED FROM D156131P03 22-1800-15...
  • Page 12 Electrical Data Schematic Diagrams (SEE LEGEND) 4TWX5049E TDR relay cycles sump heat off dur- ing compressor operation and delays energizing the sump heat for 30 mins after “Y” call is removed. PRINTED FROM D157471P02 22-1800-15...
  • Page 13 Electrical Data Schematic Diagrams (SEE LEGEND) 4TWX5061G TDR relay cycles sump heat off dur- ing compressor operation and delays energizing the sump heat for 30 mins after “Y” call is removed. PRINTED FROM D157473P02 22-1800-15...
  • Page 14: Dimensions

    Dimensions 4TWX5 Outline Drawing NOTE: ALL DIMENSIONS ARE IN MM (INCHES) MODELS BASE FIG. 4TWX5018B 933 (36-3/4) 829 (32-5/8) 756 (29-3/4) 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20) 4TWX5024B 1016 (40) 829 (32-5/8) 756 (29-3/4) 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8)
  • Page 15: Mechanical Specification Options

    Mechanical Specification Options General Condenser Coil The 4TWX5 is fully charged from the The outdoor coil provides low airflow factory for up to 15 feet of piping. This resistance and efficient heat transfer. unit is designed to operate at outdoor The coil is protected on all four sides by ambient temperatures as high as 115°F.
  • Page 16 Literature Order Number File Number Supersedes Stocking Location 12/12 Trane www.trane.com Trane has a policy of continuous product and product data improvement and it reserves the right to change design and specifications without notice.
