ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service
information pack upon completion of work.
These instructions do not cover all variations in
systems nor provide for every possible contingency
to be met in connection with installation. All phases
of this installation must comply with NATIONAL,
STATE AND LOCAL CODES. Should further information
be desired or should particular problems arise which are
not covered sufficiently for the purchaser's purposes, the
matter should be referred to your installing dealer or local
distributor.
A. GenerAl
WARNING
!
This information is intended for use by individuals pos ses­
s ing adequate backgrounds of electrical and mechanical
experience. Any attempt to repair a central air condition ing
product may result in personal injury and or property damage.
The manufacturer or seller cannot be respon sible for the
interpretation of this information, nor can it assume any liability
in connection with its use.
NOTICE:
Trane has always recommended installing Trane
approved matched indoor and outdoor systems.
The benefits of installing approved matched systems
are maximum efficiency, optimum performance and
best overall system reliability.
WARNING
!
These units use r­410A refrigerant which operates at 50 to 70%
higher pressures than r­22. Use only r­410A approved service
equipment. refrigerant cylinders are painted a "rose" color to
indicate the type of refrigerant and may contain a "dip" tube
to allow for charging of liquid refrigerant into the system. All
r­410A systems use a POe oil that readily absorbs moisture from
the atmosphere. To limit this "hygroscopic" action, the system
should remain sealed whenever possible. If a system has been
open to the atmosphere for more than 4 hours, the compressor
oil must be replaced. never break a vacuum with air and always
change the driers when opening the system for component
replacement. For specific handling concerns with R-410A and
POE oil, reference Retrofit Bulletin
SSC­APG011­en.
Check for transportation damage after unit is uncrated.
Report promptly, to the carrier, any damage found to the
unit.
To determine the electrical power requirements of the unit,
refer to the nameplate of the unit. The electrical power
available must agree with that listed on the nameplate.

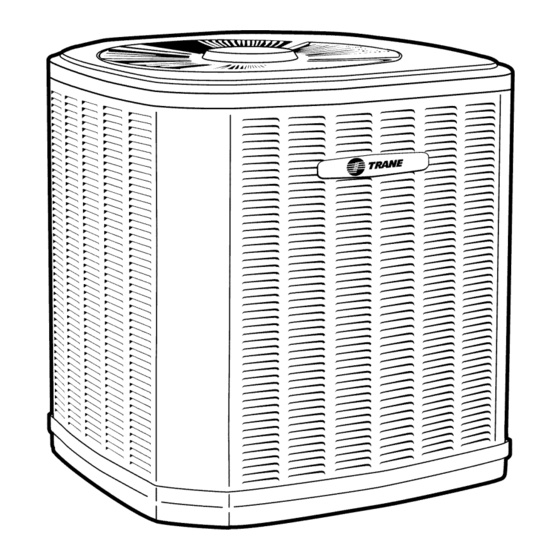

Installer's Guide
Condensing Units
4TTr3
UNIT CONTAINS R-410A REFRIGERANT!
R-410A OPERATING PRESSURE EXCEEDS THE
LIMIT OF R-22. PROPER SERVICE EQUIPMENT IS
REQUIRED. FAILURE TO USE PROPER SERVICE
TOOLS MAY RESULT IN EQUIPMENT DAMAGE OR
PERSONAL INJURY.
1
B. LOcAtiOn And PREPARAtiOn
Of The UnIT
1. When removing unit from the pallet, notice the tabs on
the basepan. Remove tabs by cutting with a sharp tool
as shown in Figure 2 (see page 2).
2. The unit should be set on a level support pad at least
as large as the unit base pan, such as a concrete
slab. If this is not the application used please refer to
application bulletin SSC-APG002-EN.
3. The support pad must NOT be in direct contact with
any structure. Unit must be positioned a minimum
of 12" from any wall or surrounding shrubbery to
insure adequate airflow. Clearance must be provided
18­AC71D1­5
CAUTION
!
SERVICE
USE ONLY R-410A REFRIGERANT AND
APPROVED POE COMPRESSOR OIL.
5 Ft. ABOVE Unit — UnREStRictEd

Advertisement

Table of Contents
loading

Summary of Contents for Trane 4TTR3

  • Page 1 NOTICE: Trane has always recommended installing Trane approved matched indoor and outdoor systems. The benefits of installing approved matched systems are maximum efficiency, optimum performance and best overall system reliability.
  • Page 2: Installing Refrigerant Lines

    It is recommended that the pressure outdoor unit Service Facts. tap port valve core be removed and a wet rag wrapped around the valve body. 1. Determine the most practical way to run the lines. 18-AC71D1-5 © 2009 Trane...
  • Page 3: Installer's Guide

    Installer’s Guide 6. If vacuum gauge does not rise above 500 microns in one LiqUid LinE SERVicE VALVE (1) minute, the evacuation should be complete. 7. Blank off vacuum pump and micron gauge, close valves on manifold gauge set. NOTE: DO NOT VENT REFRIGERANT INTO THE ATMOSPHERE.
  • Page 4: Electrical Connections

    7. Table 1 defines maximum total length of low voltage BAYSEAC001 (Seacoast Kit) at installation time. Please wiring from outdoor unit, to indoor unit, and to thermostat. refer to Application Guide SS-APB006-EN: Trane - Seacoast 8. Mount the indoor thermostat in accordance with Applications and Seacoast Corrosion Protection Bulletin instruction included with the thermostat.
  • Page 5: Typical Field Hook-Up Diagrams

    Installer’s Guide tyPicAL FiELd hOOk-UP diAGRAMS PRINTED FROM B152901 P02 NOTE PRINTED FROM B152903 P02 W2 present only on 2 stage thermostat and furnace Notes: LEGEND 1. Be sure power supply agrees with equipment nameplate. 2. Power wiring and grounding of equipment must comply with local codes. FACTORY WIRING 3.
  • Page 6: Subcooling Charging In Cooling Above 55°F Od Ambient

    Again, wait twenty (20) minutes for the Trane approved matched indoor and outdoor systems. system conditions to stabilize before adjusting charge All Trane split systems are ARI rated with only TXV indoor again. systems. 8. When system is correctly charged, you can refer to...
  • Page 7 Installer’s Guide 4TTr3 OUTlIne DrAWInG nOtE: ALL diMEnSiOnS ARE in MM (inchES). MOdELS BASE fIG. 4TTR3018A 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20) 4TTR3024A 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 143 (5-5/8)
  • Page 8: Mounting Hole Location

    7. Indoor coil drain line drains freely. Pour water into drain pan .............. [ ] 04/09 Trane www.trane.com Trane has a policy of continuous product and product data improvement and it reserves the right to change design and specifications without notice.

This manual is also suitable for:
