Installation Manual
P/N 0-360049-02
ScanPlus S Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ScanPlus S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intermec ScanPlus S Series

Summary of Contents for Intermec ScanPlus S Series

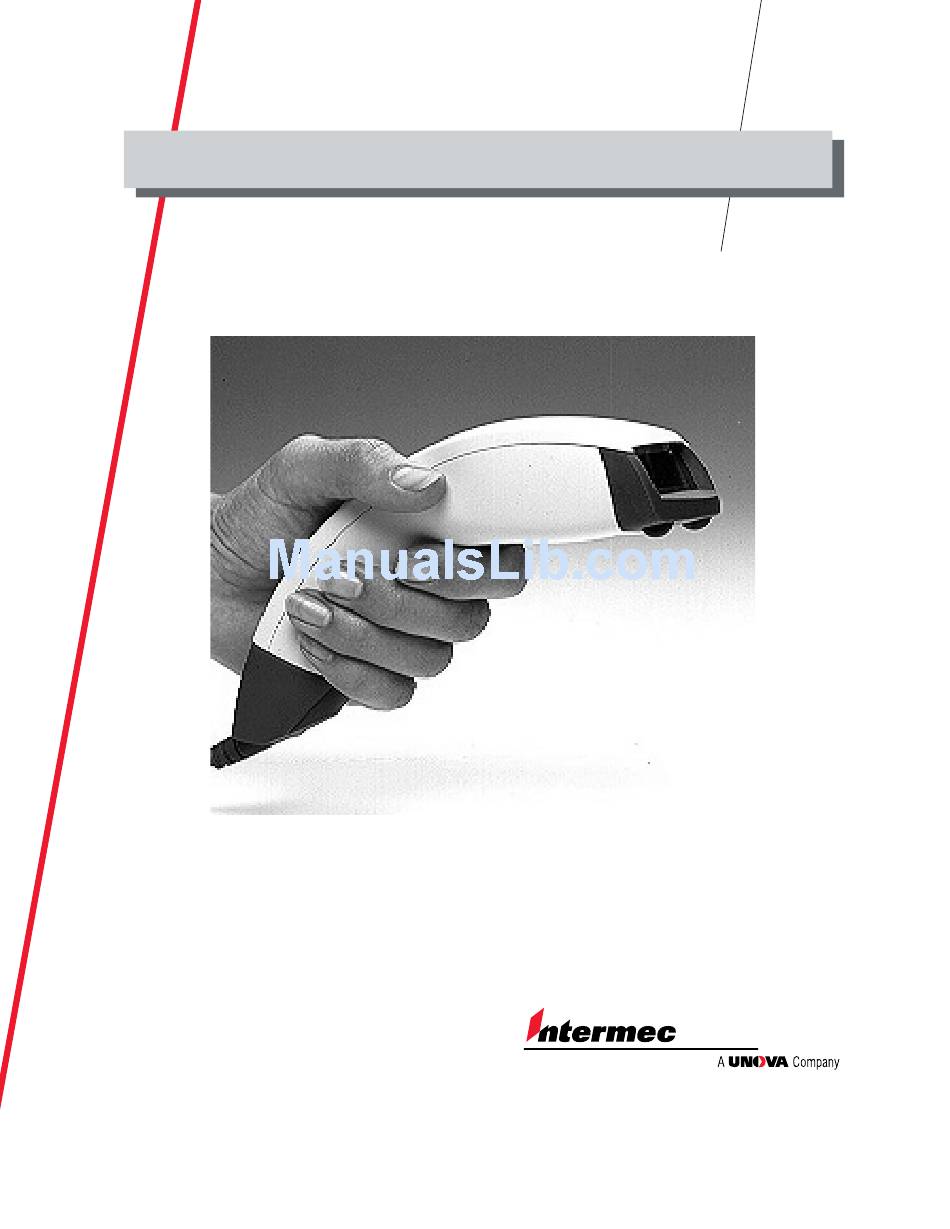

  • Page 1 Installation Manual P/N 0-360049-02 ScanPlus S Series...
  • Page 2 This manual is compatible with EasySet System - spssen.cmd - 980610 This manual contains full setup information for all ScanPlus S Series scanners. When installing the scanner, make sure that the host system is turned off before you connect the cables. Basic setup procedure: 1. Plug in your product. 2. Select the terminal / cash register used in your application (section 3).

  • Page 3: Table Of Contents

    ............38 inter-character delay ..............39 inter-message delay ..............40 end-of-transmission keyboard character status......41 RS-232 ....................42 baud rate................... 42 data bits ..................43 parity..................43 stop bits ..................44 ScanPlus S Series - Installation Manual...
  • Page 4 62 pulse duration ................62 inter-message delay ..............64 IBM 46xx cash registers ............... 65 inter-message delay ..............65 OCIA cash registers ................66 inter-character delay..............66 inter-message delay ..............67 ScanPlus S Series - Installation Manual...
  • Page 5 ................90 MSI Code..................... 92 check digit ................. 92 barcode length ................93 Plessey Code..................94 check digit ................. 94 barcode length ................95 Standard 2 of 5 ..................96 format ..................96 ScanPlus S Series - Installation Manual...
  • Page 6 (tone frequency) ...............116 power-up beeps / power-up LED..........117 good read beeps ..............117 good read LED.................119 7. Configuration modes and utilities ..............121 RS-232 slave mode................124 temporary configuration mode .............126 A. ASCII character codes ................127 ScanPlus S Series - Installation Manual...
  • Page 7 Contents B. Additional preamble / postamble characters—Keyboard wedge....143 C. Number codes ..................149 D. Test codes....................151 Index ......................153 ScanPlus S Series - Installation Manual...
  • Page 8 Contents ScanPlus S Series - Installation Manual...

  • Page 9: Using Easyset

    1. Using EasySet - offline setup 1. select your Intermec product in EasySet ("Select reader" icon over the product image) 2. double-click the setup commands in EasySet to send them to the setup sheet 3. print out the setup sheet and read the configuration codes...

  • Page 10: Online Setup With Special Download Cable 0-605032-00

    1. connect the special download cable to the serial port of your PC 2. connect the power supply to the special download cable and provide electrical power 3. select your Intermec product in EasySet ("Select reader" icon over the product image) 4. disconnect your product cable from your product 5.

  • Page 11: Online Setup With Rs-232 Cable 0-364032-00

    3. connect the power supply to the RS-232 cable and provide electrical power 4. select your Intermec product in EasySet ("Select reader" icon over the product image) 5. read the "RS-232 online setup mode" code (send it to the setup sheet and print it out, or read it from the Getting Started Guide you received with your product) 6.
  • Page 12 RS-232 online setup mode \41\4A\0F\29\60 - only necessary for setup with RS-232 cable 0-364032-00 - double-click the command to send it to the setup sheet - follow the procedure for online setup with RS-232 cable 0-364032-00 ScanPlus S Series - Installation Manual...

  • Page 13: Reset All Parameters

    - resets all configuration parameters to their default values and cancels the terminal / cash register selection - after a global reset, you must select the terminal / cash register used in your application (>> next section) and customize your setup parameters if required ScanPlus S Series - Installation Manual...
  • Page 14 2. Reset all parameters ScanPlus S Series - Installation Manual...

  • Page 15: Terminal / Cash Register Used In Your Application

    - use the terminal selector if you don't find your system configuration in the terminal / cash register lists interface number selector: [range: 100-20000] \41\4A\60 - enter a number string and scan End Selection (Appendix C) - for special host system configurations ScanPlus S Series - Installation Manual...
  • Page 16 - green LED always on no terminal / cash register selected - reselect your terminal / cash register and customize your data transmission settings (if required) to return to normal operation ScanPlus S Series - Installation Manual...

  • Page 17: Keyboard Wedge

    - switch off the host system before you connect the cables and optional power supply ! DIN/mini-DIN adaptor cable (standard wedge) standard wedge cable 0-364037-00 DEC VT 220/320/420 cable 0-364037-02 Wyse cable 0-365036-00 "short" MicroBar cables 0-601xxx-xx CMM-compatible wedge cable 0-364037-03 ScanPlus S Series - Installation Manual...

  • Page 18: Ibm Pc At And Compatible

    IBM PC AT and compatible QWERTY English \41\4A\03\08\60 AZERTY French \41\4A\03\09\60 QWERTZ German \41\4A\03\0C\60 QWERTY Swedish / Finnish \41\4A\03\0D\60 QWERTY Italian \41\4A\03\0E\60 QWERTY Norwegian \41\4A\03\0F\60 QWERTY Danish \41\4A\03\10\60 QWERTY Spanish \41\4A\03\11\60 QWERTZ Swiss / French \41\4A\1F\24\60 ScanPlus S Series - Installation Manual...

  • Page 19: Dec Vt 220, 320, 420

    3. Terminal / cash register used in your application keyboard wedge DEC VT 220, 320, 420 QWERTY PC type \41\4A\06\1A\60 AZERTY PC type \41\4A\06\1B\60 QWERTZ PC type \41\4A\06\1E\60 QWERTY PC type Swedish / Finnish \41\4A\06\1F\60 ScanPlus S Series - Installation Manual...

  • Page 20: Rs-232

    - RS-232 C - 2 green LED flashes at power-up - RS-232 TTL - 4 green LED flashes at power-up - switch off the host system before you connect the cables and power supply ! RS-232 direct cable 0-364032-00 dual RS-232 cable 0-364032-01 ScanPlus S Series - Installation Manual...
  • Page 21 PC Term (19200, 8, none, 2) \41\4A\01\26\60 slave mode (9600, 7, E, 2) \41\4A\01\29\60 - the same slave mode command is available in section 7, "Configuration modes and utilities", go there for more information ScanPlus S Series - Installation Manual...

  • Page 22: Laser Emulation

    - activates "energy saver mode - active for read duration (2 s), standby after good read" (see section 6, "Operating settings - trigger activation") - switch off the host system before you connect the cable ! laser emulation cable 0-366030-00 laser with trigger \41\4A\02\04\60 ScanPlus S Series - Installation Manual...

  • Page 23: Wand Emulation

    6, "Operating settings - trigger activation") - switch off the host system before you connect the cable ! wand emulation cable 0-364031-00 (not energy saver) wand emulation cable 0-366031-00 (Intermec Interface / energy saver) ScanPlus S Series - Installation Manual...
  • Page 24 / Intermec Interface \41\4A\02\03\60 - "white high" (bar = 0, space = 1, margin = 1) - for Intermec products such as 97XX wedge products, JANUS 2010 hand-held computers, TRAKKER Antares 242X terminals, use : ScanPlus S Series product...

  • Page 25: Ibm 46Xx Cash Registers

    - setup is independent of the physical link with the cash register (you can configure for Port 9x or Port 5x as required by the host) - switch off the host system before you connect the cable ! IBM 46xx 9x cable 0-365033-00 Port 9x \41\4A\01\2E\60 Port 5x \41\4A\01\2F\60 ScanPlus S Series - Installation Manual...

  • Page 26: Ocia Cash Registers

    OCIA type - switch off the host system before you connect the cable ! OCIA NCR 7052/7053 cable 0-365035-00 TEC 1st type \41\4A\01\38\60 TEC 2nd type \41\4A\01\39\60 \41\4A\01\3A\60 NCR 7052 \41\4A\01\3B\60 ScanPlus S Series - Installation Manual...

  • Page 27: Data Transmission Settings

    4. Data transmission settings 4. Data transmission settings - interface-specific communication parameters - modify data transmission settings to optimize performance ScanPlus S Series - Installation Manual...

  • Page 28: Keyboard Wedge

    - default values (*) are for IBM PC AT and compatible - QWERTY English preamble [preamble] [symbology id] <data> [postamble] none (*) \45\53\3E\00\60 compose: \45\53\60 - enter an ASCII / Special Wedge Characters string and scan End Selection (Appendix A and B) - maximum = 10 characters ScanPlus S Series - Installation Manual...

  • Page 29: Symbology Identifier

    UPC/EAN (1) 0, 3, 4 UPC/EAN (2) (1) UPC/EAN "standard" lengths = 8, 13, 15 (add-on 2), 18 (add-on 5) characters (2) UPC/EAN other lengths (no check digit, . . .) not transmitted (*) \47\59\60 ScanPlus S Series - Installation Manual...
  • Page 30 \45\55\60 - activates custom symbology identifier transmission for all symbologies compose - compose 1 custom character Codabar: \45\59\04\60 - enter an ASCII character and scan End Selection (Appendix A) - default = N ScanPlus S Series - Installation Manual...
  • Page 31 EAN-8: \45\59\07\60 - enter an ASCII character and scan End Selection (Appendix A) - default = FF EAN-13: \45\59\06\60 - enter an ASCII character and scan End Selection (Appendix A) - default = F ScanPlus S Series - Installation Manual...
  • Page 32 - enter an ASCII character and scan End Selection (Appendix A) - default = M Standard 2 of 5: \45\59\03\60 - enter an ASCII character and scan End Selection (Appendix A) - default = H ScanPlus S Series - Installation Manual...

  • Page 33: Postamble

    - default = A UPC-E: \45\59\09\60 - enter an ASCII character and scan End Selection (Appendix A) - default = E postamble [preamble] [symbology id] <data> [postamble] none \45\54\3E\00\60 Enter (*) \45\54\04\02\01\60 Carriage Return \45\54\04\02\02\60 \45\54\04\02\08\60 ScanPlus S Series - Installation Manual...
  • Page 34 4. Data transmission settings keyboard wedge Field Advance \45\54\04\02\04\60 Field Exit \45\54\04\02\05\60 Down Arrow \45\54\04\02\0F\60 compose: \45\54\60 - enter an ASCII / Special Wedge Characters string and scan End Selection (Appendix A and B) - maximum = 10 characters ScanPlus S Series - Installation Manual...

  • Page 35: Special Keys Interpretation (Code 39)

    PF10 BACK TAB PF11 BACKSPACE PF12 right arrow PF13 left arrow PF14 up arrow PF15 down arrow PF16 CLEAR PF17 FIELD - PF18 PF19 PF20 LINE FEED PF21 RESET PF22 CTRL PF23 SPECIAL PF24 ScanPlus S Series - Installation Manual...
  • Page 36 Example ( . I dual-character combination = <Tab> ) original Code 39 code: interpreted and transmitted as: msg . Ixx msg<Tab>xx <Tab> x - . I x <Tab> msg - . Ixx msg<Tab>xx ScanPlus S Series - Installation Manual...
  • Page 37 Example ( . I dual-character combination = <Tab> ) original Code 39 code: interpreted and transmitted as: msg . Ixx msg . Ixx <Tab> x - . I x <Tab> msg - . Ixx msg<Tab>xx ScanPlus S Series - Installation Manual...

  • Page 38: Special Keys Transmission

    ASCII character: transmitted as: <Backspace> (not <Ctrl> H ) <Tab> (not <Ctrl> I ) <Escape> (not <Ctrl> [ ) - useful to avoid confusion for applications that already use control sequences as commands ScanPlus S Series - Installation Manual...

  • Page 39: Inter-Character Delay

    - avoids dropping characters if transmitting decoded data too fast for the host system - do not use for IBM 46xx cash registers or laser/wand emulation !!! none (*) \52\00\60 10 ms \52\0A\60 20 ms \52\14\60 ScanPlus S Series - Installation Manual...

  • Page 40: Inter-Message Delay

    - enter a number string and scan End Selection (Appendix C) inter-message delay - avoids dropping characters if transmitting decoded data too fast for the host system none (*) \53\00\60 10 ms \53\0A\60 30 ms \53\1E\60 ScanPlus S Series - Installation Manual...

  • Page 41: End-Of-Transmission Keyboard Character Status

    - sets keyboard to lower case or upper case at end of transmission - Code 39 is transmitted in upper case - Code 128 is transmitted in lower case / upper case (full ASCII) lower case (*) \41\44\60 upper case \41\45\60 ScanPlus S Series - Installation Manual...

  • Page 42: Baud Rate

    4. Data transmission settings RS-232 RS-232 - default values (*) are for standard RS-232 C (9600, 7, E, 2) baud rate \41\00\60 \41\01\60 \41\02\60 \41\03\60 1200 \41\04\60 2400 \41\05\60 4800 \41\06\60 ScanPlus S Series - Installation Manual...

  • Page 43: Data Bits

    4. Data transmission settings RS-232 9600 (*) \41\07\60 19200 \41\08\60 38400 \41\09\60 data bits 7 (*) \42\60 \43\60 parity even (*) \46\01\60 \46\02\60 none \46\00\60 ScanPlus S Series - Installation Manual...

  • Page 44: Stop Bits

    - the same timeout applies to all RS-232 protocols supported 1000 ms (*) \51\0F\28\60 unlimited \51\00\60 compose (ms): [range: 0-2500 ms] \51\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 45: Enq

    - before reading a new bar code after transmission, the product waits for an ACK (positive acknowledge) from the host system or until the end of the hardware/software protocols time-out not used (*) \48\3E\00\60 used (ACK 06h) \48\3E\06\60 ScanPlus S Series - Installation Manual...

  • Page 46: Nak

    - a NAK (negative acknowledge) indicates an unsuccessful transmission attempt - after 3 unsuccessful transmission attempts, message is aborted not used (*) \49\3E\00\60 used (NAK 15h) \49\3E\15\60 compose: \49\60 - enter an ASCII character and scan End Selection (Appendix A) ScanPlus S Series - Installation Manual...

  • Page 47: Xon / Xoff Software Protocol

    - the host system controls the flow of data from the reader - XOFF (ASCII character DC3) from the host at the end of the hardware/software protocols time- out interrupts transmission - XON (ASCII character DC1) restarts the data flow not active (*) \4B\60 ScanPlus S Series - Installation Manual...

  • Page 48: Rts / Cts Hardware Protocol

    RTS pulse which can be emitted when each character is transmitted not active (*) \47\5F\00\60 active, RTS idle after each character \47\5F\01\60 active, RTS idle after whole message \47\5F\03\60 active, RTS pulse on each character \47\5F\02\60 ScanPlus S Series - Installation Manual...

  • Page 49: Preamble

    [postamble] none (*) \45\53\3E\00\60 compose: \45\53\60 - enter an ASCII string and scan End Selection (Appendix A) - maximum = 10 characters preamble / postamble [preamble] [symbology id] <data> [postamble] STX / ETX \45\53\3E\02\45\54\3E\03\60 ScanPlus S Series - Installation Manual...

  • Page 50: Symbology Identifier

    UPC/EAN (1) 0, 3, 4 UPC/EAN (2) (1) UPC/EAN "standard" lengths = 8, 13, 15 (add-on 2), 18 (add-on 5) characters (2) UPC/EAN other lengths (no check digit, . . .) not transmitted (*) \47\59\60 ScanPlus S Series - Installation Manual...
  • Page 51 \45\55\60 - activates custom symbology identifier transmission for all symbologies compose - compose 1 custom character Codabar: \45\59\04\60 - enter an ASCII character and scan End Selection (Appendix A) - default = N ScanPlus S Series - Installation Manual...
  • Page 52 EAN-8: \45\59\07\60 - enter an ASCII character and scan End Selection (Appendix A) - default = FF EAN-13: \45\59\06\60 - enter an ASCII character and scan End Selection (Appendix A) - default = F ScanPlus S Series - Installation Manual...
  • Page 53 - enter an ASCII character and scan End Selection (Appendix A) - default = M Standard 2 of 5: \45\59\03\60 - enter an ASCII character and scan End Selection (Appendix A) - default = H ScanPlus S Series - Installation Manual...

  • Page 54: Postamble

    - enter an ASCII character and scan End Selection (Appendix A) - default = E postamble [preamble] [symbology id] <data> [postamble] none \45\54\3E\00\60 Carriage Return + Line Feed (*) \45\54\3E\0D\3E\0A\60 Carriage Return \45\54\3E\0D\60 Line Feed \45\54\3E\0A\60 ScanPlus S Series - Installation Manual...

  • Page 55: Lrc (Longitudinal Redundancy Check)

    - avoids dropping characters if transmitting decoded data too fast for the host system - do not use for IBM 46xx cash registers or laser/wand emulation !!! none (*) \52\00\60 10 ms \52\0A\60 20 ms \52\14\60 ScanPlus S Series - Installation Manual...

  • Page 56: Inter-Message Delay

    - enter a number string and scan End Selection (Appendix C) inter-message delay - avoids dropping characters if transmitting decoded data too fast for the host system none (*) \53\00\60 10 ms \53\0A\60 30 ms \53\1E\60 ScanPlus S Series - Installation Manual...
  • Page 57 4. Data transmission settings RS-232 50 ms \53\32\60 80 ms \53\01\10\60 100 ms \53\01\24\60 compose (ms): [range: 1-999 ms] \53\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 58: Laser Emulation

    - defined in increments of narrow bar width (50 µs) 10 x narrow bar width (*) \5A\0A\60 compose (x narrow bar width): \5A\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 59: Logical Signal State During Transmission

    = 1 (*) \57\60 quiet zone = 0 \56\60 inter-message delay - avoids dropping characters if transmitting decoded data too fast for the host system none (*) \53\00\60 10 ms \53\0A\60 30 ms \53\1E\60 ScanPlus S Series - Installation Manual...
  • Page 60 4. Data transmission settings laser emulation 50 ms \53\32\60 80 ms \53\01\10\60 100 ms \53\01\24\60 compose (ms): [range: 1-999 ms] \53\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 61: Wand Emulation

    - defined in increments of narrow bar width (50 µs) 10 x narrow bar width (*) \5A\0A\60 compose (x narrow bar width): \5A\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 62: Logical Signal State During Transmission

    (mm) and t = setup duration element (ms) Example if r = 0.45 mm and t = 0.4 ms, emulated speed = 100 x (0.45 / 0.4) = 112.5 cm/s 0.19 ms (175 cm/s EAN 100%) \58\13\60 ScanPlus S Series - Installation Manual...
  • Page 63 1.32 ms (25 cm/s EAN 100%) \58\02\04\60 2.64 ms (12.5 cm/s EAN 100%) \58\04\08\60 6.60 ms (5 cm/s EAN 100%) \58\0A\14\60 compose (x 10 µs): \58\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 64: Inter-Message Delay

    (*) \53\00\60 10 ms \53\0A\60 30 ms \53\1E\60 50 ms \53\32\60 80 ms \53\01\10\60 100 ms \53\01\24\60 compose (ms): [range: 1-999 ms] \53\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 65: Ibm 46Xx Cash Registers

    (*) \53\00\60 10 ms \53\0A\60 30 ms \53\1E\60 50 ms \53\32\60 80 ms \53\01\10\60 100 ms \53\01\24\60 compose (ms): [range: 1-999 ms] \53\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 66: Ocia Cash Registers

    (*) \52\00\60 10 ms \52\0A\60 20 ms \52\14\60 30 ms \52\1E\60 40 ms \52\28\60 50 ms \52\32\60 compose (ms): [range: 1-999 ms] \52\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 67: Inter-Message Delay

    (*) \53\00\60 10 ms \53\0A\60 30 ms \53\1E\60 50 ms \53\32\60 80 ms \53\01\10\60 100 ms \53\01\24\60 compose (ms): [range: 1-999 ms] \53\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...
  • Page 68 4. Data transmission settings OCIA cash registers ScanPlus S Series - Installation Manual...

  • Page 69: Symbologies

    - use reset factory defaults to reset all the symbology parameters to their factory default settings) ScanPlus S Series - Installation Manual...

  • Page 70: Codabar

    (*) \41\53\60 active \41\52\60 start/stop not transmitted (*) \43\4D\60 a, b, c, d \43\4E\60 A, B, C, D \43\4F\60 a, b, c, d t, n, *, e \43\50\60 DC1, DC2, DC3, DC4 \43\51\60 ScanPlus S Series - Installation Manual...

  • Page 71: Clsi Library System

    AIM values = 16 + 0 + 1 + 2 + 3 + 4 + 17: next multiple of 16: check = 48 - 43: final message: A 0 1 2 3 4 5 B ScanPlus S Series - Installation Manual...

  • Page 72: Barcode Length

    - minimum length possible = 3 characters any length \43\55\00\60 - cancels any fixed length / minimum length settings and accepts any valid length (3 or more characters) ScanPlus S Series - Installation Manual...
  • Page 73 1 or 2 or 3 fixed lengths - to optimize decoding performance and increase security, select the same length as the minimum length in your application (do not select a shorter length !!) minimum length = 6 (*) \43\55\06\60 ScanPlus S Series - Installation Manual...

  • Page 74: Code 39

    - default format = Standard 43 Characters active (*) \41\4C\60 not active \41\4D\60 format standard 43 characters (*) \42\4A\60 full ASCII \42\4B\60 - extra characters encoded using 1 of 4 control characters ($, %, /, +) combined with a letter: ScanPlus S Series - Installation Manual...
  • Page 75 5. Symbologies Code 39 Code 39 ASCII Space ScanPlus S Series - Installation Manual...
  • Page 76 5. Symbologies Code 39 Code 39 ASCII " & < > ScanPlus S Series - Installation Manual...
  • Page 77 5. Symbologies Code 39 Code 39 ASCII ScanPlus S Series - Installation Manual...

  • Page 78: Start/Stop

    5. Symbologies Code 39 Code 39 ASCII start/stop not transmitted (*) \42\4D\60 ScanPlus S Series - Installation Manual...

  • Page 79: Check Digit

    " $ " only \42\4E\01\60 " $ " and " * " accepted \42\4E\03\60 check digit not used (*) \42\4F\60 modulo 43 - provides extra validation of data checked and transmitted \42\50\60 checked but not transmitted \42\51\60 ScanPlus S Series - Installation Manual...
  • Page 80 \42\52\60 checked but not transmitted \42\53\60 Italian CPI - Italian pharmaceutical industry - transmitted as standard Code 39 if checksum not validated checked and transmitted \42\54\60 checked but not transmitted \42\55\60 ScanPlus S Series - Installation Manual...

  • Page 81: Barcode Length

    - enter a number string and scan End Selection (Appendix C) - to optimize decoding performance and increase security, select the same length as the minimum length in your application (do not select a shorter length !!) minimum length = 6 \42\5C\06\60 ScanPlus S Series - Installation Manual...

  • Page 82: Code 93

    - enter a number string and scan End Selection (Appendix C) - to optimize decoding performance and increase security, select the same length as the minimum length in your application (do not select a shorter length !!) ScanPlus S Series - Installation Manual...
  • Page 83 5. Symbologies Code 93 minimum length = 6 \45\42\06\60 ScanPlus S Series - Installation Manual...

  • Page 84: Code 128 / Ean 128

    \41\5A\60 EAN 128 identifier - the ]C1 AIM identifier for EAN 128 is automatically added by default in front of EAN 128 bar codes include ]C1 identifier (*) \47\5A\01\60 remove ]C1 identifier \47\5A\00\60 ScanPlus S Series - Installation Manual...

  • Page 85: Cip 128 French Pharmaceutical Codes

    - used as separator when multiple identifiers and their fields are concatenated - Example: useful for keyboard wedge interfaces where the GS character can not be transmitted compose: \46\52\60 - enter an ASCII character and scan End Selection (Appendix A) ScanPlus S Series - Installation Manual...

  • Page 86: Barcode Length

    - enter a number string and scan End Selection (Appendix C) - to optimize decoding performance and increase security, select the same length as the minimum length in your application (do not select a shorter length !!) minimum length = 6 \44\55\06\60 ScanPlus S Series - Installation Manual...

  • Page 87: Interleaved 2 Of 5

    - especially recommended for variable length Interleaved 2 of 5 and if "consecutive same read data validation" (data decoding security parameters) is not activated not used (*) \43\43\60 mod 10 checked and transmitted \42\5F\60 checked but not transmitted \43\40\60 ScanPlus S Series - Installation Manual...

  • Page 88: Barcode Length

    (Appendix C) - compose 1 or 2 or 3 fixed lengths provides the best performance and security if the codes in your application have fixed lengths - minimum length possible = 2 characters ScanPlus S Series - Installation Manual...
  • Page 89 1 or 2 or 3 fixed lengths - to optimize decoding performance and increase security, select the same length as the minimum length in your application (do not select a shorter length !!) minimum length = 6 (*) \43\45\06\60 ScanPlus S Series - Installation Manual...

  • Page 90: Matrix 2 Of 5

    - enter a number string and scan End Selection (Appendix C) - to optimize decoding performance and increase security, select the same length as the minimum length in your application (do not select a shorter length !!) ScanPlus S Series - Installation Manual...
  • Page 91 5. Symbologies Matrix 2 of 5 minimum length = 6 (*) \46\59\06\60 ScanPlus S Series - Installation Manual...

  • Page 92: Msi Code

    - numerical symbology not active (*) \41\59\60 active \41\58\60 check digit mod 10 checked and transmitted (*) \44\5A\60 checked but not transmitted \44\5C\60 double mod 10 checked and transmitted \44\5B\60 checked but not transmitted \44\5D\60 ScanPlus S Series - Installation Manual...

  • Page 93: Barcode Length

    (Appendix C) - to optimize decoding performance and increase security, select the same length as the minimum length in your application (do not select a shorter length !!) minimum length = 6 (*) \44\5F\06\60 ScanPlus S Series - Installation Manual...

  • Page 94: Plessey Code

    5. Symbologies Plessey Code Plessey Code - numerical symbology not active (*) \41\5D\60 active \41\5C\60 check digit not transmitted (*) \44\57\60 transmitted \44\56\60 ScanPlus S Series - Installation Manual...

  • Page 95: Barcode Length

    - enter a number string and scan End Selection (Appendix C) - to optimize decoding performance and increase security, select the same length as the minimum length in your application (do not select a shorter length !!) minimum length = 6 \44\59\06\60 ScanPlus S Series - Installation Manual...

  • Page 96: Standard 2 Of 5

    - also referred to as "Straight 2 of 5" and "Industrial 2 of 5" not active (*) \41\51\60 active \41\50\60 format Identicon (6 start/stop bars) (*) \43\47\60 Computer Identics (4 start/stop bars) \43\46\60 check digit mod 10 not used (*) \43\4A\60 checked and transmitted \43\48\60 ScanPlus S Series - Installation Manual...

  • Page 97: Barcode Length

    - minimum length possible = 3 characters any length \43\4C\00\60 - cancels any fixed length / minimum length settings and accepts any valid length (3 or more characters) ScanPlus S Series - Installation Manual...
  • Page 98 1 or 2 or 3 fixed lengths - to optimize decoding performance and increase security, select the same length as the minimum length in your application (do not select a shorter length !!) minimum length = 6 (*) \43\4C\06\60 ScanPlus S Series - Installation Manual...

  • Page 99: Upc / Ean

    (*) \41\56\60 - activates the UPC/EAN families currently selected (deactivated families reactivated, use "reactivate all" to select all UPC/EAN) not active \41\57\60 UPC-A deactivated \43\5D\60 UPC-E deactivated \43\5E\60 EAN-8 deactivated \43\5F\60 EAN-13 deactivated \44\40\60 ScanPlus S Series - Installation Manual...

  • Page 100: Add-On Digits

    - reactivates all deactivated UPC/EAN families add-on digits not required but transmitted if read (*) \44\43\60 required and transmitted \44\42\60 add-on 2 not active (*) \44\41\60 active \46\44\60 add-on 5 not active (*) \46\46\60 active \46\45\60 ScanPlus S Series - Installation Manual...

  • Page 101: Check Digit

    5. Symbologies UPC / EAN check digit <leading character> <number system> <data> <check digit> UPC-A transmitted (*) \44\46\60 not transmitted \44\47\60 UPC-E transmitted (*) \44\4A\60 not transmitted \44\4B\60 EAN-8 transmitted (*) \46\49\60 not transmitted \46\4A\60 ScanPlus S Series - Installation Manual...

  • Page 102: Upc Number System

    UPC-A - regular UPC-A has a transmitted number system equal to 0 - to transmit the additional leading character (country code), select the "UPC-A transmitted as EAN-13" option transmitted (*) \44\44\60 not transmitted \44\45\60 ScanPlus S Series - Installation Manual...

  • Page 103: Re-Encoding Upc-A, Upc-E, Ean-8

    - regular UPC-A has a transmitted number system equal to 0 - to transmit the additional leading character (country code), select the "UPC-A transmitted as EAN-13" option UPC-A transmitted as EAN-13 (*) \44\4F\60 UPC-A transmitted as UPC-A \44\4E\60 UPC-E transmitted as UPC-E (*) \44\4C\60 ScanPlus S Series - Installation Manual...
  • Page 104 5. Symbologies UPC / EAN UPC-E transmitted as UPC-A \44\4D\60 EAN-8 transmitted as EAN 8 (*) \44\50\60 EAN-8 transmitted as EAN-13 \44\51\60 ScanPlus S Series - Installation Manual...

  • Page 105: Operating Settings

    6. Operating settings 6. Operating settings - settings that affect the way your product operates (trigger settings, flashing mode, data decoding security settings, beep characteristics) ScanPlus S Series - Installation Manual...

  • Page 106: Trigger Activation

    - laser beam always on if "trigger not active" for laser models - LASER SAFETY: the ScanPlus S/ST is a Class 2 Laser product - CAUTION - LASER LIGHT WHEN OPEN. DO NOT STARE INTO BEAM. ScanPlus S Series - Installation Manual...

  • Page 107: Trigger Operating Scenarios

    - the ScanPlus does not flash in standby when the trigger is activated active for read duration (2 s)—repeat read duration after good read - read a number of bar codes after a single press of the trigger press trigger good read good read standby ScanPlus S Series - Installation Manual...
  • Page 108 - avoids double reading—when bar codes are close together for example press trigger good read standby active while trigger pressed—standby after good read - selective reading of single bar codes press trigger good read standby ScanPlus S Series - Installation Manual...

  • Page 109: Standard Mode

    (2 s), repeat read duration after good read \46\5D\45\5D\02\46\4C\60 active for read duration (2 s), standby after good read (*) \46\5D\45\5D\02\46\4D\60 - (*) default setting for laser models active while trigger pressed, standby after good read \46\5D\46\5A\03\3F\46\4D\60 ScanPlus S Series - Installation Manual...

  • Page 110: Standard Mode With Aiming Beam

    ScanPlus will crash and you will have to : 1. disconnect the ScanPlus 2. connect the ScanPlus over a "reset factory defaults" configuration code (read from setup sheet, Getting Started Guide or Installation Manual) ScanPlus S Series - Installation Manual...

  • Page 111: Trigger Read Duration

    - LASER SAFETY: the ScanPlus S/ST is a Class 2 Laser product - CAUTION - LASER LIGHT WHEN OPEN. DO NOT STARE INTO BEAM. 2 seconds (*) \45\5D\02\60 compose (sec): [range: 2-65 sec] \45\5D\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 112: Flashing Mode

    - (*) default setting for laser models ("flash after 10 minutes" is the default setting for ccd models) compose time-out before flash (min): [range: 1-60 min] \47\51\47\42\47\4F\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 113: Data Decoding Security

    - 300 ms between identical consecutive codes - 10 ms between different consecutive codes high \45\4E\02\60 - 4 consecutive same reads before transmission - 350 ms between identical consecutive codes - 30 ms between different consecutive codes ScanPlus S Series - Installation Manual...

  • Page 114: Consecutive Same Read Data Validation

    (Appendix C) timeout between identical consecutive codes - prevents reading the same bar code more than once 300 ms (*) \45\4C\04\2C\60 compose (ms): \45\4C\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 115: Timeout Between Different Consecutive Codes

    - prevents unwanted reading of other bar codes on the same label none (*) \45\4D\0A\60 compose (ms): \45\4D\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 116: Beeps / Green Indicator Led

    (2093.04 Hz, 478 µs) (*) \4B\46\07\1E\60 low (1318.52 Hz, 758 µs) \4B\46\0B\36\60 medium (1760 Hz, 568 µs) \4B\46\08\38\60 compose frequency: [range: 100-4000 Hz] \4B\46\60 - enter a number string and scan End Selection (Appendix C) ScanPlus S Series - Installation Manual...

  • Page 117: Power-Up Beeps / Power-Up Led

    - enter a number string and scan End Selection (Appendix C) power-up beeps / power-up LED - 2 beeps = successful power-up - 3 long beeps = EEPROM integrity error (contact your Intermec representative !) on (*) \45\5B\60 \45\5A\60 good read beeps number - "normal"...
  • Page 118 60 ms \45\49\3C\60 80 ms (*) \45\49\01\10\60 200 ms \45\49\04\2C\60 300 ms \45\49\03\08\60 compose (ms): [range: 0-999 ms] \45\49\60 - enter a number string and scan End Selection (Appendix C) timing before transmission (*) \45\52\60 ScanPlus S Series - Installation Manual...

  • Page 119: Good Read Led

    6. Operating settings beeps / green indicator LED after transmission \45\51\60 good read LED on (*) \45\4F\01\10\60 \45\4F\00\60 ScanPlus S Series - Installation Manual...
  • Page 120 6. Operating settings beeps / green indicator LED ScanPlus S Series - Installation Manual...

  • Page 121: Configuration Modes And Utilities

    - allows you to use your barcode reader to set up other products (setup commands transmitted to the other product but do not affect your reader) - remains active until you switch off the product ScanPlus S Series - Installation Manual...
  • Page 122 (RS-232 cable or special download cable) display data string mode \46\4E\60 - displays data string and checksum values on a terminal screen when you read configuration bar ScanPlus S Series - Installation Manual...
  • Page 123 ScanPlus in RS-232 slave mode with the "optimized security transmission" option (see below) - hexadecimal values separated by backslashes or other characters (depending on your terminal emulation setup) - remains active until you switch off the product ScanPlus S Series - Installation Manual...

  • Page 124: Rs-232 Slave Mode

    ScanPlus 6. reselect your normal RS-232 interface setting (section 3) to quit RS-232 slave mode and reconfigure the RS-232 output parameters to suit your system if required ScanPlus S Series - Installation Manual...
  • Page 125 ScanPlus 5. reselect your normal RS-232 interface setting (section 3) to quit RS-232 slave mode and reconfigure the RS-232 output parameters to suit your system if required ScanPlus S Series - Installation Manual...

  • Page 126: Temporary Configuration Mode

    "update current configuration" is selected restore current configuration \46\41\01\60 ignores any temporary configuration actions and update current configuration \46\41\02\60 - permanently saves any temporary configuration actions and quits temporary configuration mode ScanPlus S Series - Installation Manual...

  • Page 127: Ascii Character Codes

    A. ASCII character codes A. ASCII character codes NUL (00h) \3E\00\60 SOH (01h) \3E\01\60 STX (02h) \3E\02\60 ETX (03h) \3E\03\60 EOT (04h) \3E\04\60 ENQ (05h) \3E\05\60 ACK (06h) \3E\06\60 BEL (07h) \3E\07\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 128 A. ASCII character codes BS (08h) \3E\08\60 HT or TAB (09h) \3E\09\60 LF (0Ah) \3E\0A\60 VT (0Bh) \3E\0B\60 FF (0Ch) \3E\0C\60 CR (0Dh) \3E\0D\60 SO (0Eh) \3E\0E\60 SI (0Fh) \3E\0F\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 129 A. ASCII character codes DLE (10h) \3E\10\60 DC1 (11h) \3E\11\60 DC2 (12h) \3E\12\60 DC3 (13h) \3E\13\60 DC4 (14h) \3E\14\60 NAK (15h) \3E\15\60 SYN (16h) \3E\16\60 ETB (17h) \3E\17\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 130 A. ASCII character codes CAN (18h) \3E\18\60 EM (19h) \3E\19\60 SUB (1Ah) \3E\1A\60 ESC (1Bh) \3E\1B\60 FS (1Ch) \3E\1C\60 GS (1Dh) \3E\1D\60 RS (1Eh) \3E\1E\60 US (1Fh) \3E\1F\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 131 A. ASCII character codes SP (20h) \00\60 ! (21h) \01\60 " (22h) \02\60 # (23h) \03\60 $ (24h) \04\04\60 % (25h) \05\60 & (26h) \06\60 ' (27h) \07\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 132 A. ASCII character codes ( (28h) \08\60 ) (29h) \09\60 * (2Ah) \0A\60 + (2Bh) \0B\60 , (2Ch) \0C\60 - (2Dh) \0D\60 . (2Eh) \0E\60 / (2Fh) \0F\0F\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 133 A. ASCII character codes 0 (30h) \10\60 1 (31h) \11\60 2 (32h) \12\60 3 (33h) \13\60 4 (34h) \14\60 5 (35h) \15\60 6 (36h) \16\60 7 (37h) \17\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 134 A. ASCII character codes 8 (38h) \18\60 9 (39h) \19\60 : (3Ah) \1A\60 ; (3Bh) \1B\60 < (3Ch) \1C\60 = (3Dh) \1D\60 > (3Eh) \1E\60 ? (3Fh) \1F\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 135 A. ASCII character codes @ (40h) \20\20\60 A (41h) \21\60 B (42h) \22\60 C (43h) \23\60 D (44h) \24\60 E (45h) \25\60 F (46h) \26\60 G (47h) \27\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 136 A. ASCII character codes H (48h) \28\60 I (49h) \29\60 J (4Ah) \2A\60 K (4Bh) \2B\60 L (4Ch) \2C\60 M (4Dh) \2D\60 N (4Eh) \2E\60 O (4Fh) \2F\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 137 A. ASCII character codes P (50h) \30\60 Q (51h) \31\60 R (52h) \32\60 S (53h) \33\60 T (54h) \34\60 U (55h) \35\60 V (56h) \36\60 W (57h) \37\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 138 A. ASCII character codes X (58h) \38\60 Y (59h) \39\60 Z (5Ah) \3A\60 [ (5Bh) \3B\60 \ (5Ch) \3C\60 ] (5Dh) \3D\60 ^ (5Eh) \3E\3E\60 _ (5Fh) \3F\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 139 A. ASCII character codes ` (60h) \20\20\60 a (61h) \20\21\60 b (62h) \20\22\60 c (63h) \20\23\60 d (64h) \20\24\60 e (65h) \20\25\60 f (66h) \20\26\60 g (67h) \20\27\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 140 A. ASCII character codes h (68h) \20\28\60 i (69h) \20\29\60 j (6Ah) \20\2A\60 k (6Bh) \20\2B\60 l (6Ch) \20\2C\60 m (6Dh) \20\2D\60 n (6Eh) \20\2E\60 o (6Fh) \20\2F\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 141 A. ASCII character codes p (70h) \20\30\60 q (71h) \20\31\60 r (72h) \20\32\60 s (73h) \20\33\60 t (74h) \20\34\60 u (75h) \20\35\60 v (76h) \20\36\60 w (77h) \20\37\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 142 A. ASCII character codes x (78h) \20\38\60 y (79h) \20\39\60 z (7Ah) \20\3A\60 { (7Bh) \20\3B\60 | (7Ch) \20\3C\60 } (7Dh) \20\3D\60 ~ (7Eh) \20\3E\60 DEL (7Fh) \20\3F\60 end selection \64\60 ScanPlus S Series - Installation Manual...

  • Page 143: Additional Preamble / Postamble Characters-Keyboard Wedge

    B. Additional preamble / postamble characters—Keyboard wedge B. Additional preamble / postamble characters—Keyboard wedge PF 1 \04\02\18\60 PF 2 \04\02\19\60 PF 3 \04\02\1A\60 PF 4 \04\02\1B\60 PF 5 \04\02\1C\60 PF 6 \04\02\1D\60 PF 7 \04\02\1E\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 144 B. Additional preamble / postamble characters—Keyboard wedge PF 8 \04\02\1F\60 PF 9 \04\02\20\60 PF 10 \04\02\21\60 PF 11 \04\02\22\60 PF 12 \04\02\23\60 PF 13 \04\02\24\60 PF 14 \04\02\25\60 PF 15 \04\02\26\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 145 B. Additional preamble / postamble characters—Keyboard wedge PF 16 \04\02\27\60 PF 17 \04\02\28\60 PF 18 \04\02\29\60 PF 19 \04\02\2A\60 PF 20 \04\02\2B\60 PF 21 \04\02\2C\60 PF 22 \04\02\2D\60 PF 23 \04\02\2E\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 146 B. Additional preamble / postamble characters—Keyboard wedge PF 24 \04\02\2F\60 \04\02\00\60 ENTER \04\02\01\60 RETURN \04\02\02\60 SEND \04\02\03\60 FIELD + \04\02\04\60 FIELD EXIT \04\02\05\60 HOME \04\02\06\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 147 B. Additional preamble / postamble characters—Keyboard wedge \04\02\07\60 TAB = Ctrl i \04\02\08\60 \04\02\09\60 BACK TAB \04\02\0A\60 BACK SPACE \04\02\0B\60 ARROW RIGHT \04\02\0C\60 ARROW LEFT \04\02\0D\60 ARROW UP \04\02\0E\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 148 B. Additional preamble / postamble characters—Keyboard wedge ARROW DOWN \04\02\0F\60 CLEAR \04\02\10\60 FIELD - \04\02\11\60 \04\02\12\60 \04\02\13\60 LINE FEED \04\02\14\60 RESET \04\02\15\60 end selection \64\60 ScanPlus S Series - Installation Manual...

  • Page 149: Number Codes

    C. Number codes C. Number codes \10\60 \11\60 \12\60 \13\60 \14\60 \15\60 \16\60 \17\60 end selection \64\60 ScanPlus S Series - Installation Manual...
  • Page 150 C. Number codes \18\60 \19\60 end selection \64\60 ScanPlus S Series - Installation Manual...

  • Page 151: Test Codes

    D. Test codes D. Test codes Codabar 123456 Code 39 CODE-39 Code 93 CODE-93 Code 128 CODE-128 EAN 128 ]C1EAN 128 Interleaved 2 of 5 12345678901234 Standard 2 of 5 123456 Matrix 2 of 5 012345 ScanPlus S Series - Installation Manual...
  • Page 152 0 1 2 3 4 5 0 0 0 0 UPC-E 0 1 2 3 4 5 Codablock F UBI ScanPlus XP and XP PDF CCD Bar Code Scanners PDF417 UBI ScanPlus XP and XP PDF CCD Bar Code Scanners ScanPlus S Series - Installation Manual...

  • Page 153: Index
