Code Reader 2500 CR2500) Quick Start Manual

Reading Tips
CR2500's unique targeting function uses two converging targeting
LEDs to guide the user to optimal reading range.
Quick Tips
The CR2500 can be
programmed to vibrate
to indicate a good read
has occurred.
The CR2500 can be
programmed to beep
to indicate a good
read has occurred.
Refer to the CR2500 User Manual for a complete reference guide of LED meanings and
programming options.
4
The reader is too far from a
bar code (more than 12"
from the bar code reader).
The reader is too close to a
bar code (less than 1"
from the bar code reader).
The optimal distance to read
most bar codes is 3-4" away
from the bar code reader.
Memory Status LED
Flashes Amber When there is 10-99% memory
available
Flashes Red When there is 0% memory
available
Power/Battery LED
Flashes Green When a good read has occurred,
and if the battery life is 50-100%
Flashes Amber When the battery life is 20-50%
Flashes Red When the battery life is 0-20%
© 2012. Code Corporation. All Rights Reserved.

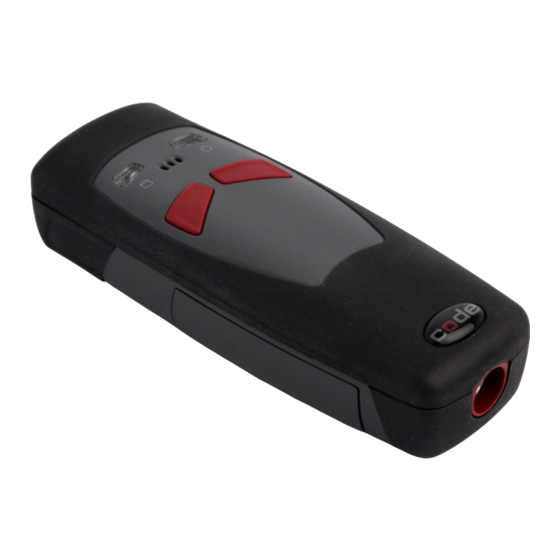

Code Reader™ 2500 (CR2500) - Wireless
Included with your Wireless CR2500
Depending on the reader configuration ordered, you will have received one of the
following with your CR2500:
Battery Cartridge Battery Handle
Installing a Battery Cartridge
1. To install a battery, place the plastic tab on the bottom
of the battery cartridge into the slot on the reader.
Slide the locking mechanism up, and press the battery
into place. Slide the locking mechanism down to
secure the battery.
2. To detach a battery, slide the locking mechanism on
the reader up and pull the battery cartridge up and
away from the slot on the reader.
Note: Battery ships with approximately 50% battery life. Fully charge battery before use.
Approximate charge time is 4 hours when battery depleted.
C004417_03_CR2500_Quickstart_Wireless
Quickstart Guide
