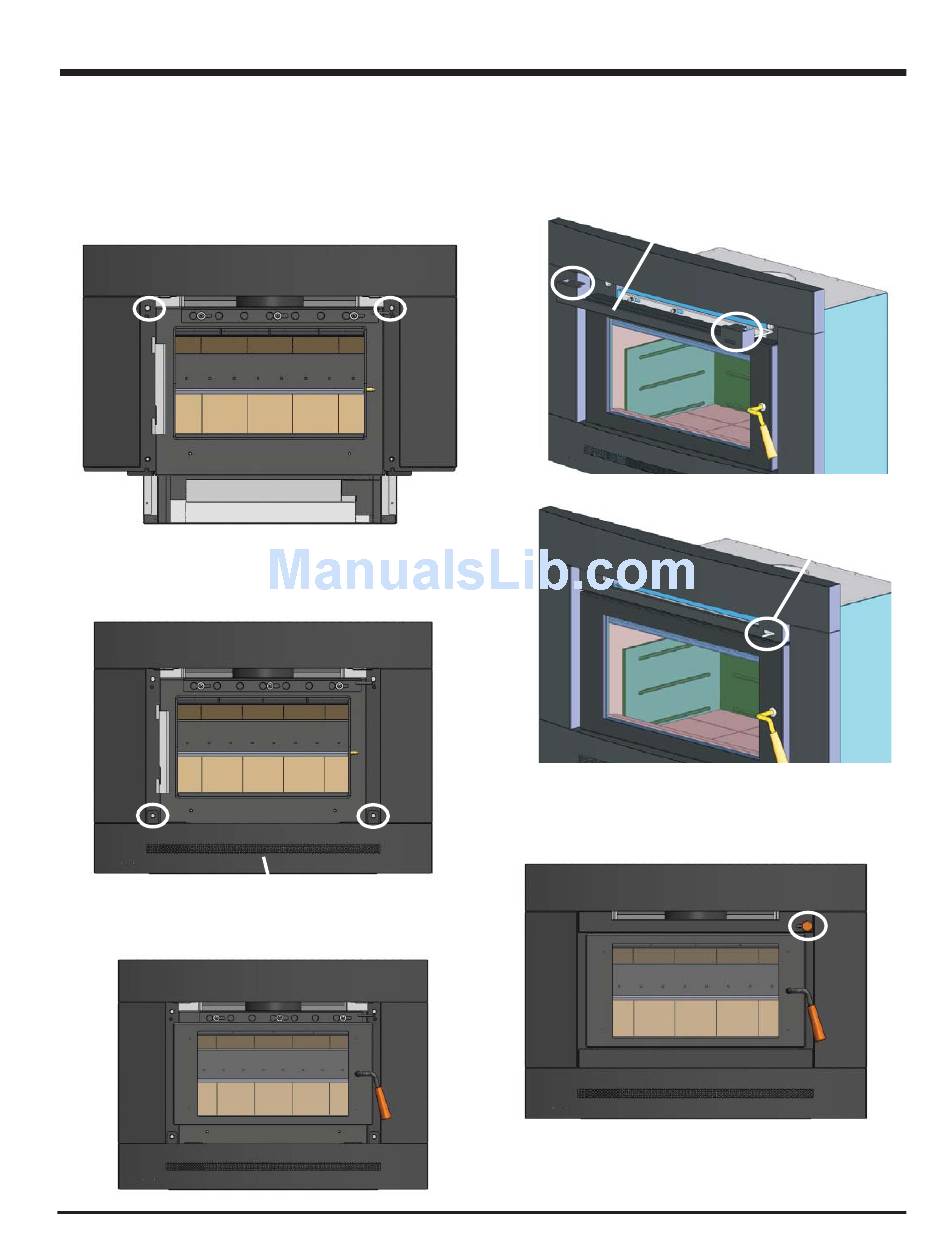

1) Remove the door from the unit by lifting it up off the hinges.
2) Position the faceplate up against the unit by sliding the left side of
the fascia in behind the door hinges and align the 4 screw holes with
the holes in the fi rebox. Secure in place using 2 screws on top.
3) Install the fan fascia by aligning the bottom screw locations with the
bottom faceplate. See page 13 for fan wiring diagram.
Fan Fascia
4) Re-install door.
Regency Berwick Fireplace Insert
FACEPLATE & FAN INSTALLATION
5) Install the draft plate cover by sliding the tabs into the tab brackets
on the inside top of the fi rebox, ensure the damper control rod fi ts
thru the opening in the draft plate cover.
Draft Plate Cover
6) Install knob on damper control rod.
INSTALLATION
Damper
Control Rod
