LSI22320SE PCI Express SCSI
Host Bus Adapter
Quick Installation Guide
Thank you for purchasing the LSI22320SE PCI Express
SCSI Host Bus Adapter (HBA). Please take a few minutes to
read this quick installation guide before you install the
LSI22320SE.
If you need more information about any topic covered in this
guide, refer to the other documents on the accompanying
LSI Device Drivers & Utilities CD.
C O N T E N T S O F T H E L S I D E V I C E D R I V E R S
& U T I L I T I E S C D
The LSI HBA CD contains utility programs, device drivers for
various operating systems, and the following LSI
documentation:
• LSI Ulta320 SCSI Host Adapters User's Guide
• Fusion-MPT
Device Management User's Guide
• Host adapter technical product briefs
Q U I C K H B A I N S T A L L A T I O N
To install the LSI22320SE, follow these steps:
Step 1
Unpack the HBA and inspect it for damage.
Unpack the HBA in a static-free environment.
Remove the HBA from the antistatic bag and
inspect it for damage. If it appears to be
damaged, or if any component is missing, contact
LSI or your reseller support representative.
Make a backup of your data before changing your
!
system configuration.
CAUTION
32653-00
Step 2
Prepare the computer.
Turn off the computer and remove the power cord
from the back of the power supply. Remove the
cover from the chassis. Be certain to disconnect
the computer from the power supply and from any
networks before installing the controller card.
Step 3
Insert the LSI22320SE in an available
PCI Express slot.
Locate an empty PCI Express slot. Remove the
blank bracket panel on the back of the computer
that is aligned with the PCI Express slot you have
selected. Save the bracket screw when present.
Align the HBA to a PCI Express slot. Press down
gently but firmly to properly seat the HBA in the

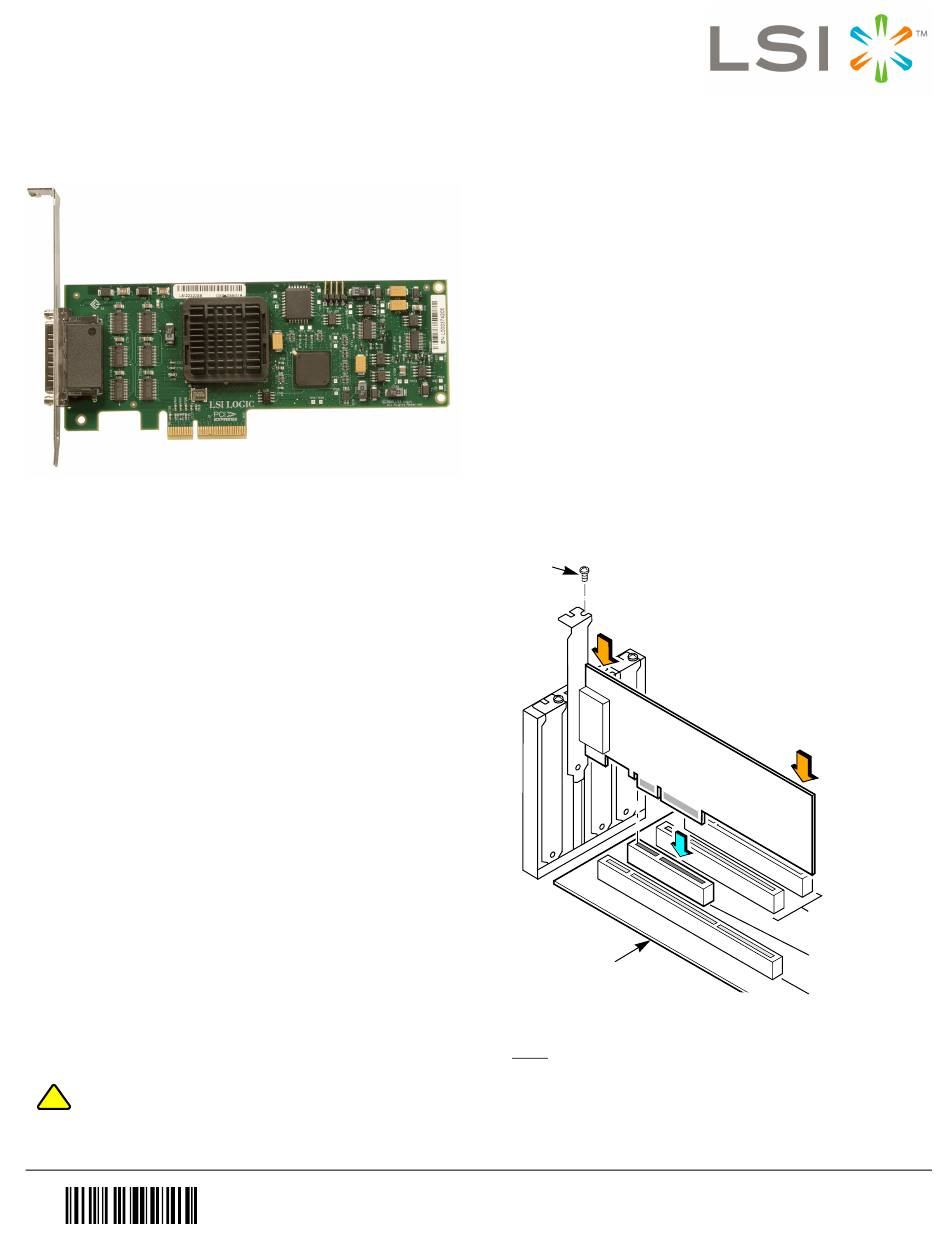

slot. The following figure shows how to insert the
HBA in a PCI Express slot.
Bracket
Screw
Press
Here
Edge of
Host Board
Note:
The host adapter shape, size, and locations of
components may vary from this illustration.
Press
Here
32-bit Slots
(3.3V Only)
PCI Express
X8 Slot
64-bit Slot
(3.3V Only)
