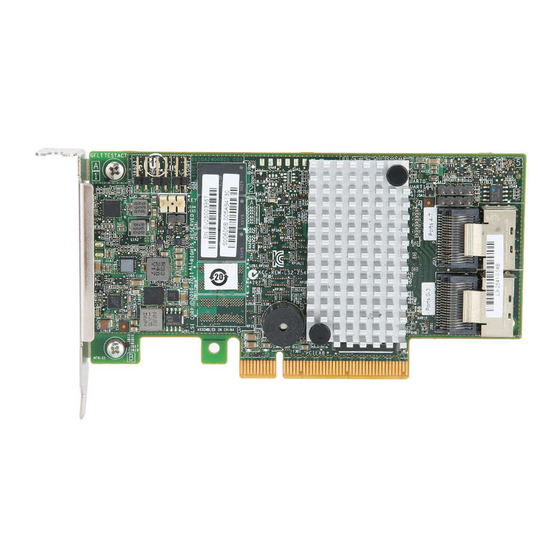

MegaRAID® SAS 9267-8i RAID Controller
Quick Installation Guide
August 2012
52288-00, Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MegaRAID SAS 9267-8i and is the answer not in the manual?

Questions and answers

Summary of Contents for LSI MegaRAID SAS 9267-8i

  • Page 1 MegaRAID® SAS 9267-8i RAID Controller Quick Installation Guide August 2012 52288-00, Rev A...
  • Page 2: Revision History

    LSI Corporation reserves the right to make changes to the product(s) or information disclosed herein at any time without notice. LSI Corporation does not assume any responsibility or liability arising out of the application or use of any product or service described herein, except as expressly agreed to in writing by LSI Corporation; nor does the purchase, lease, or use of a product or service from LSI Corporation convey a license under any patent rights, copyrights, trademark rights, or any other of the intellectual property rights of LSI Corporation or of third parties.
  • Page 3: Product Overview

    MegaRAID Universal Software Suite CD. Product Overview The MegaRAID SAS 9267-8i RAID controller is a PCI-Express® 3.0, low-profile RAID controller that offers a 6-Gb/s transfer rate. The controller uses 1GB of DDR3 1333MHz memory (64-bit data and 8-bit ECC) or an optional 512MB of DDR3 1333MHz memory (32-bit data and 8-bit ECC).
  • Page 4: Installing The Controller

    MegaRAID SAS 9267-8i RAID Controller Quick Installation Guide Installing the Controller July 2012 NOTE Record your controller serial number in a safe location in case you need to contact LSI. NOTE This RAID controller supports SATA I, SATA II, and SATA III technologies. Installing the Controller CAUTION Back up your data before changing your system configuration.
  • Page 5 MegaRAID SAS 9267-8i RAID Controller Quick Installation Guide Installing the Controller July 2012 Figure 2 Layout of the MegaRAID SAS 9267-8i RAID Controller J1A1 J1A3 J2A2 J5A2 J2L1 J5A1 J1A4 J1A5 J5A3 J5B1 3_00862-00 J2B4 NOTE Pin 1 on the headers and connectors is highlighted in red in the previous figure.
  • Page 6 MegaRAID SAS 9267-8i RAID Controller Quick Installation Guide Installing the Controller July 2012 Table 1 Jumpers and Connectors (Continued) Jumper/ Type Description Connector J2A2 Global HDD activity LED header 2-pin connector Connects to an LED that indicates activity on the drives connected to the controller.
  • Page 7 MegaRAID SAS 9267-8i RAID Controller Quick Installation Guide Installing the Controller July 2012 Figure 3 Installing the MegaRAID SAS 9267-8i RAID Controller Bracket Skrew Press Here Press Here PCI Express Edge of Motherboard 3_00863-00 Configure and Install the SAS Devices, SATA III Devices, or Both in the Host Computer Case Refer to the documentation for the devices for any preinstallation configuration requirements.
  • Page 8: Supported Raid Levels

    The MegaRAID Universal Software Suite CD includes the software drivers for the supported operating systems, along with documentation. You can view the supported operating systems and download the latest drivers for RAID controllers from the LSI website at: http://www.lsi.com/cm/DownloadSearch.do. Access the download center, and follow the steps to download the driver.
  • Page 9: Technical Support

    Technical Support July 2012 Technical Support For assistance in installing, configuring, or running your MegaRAID SAS 9267-8i RAID controller, contact an LSI Technical Support representative. Click the following link to access the LSI Technical Support page for storage and board support: http://www.lsi.com/support/storage/tech_support/index.html...
  • Page 10 52288-00A...
