Summary of Contents for K-Star K1035

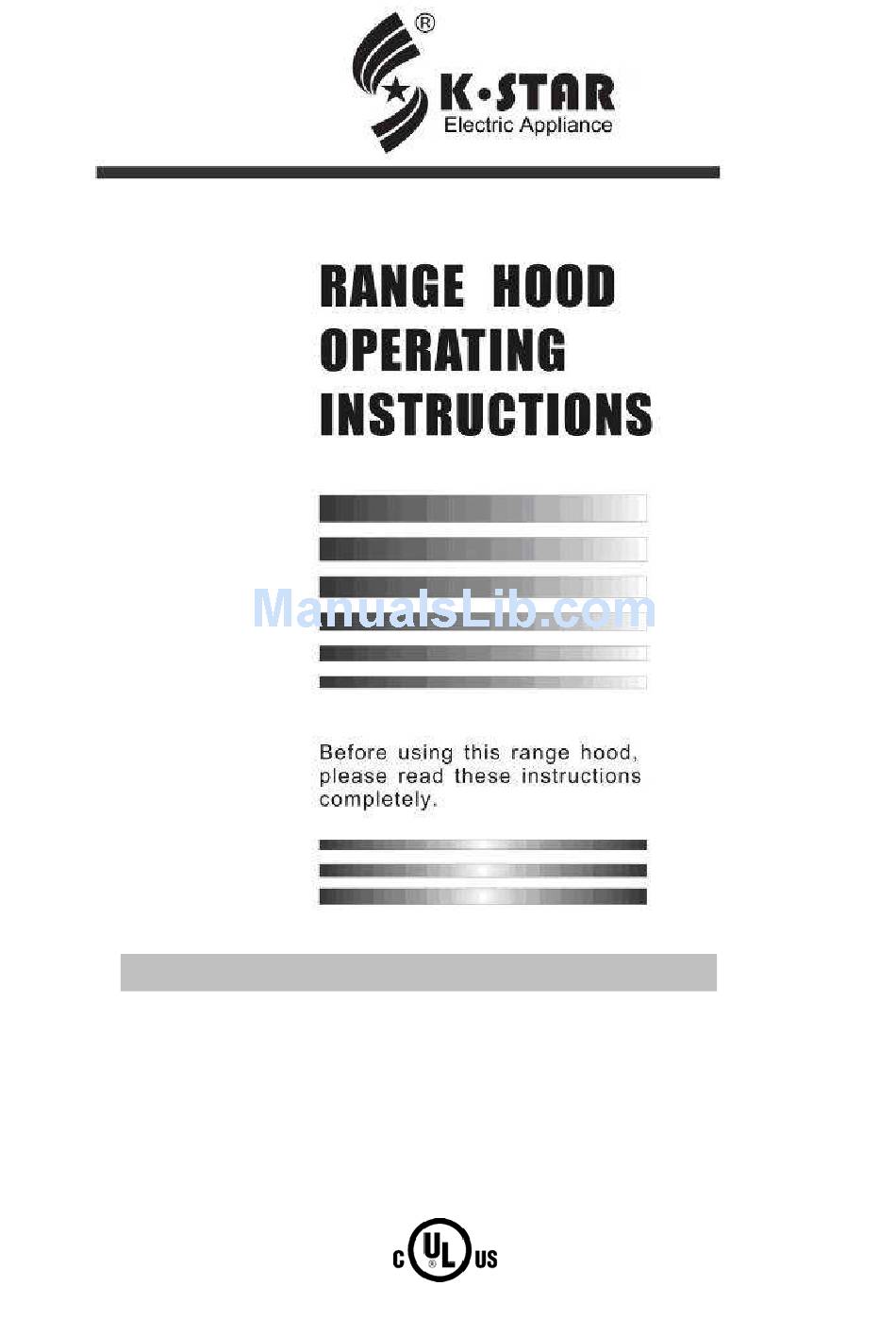

- Page 1 READ AND SAVE THIS INSTRUCTIONS FOR DOMESTIC COOKING ONLY Installer: Leave this manual with the homeowner. Homeowner: Cleaning, Maintenance and Operating instructions on the coming pages. RANGE HOOD ITEM NO.: K1035 REFERED MODEL NO.: 6008A NUMBER: E312110...
-
Page 2: To Reduce The Risk Of Fire, Electric Shock, Or Injury To Persons, Observe The Following
INTENDED FOR DOMESTIC COOKING ONLY WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty. 2. - Page 3 CAUTION 1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. 2. Take care when using cleaning agents or detergents. 3.
-
Page 4: Prepare The Hood
PREPARE THE HOOD Unpack hood and check contents. You should receive: 1 - Hood 1 - Installation Instructions 1 - Warranty Card 1 - Parts Bag containing: 1 - Vent 1 - Aluminum foil flex duct 8 - Mounting Screws ( ST4*18, use for under cabinet installation) 4 - Mounting Screws ( , use for vent installation) - Page 5 WARNING Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes. The minimum hood distance above cooktop must not be less than 24’’. A maximum of 33” above cooktop is highly recommended for best capture of cooking impurities.
-
Page 6: Install The Hood
PREPARE THE HOOD Outside Exhaust 1. Install the vent into the duct connector of the cooker hood with 4 screws ( ST4*8 2. Fix the Aluminum Flex Duct on the vent. INSTALL THE HOOD 1) The cooker hoods shall be placed at a distance of 24”-30” of the cooking surface for best performance. -
Page 7: Operation
PiC 3 PiC 4 MAINTENANCE PiC 5 Proper maintenance of the Range Hood will assure proper performance of the unit. Filters The filters must be cleaned approximately once every 30 hours of operation (when the central segment on the display goes on or starts blinking). Use a warm detergent solution. -
Page 8: Warranty
Controls Always turn the hood ON before cooking in order to establish an air flow in the kitchen. After turning off the range, let the hood run for a few minutes to clear the air. Push button 1. Push stop button, and the motor will stop. 2. - Page 10 K-Star International Group Inc. K-Star Electronic Appliance Inc. Toll Free:(800) 893-2168 Email:info@kstarus.com http://www.kstarus.com...
