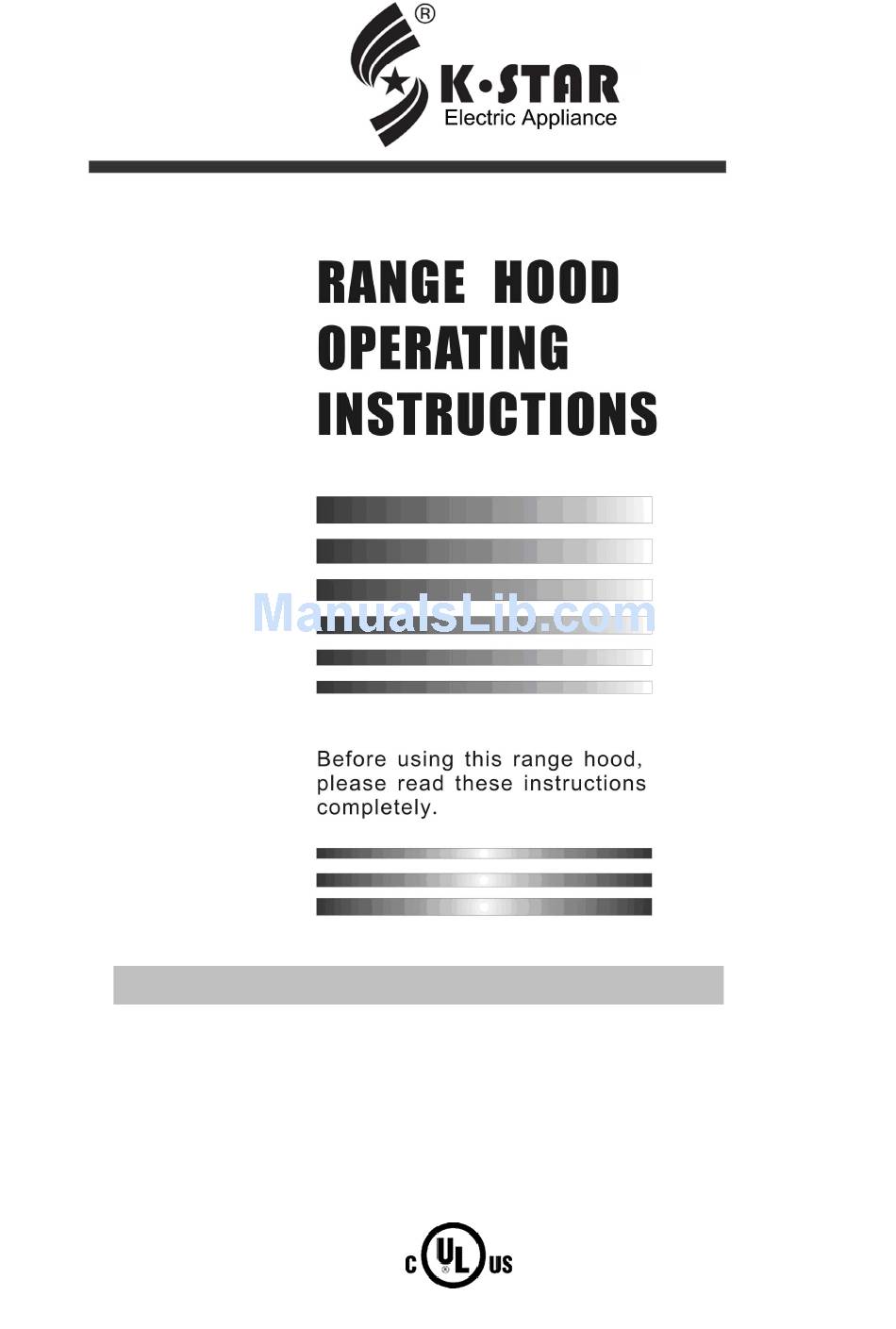

K-Star K1023 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
READ AND SAVE THIS INSTRUCTIONS
FOR DOMESTIC COOKING ONLY
Installer: Leave this manual with the homeowner.
Homeowner: Cleaning, Maintenance and Operating
instructions on the coming pages.
RANGE HOOD ITEM NO.: K1023
REFERED MODEL NO.: 3503D IS
NUMBER: E312110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1023 and is the answer not in the manual?

Questions and answers

Related Manuals for K-Star K1023

Summary of Contents for K-Star K1023

  • Page 1 READ AND SAVE THIS INSTRUCTIONS FOR DOMESTIC COOKING ONLY Installer: Leave this manual with the homeowner. Homeowner: Cleaning, Maintenance and Operating instructions on the coming pages. RANGE HOOD ITEM NO.: K1023 REFERED MODEL NO.: 3503D IS NUMBER: E312110...

  • Page 2: To Reduce The Risk Of Fire, Electric Shock, Or Injury To Persons, Observe The Following

    INTENDED FOR DOMESTIC COOKING ONLY WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty. 2.
  • Page 3 CAUTION 1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. 2. Take care when using cleaning agents or detergents. 3.

  • Page 4: Prepare The Hood

    PREPARE THE HOOD Unpack hood and check contents. You should receive: 1 - Hood 1 - Decorative Flue Assembly 1 - Parts Bag containing: 1 - Mounting Plate 1 - Installation Instructions 1 - Vent 1 - Warranty Card 1 - Instruction paper 1 - S hook 8 - Angle Iron 12 - Mounting Screws (6 x 40mm for wooded ceiling)
  • Page 5 WARNING Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes. The minimum hood distance above cooktop must not be less than 24’’. A maximum of 33”...

  • Page 6: Install The Ductwork

    INSTALL MOUNTING PLATE AND ANGLE IRON Fix the instruction paper onto the ceiling. Drill holes as the paper show. Put the drywall anchors into the holes and pick out the mounting plate and use 12 pcs mounting screws to fix the plate onto the ceiling.(If for concrete ceiling, pls use the 8 pcs of explode screws).
  • Page 7 INSTALL CHIMNEYS Pick out the chimneys, put the inside chimney through the angle irons and up to the ceiling, use 4 pcs of mounting screws(4*8mm) to fix the chimney onto the mounting plate. See picture shown. Put the outside chimney onto the inside chimney and use the S hook to fix on the angle iron.

  • Page 8: None-Ducted Recirculation Filter Installation

    NONE-DUCTED RECIRCULATION FILTER INSTALLATION Type-A 1. Purchase a non-ducted recirculation filter from your dealer. 2. Install the filter by rotating it onto the equipment which is stands on two sides of the motor. Type-B 1. Purchase a non-ducted recirculation filter from your dealer.

  • Page 9: Install The Hood

    PREPARE THE HOOD Note: On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood and decorative flues, prior to final installation. Pick out the hood from the carton. Install the vent into the duct connector of the cooker hood with...

  • Page 10: Maintenance

    MAINTENANCE Proper maintenance of the Range Hood will assure proper performance of the unit. Filters The filters must be cleaned approximately once every 30 hours of operation (when the central segment on the display goes on or starts blinking). Use a warm detergent solution. Grease filters are dishwasher safe.

  • Page 11: Operation

    OPERATION Controls Always trun the hood ON before cooking in order to establish an air flow in the kitchen. After turing off the range, let the hood run for a few minutes to clear the air. LCD switch 1. Power on: Switch on the power supply, and the backlight is lit, displaying “24-hour system”. The output is then blocked up, and the machine enters standby status.

  • Page 12: Halogen Bulbs

    2) The timer key is the timer setting key when the motor is working. If only press Lamp key, the timer key is null and void. A) Press timer key, enter the setting display. 1 time setting is 5 min. Use speed key for increase gradually, use lamp key for decrease gradually, the time should be set 1:00—60:00 min.
  • Page 13 K-Star International Group Inc. K-Star Electronic Appliance Inc. Toll Free:(800) 893-2168 Email:info@kstarus.com http://www.kstarus.com...
