Summary of Contents for K-Star 3503A

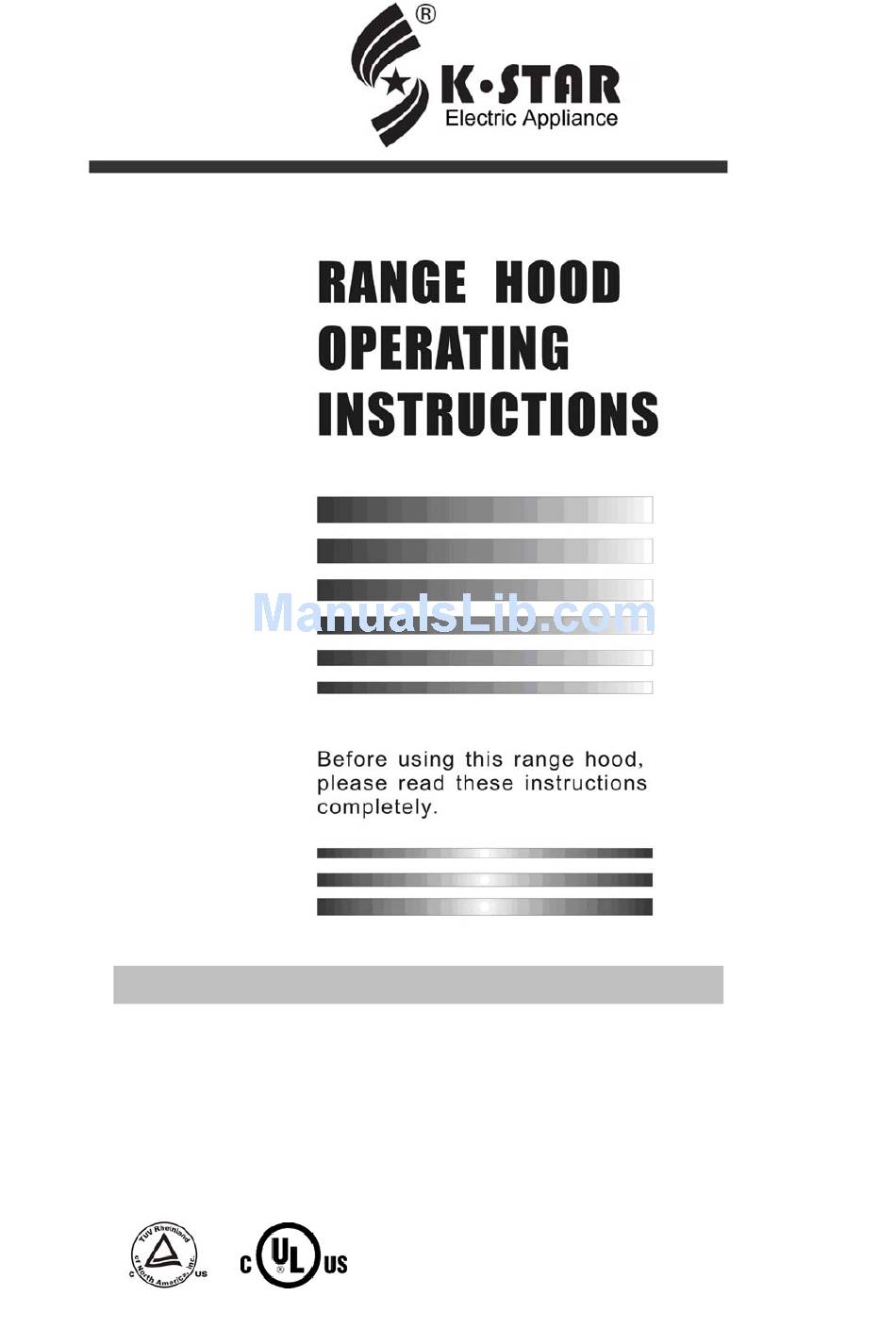

- Page 1 READ AND SAVE THIS INSTRUCTIONS FOR DOMESTIC COOKING ONLY Installer: Leave this manual with the homeowner. Homeowner: Cleaning, Maintenance and Operating instructions on the coming pages. RANGE HOOD ITEM NO.: K1012/K1012A REFERED MODEL NO.: 3503A/3503D MOTOR WITH UL CERTIFICATE...
- Page 2 INTENDED FOR DOMESTIC COOKING ONLY WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty. 2.
- Page 3 CAUTION 1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. 2. Take care when using cleaning agents or detergents. 3.
-
Page 4: Prepare The Hood
PREPARE THE HOOD Unpack hood and check contents. You should receive: 1 - Hood 1 - Decorative Flue Assembly 1 - Parts Bag containing: Mounting Bracket 1 - Installation Instructions 1 - Vent 1 - Warranty Card 1 - Duct fixing support 1 - Slidery duct fixing support 7 - Mounting Screws (4 x 50mm) 10 - Mounting Screws (4 x 8mm) -
Page 5: Install The Ductwork
WARNING Note: This range hood must properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes. The minimum hood distance above cooktop must not be less than 24’’. A maximum of 33” above cooktop is highly recommended for best capture of cooking impurities. -
Page 6: Install Mounting Brackets
INSTALL MOUNTING BRACKETS After eveluating the height of the hood, place the hook center over installation location. Drill 3 holes of Ø8mm on a suitable place to fix the mounting brackets. Put the drywall anchors into the holes and fix the mounting screws (4x50mm) into the anchors, and install the hook on the wall as shown. -
Page 7: None-Ducted Recirculation Filter Installation
NONE-DUCTED RECIRCULATION FILTER INSTALLATION 1. Purchase non-ducted recirculation filter from your dealer. 2. Install the filter by rotating it onto the equipment which is stands on two sides of the motor. PREPARE THE HOOD Screw: 4x8mm Note: On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood and decorative... -
Page 8: Install The Hood
INSTALL THE HOOD Note: at least two people will be required to mount the hood. 1. Raise the hood into its mounting position. 2. Align the rectangular opening on the back of the hood with the wall-mounting bracket. Gently lower the hood until it securely engages the bracket. -
Page 9: Maintenance
MAINTENANCE Proper maintenance of the Range Hood will assure proper performance of the unit. Filters The filters must be cleaned approximately once every 30 hours of operation (when the central segment on the display goes on or starts blinking). Use a warm detergent solution. Grease filters are dishwasher safe. -
Page 10: Operation
OPERATION Controls Always trun the hood ON before cooking in order to establish an air flow in the kitchen. After turing off the range, let the hood run for a few minutes to clear the air. Electronic Button 1. Turn on the power; the buzzer will buzz five times. The sound shows that the appliance is powered. -
Page 11: Halogen Bulbs
HALOGEN BULBS ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY BEFORE CARRYING OUT ANY OPERATIONS ON THE APPLIANCE. To change bulbs: 1. Rotate the cover in anticlockwise, as shown. CAUTION: BULB MAY BE HOT,PLEASE ROTATE WHEN THE BULB IS COOL! 2. Replace with a Type JC, 12Volt, 20Watt Max, Base bulb. - Page 12 K-Star International Group Inc. K-Star Electronic Appliance Inc. Toll Free:(800) 893-2168 Email:info@kstarus.com http://www.kstarus.com...
