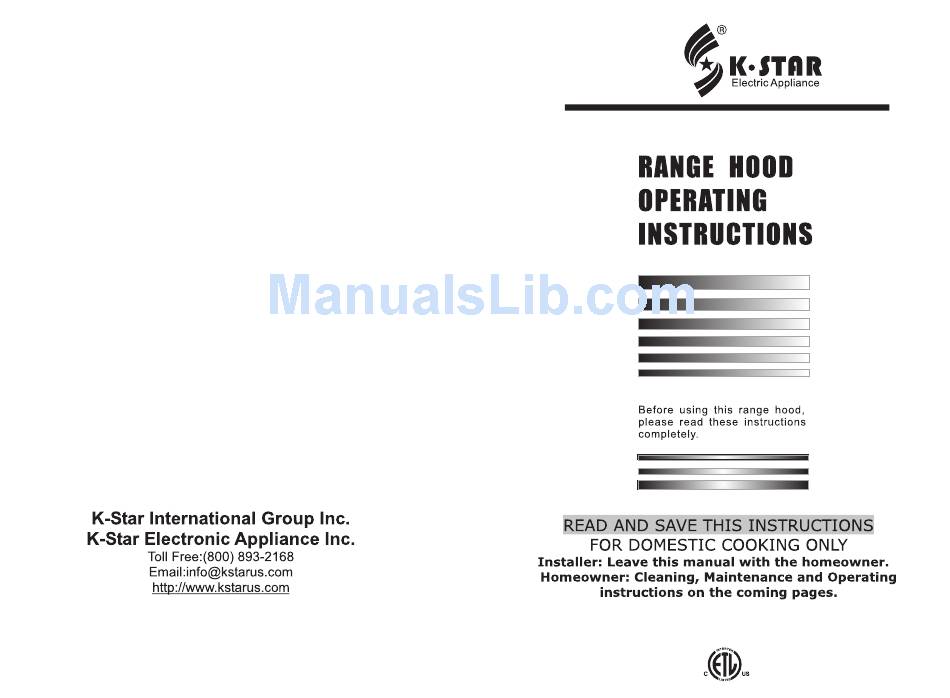

- Page 1 RANGE HOOD ITEM NO.: K1039/K1039A/K1039B REFERED MODEL NO.:10G1-2 4002621...
-
Page 3: Prepare The Hood
PREPARE THE HOOD Unpack hood and check contents. You should receive: 1 - Hood 1 - Installation Instructions 1 - Warranty Card 1 - Parts Bag containing: Adapter ( 8" to 6") 4 - Mounting Screws ( 1/2") - Mounting Screws ( 1-3/4") - Drywall Anchors 1 - Aluminum Flex Duct... - Page 4 DUCT(for horizontal discharge) The hoods feature 1(8" top round) is opening .Run ducwork between the hood location and roof cap . For the results, use a minimum unmber of transitions and elbows. STEP 1: PROTECT THE COOK TOP Put a thick, protective covering over counter top, cook top or range to protect from damage or dirt. STEP 2: CREATE WORK STATION (OPTIONAL) Have 2 pieces of wood about 2”...
- Page 5 STEP 3: PREPARE DUCTWORK & SINGLE OUTLET STEP 6: ATTACH THE HOOD Make sure you have a 15amp, 120V, 60Hz, single outlet on the left or right of the duct pipe (usually is on ¼ of cabinet width). Make sure duct pipe is ready to hook up to the range hood before beginning installation (8”...
- Page 6 STEP 9: INSTALL OIL TUNNEL OR OIL CONTAINER (NOT AVAILABLE FOR ALL MODELS) Oil Tunnel Delay Side View Power on/off Drop oil tunnel into recess support near rear of hood. Refer to the left picture Importance Notice: Step 10: Install baffle filters 1.POWER:Once"POWER"...
- Page 7 F. Remote Control Sensor: Remote control sensor receives infrared (IR) signal from the remote control. The maximum distance for IR data transmission is 10 feet and requires direct line of sight. The transmission distance may vary depending on temperature and remote control battery condition.
