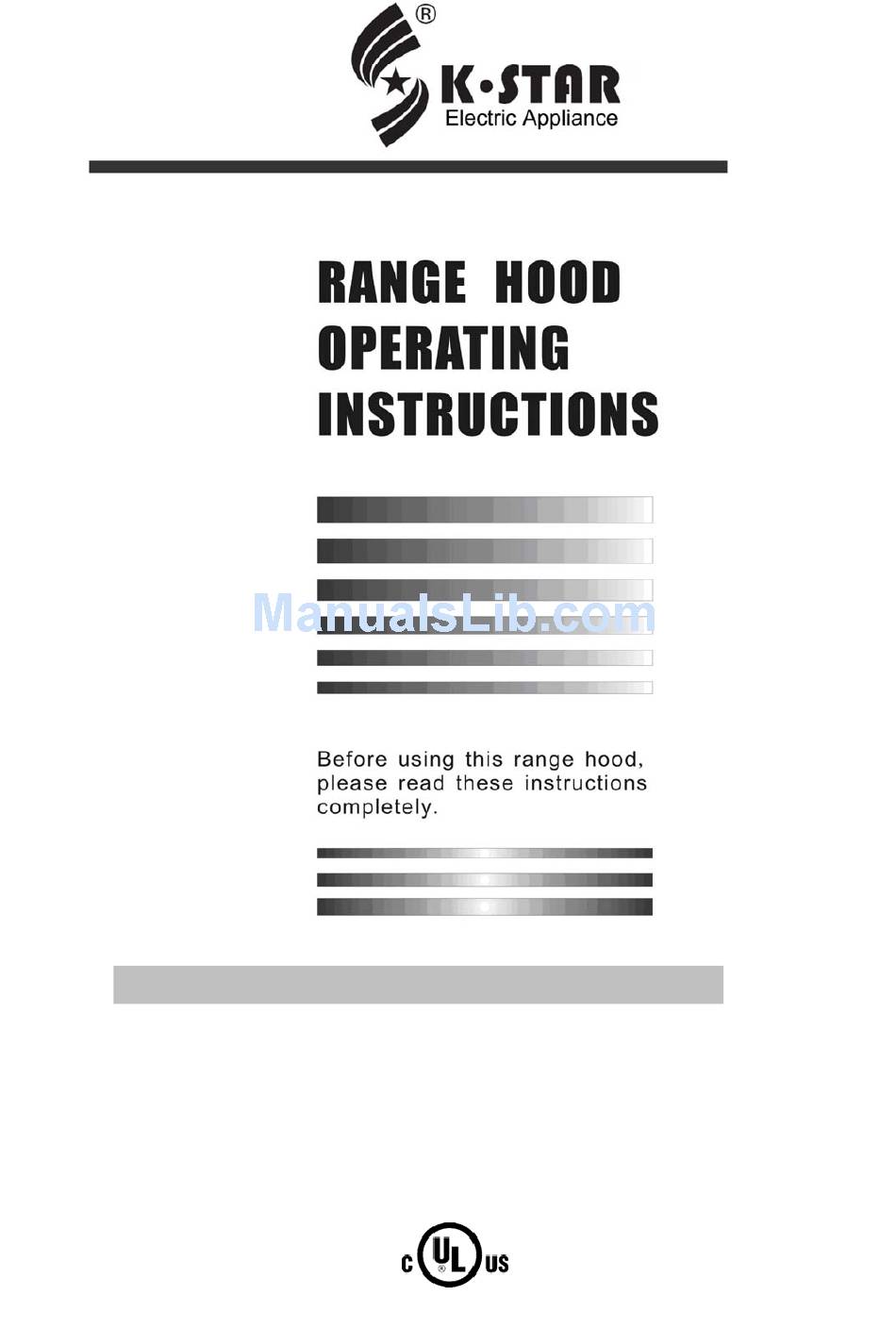

K-Star K1032 Operating Instructions Manual

Range hood
Hide thumbs Also See for K1032:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
READ AND SAVE THIS INSTRUCTIONS
FOR DOMESTIC COOKING ONLY
Installer: Leave this manual with the homeowner.
Homeowner: Cleaning, Maintenance and Operating
instructions on the coming pages.
RANGE HOOD ITEM NO.: K1032/K1032A
REFERED MODEL NO.: 3503E2
NUMBER: E312110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1032 and is the answer not in the manual?

Questions and answers

Related Manuals for K-Star K1032

Summary of Contents for K-Star K1032

  • Page 1 READ AND SAVE THIS INSTRUCTIONS FOR DOMESTIC COOKING ONLY Installer: Leave this manual with the homeowner. Homeowner: Cleaning, Maintenance and Operating instructions on the coming pages. RANGE HOOD ITEM NO.: K1032/K1032A REFERED MODEL NO.: 3503E2 NUMBER: E312110...
  • Page 2 INTENDED FOR DOMESTIC COOKING ONLY WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty. 2.
  • Page 3 CAUTION 1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. 2. Take care when using cleaning agents or detergents. 3.

  • Page 4: Prepare The Hood

    PREPARE THE HOOD Unpack hood and check contents. You should receive: 1 - Hood 1 - Installation Instructions 1 - Warranty Card 1 - Parts Bag containing: 1 - Vent (Rectangular-optional) 4 - Mounting Screws (4 x 35mm) 4 - Mounting Screws (4 x 8mm) 4 - Drywall Anchors 1 - Aluminum Flex Duct 2 - Safety screw (ST4 x30mm)
  • Page 5 WARNING Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes. The minimum hood distance above cooktop must not be less than 24’’. A maximum of 33” above cooktop is highly recommended for best capture of cooking impurities.
  • Page 6 B- Rear venting (horizontal) using horizontal rectangular duct vent 10”X31/4” Step 1: Prepare Range Hood - Remove unit from packaging - Position the unit on its back on a flat non abrasive surface - front facing you (See pic 1) - Remove the 2 filters to allow access to the inside of the unit (See Pic 1) - Cut tie wraps so wires are free to move and be relocated (See Pic 2) Pic 1...
  • Page 7 Step 3: Relocate motor exhaust at the rear of unit Position the unit on its back on a flat non abrasive surface – perpendicular to your working surface (See Pic 4) - Place hand to hold motor in position and ensure weight of motor is well supported (see Pic 4) - This will ensure screws don’t get bent or broken - Remove 4 screws that hold motor in place on the top side of the hood - Ensure the motor weight is well supported by your hand as the last screw in place may break under...
  • Page 8 Step 4: Install top vent plate and rear damper Re-install the plate removed in step 2 to block top venting hole Put plate in position and put in 4 screws from step 2 (see Pic 8) Install rectangular air damper outlet on the rear vent location (see Pic 9) Connect duct work to damper Use Duct Tape to ensure joint is sealed and air tight Pic 8...

  • Page 9: Install The Hood

    INSTALL THE HOOD Note: at least two people will be required to mount the hood. Method One: (PIC-A、PIC-B） 1. The cooker hoods should be placed at a distance of 24” – 33” from the cooking surface for best suction effect. 2.
  • Page 10 Method Two: (PIC C、PICD) 1. Mark or drill a small hole on the mounting position according to the space and dimension mentioned on PIC C 2. Add the one way valve to the outlet of the hood; install the hood under cabinet, then use the mounting screw (4x35mm) and the circle ring in the spare parts bag to fix the hood on the cabinet.

  • Page 11: Maintenance

    MAINTENANCE Proper maintenance of the Range Hood will assure proper performance of the unit. Filters filters must cleaned approximately once every 30 hours of operation (when the central segment on the display goes on or starts blinking). Use a warm detergent solution. Grease filters are dishwasher safe.

  • Page 12: Operation

    OPERATION Controls The hood is operated using the (4) push-buttons located at eye-level on the right hand corner of the hood. Electronic Button (Brighten words button and blue ring button) 1. Power: Switch on the power supply, and the machine enters standby status. 2.

  • Page 13: Halogen Bulbs

    HALOGEN BULBS ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY BEFORE CARRYING OUT ANY OPERATIONS ON THE APPLIANCE. To change bulbs: 1.Rotate the cover in anticlockwise, as shown. CAUTION: BULB MAY BE HOT, PLEASE ROTATE WHEN THE BULB IS COOL! 2.Replace with a Type JC, 12Volt, 20Watt Max, and G-4 Base bulb.
  • Page 14 K-Star International Group Inc. K-Star Electronic Appliance Inc. Toll Free:(800) 893-2168 Email:info@kstarus.com http://www.kstarus.com...

This manual is also suitable for:

K1032a
