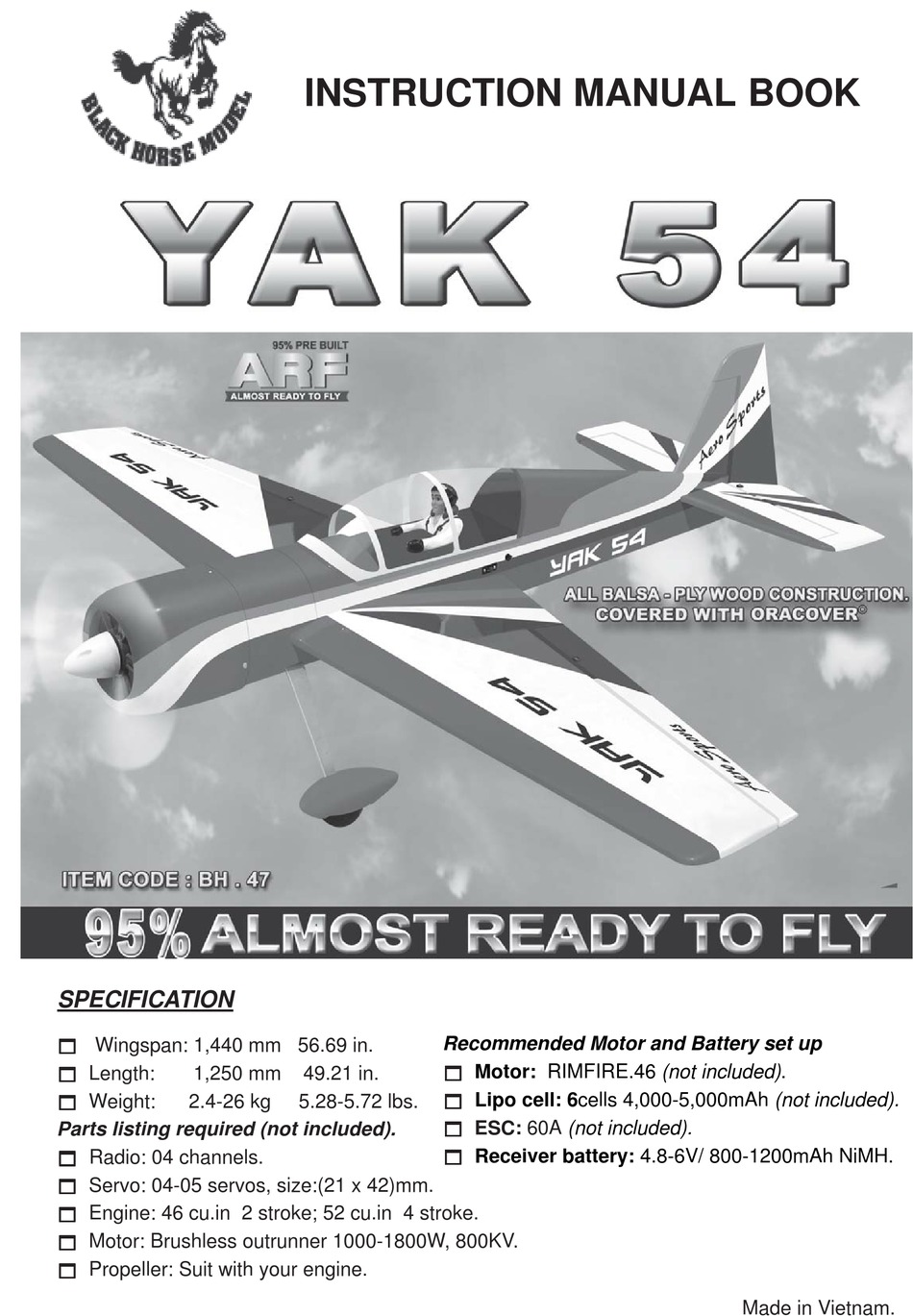

SPECIFICATION





Wingspan: 1,440 mm 56.69 in.





Length:
1,250 mm





Weight:
2.4-26 kg
Parts listing required (not included).





Radio: 04 channels.





Servo: 04-05 servos, size:(21 x 42)mm.





Engine: 46 cu.in 2 stroke; 52 cu.in 4 stroke.





Motor: Brushless outrunner 1000-1800W, 800KV.





Propeller: Suit with your engine.
INSTRUCTION MANUAL BOOK
Recommended Motor and Battery set up





49.21 in.





5.28-5.72 lbs.










Motor: RIMFIRE.46 (not included).
Lipo cell: 6cells 4,000-5,000mAh (not included).
ESC: 60A
(not included).
Receiver battery: 4.8-6V/ 800-1200mAh NiMH.
Made in Vietnam.
