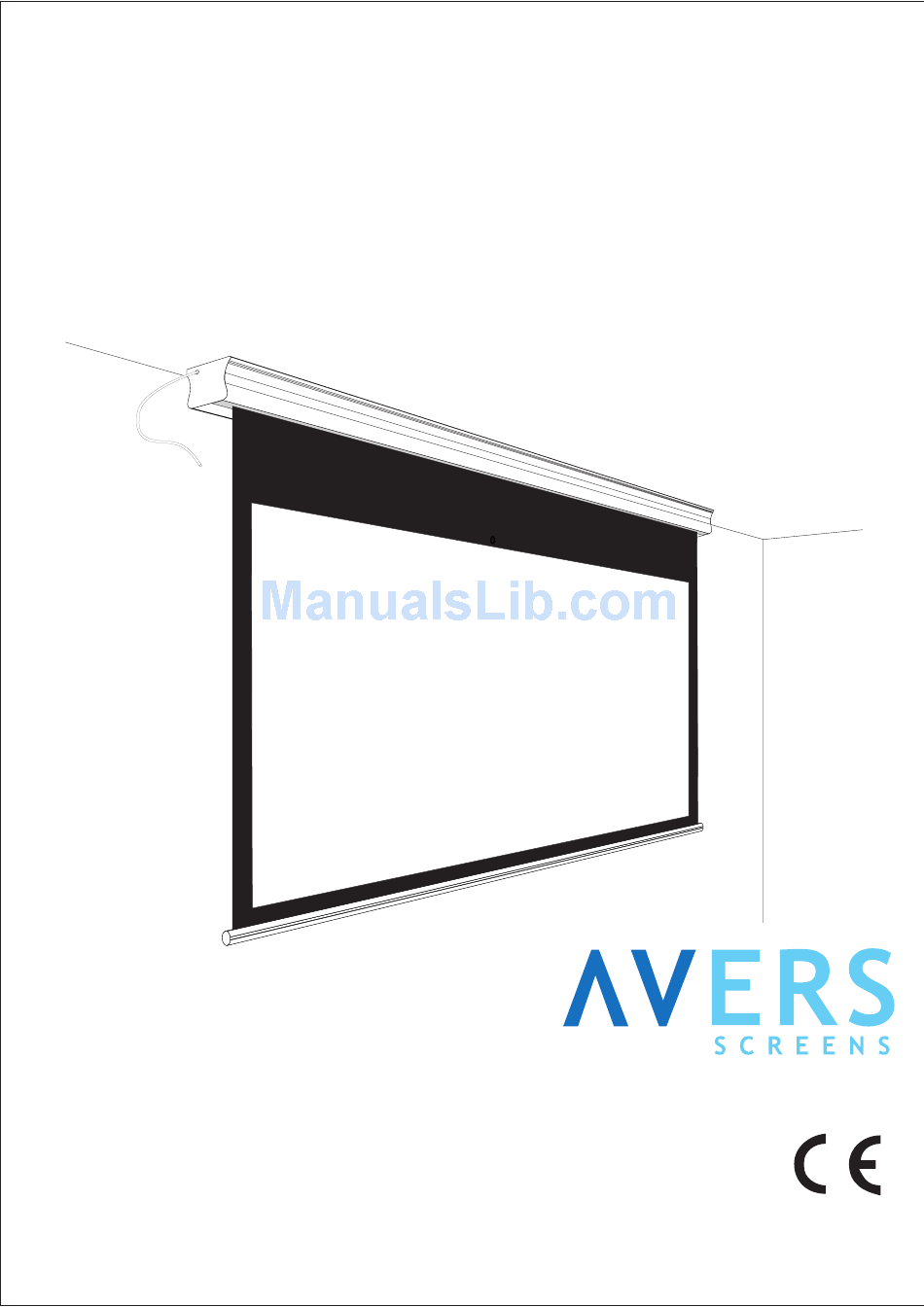

- Page 1 Electric projection screen Avers Cumulus X User’s manual Read these instructions carefully before operating the screen.
-
Page 2: Table Of Contents
Thank you very much for the purchase of our product. The manual booklet contains all operation information you may require to install properly and operate the screen. We hope it will help you to get the most performance and enjoyment of your new screen. Enjoy time with the Avers Screens product. SAFETY INFORMATION NOTICE: Important safety information. -
Page 3: Safety Rules
Always follow the instructions described in the operating manual. 1.1. Declaration of Conformity CE Manufacturer’s Dedlaration of ConformityCE AVERS Screens Sp. z o.o. Under it’s own responsibility declares: All screensand accessories mentioned below are manufactured in Polandaccording to the essential safety... -
Page 4: Product Specification
2. Product specification Electrically rolled projection screen designed for fixed installation at projection systems for business presentations and/or home cinema applications. Screen case made with aluminium alloy, decorative elements at the screen main body and bottom bar available optionally in colors: white, yellow, blue, green, brown, grey or black. Best picture quality can be reached when the selection of the type of projection surface and size will be optimal for the, projection device (projector) and projection conditions at the planed installation place. - Page 5 - New Coral (NC) – Rear projection white vinyl mono foil, gloss front side (projection), matt rear side, dedicated for rear projection with LCD and DLP projectors. Recommended for business presentations due to directional optical characteristics of the fabrics. Fabrics of screens bigger than 200cm in height is welded with 2 parts, welding line remains invisible during projection.
-
Page 6: Screen Installation
RF remote controller: Triggered transmitter: Dimensions: 110 x 58 x 20 mm Dimensions: 90 x 58 x 65 mm Power supply: battery 12V typ 23A Power supply: AC 220V, 50Hz 3. Screen installation 3.1. Installation precautions - Installation work should be carried out by a qualified technician in accordance with the instructions described below. - Fixed installation of the screen should be done with use of the screws and anchors suitable for the walls/ceilings materials at the installation place and the genuine installation brackets delivered with the screen. -
Page 7: Wall Installation
3.3. Wall installation - Appoint the location of the ceiling mount brackets fixing points. - Drill holes for anchors fixing the screen brackets to the ceiling. - Fix the screen wall brackets to the wall with anchors (see Picture 5). The mounting screws diameter should be not smaller than Ø8 mm. -
Page 8: Screen Programming
ATTENTION: Electric installation work should be carried out by a certified electrician. Screen Screen bl - blue (common) bl - blue (common) br - brown (live) br - brown (rolling down) yg - yellow-green (protective) yg - yellow-green (protective) bk - black (rolling up) Power line L1 - brown (live) Power line... -
Page 9: Rcx Remote Control System Programming
Regulation knob “1” (white) enables setting of the upper extreme position of the screen bottom bar: “-“ - means increasing the lenght of the fabrics is rolled down when the screen is rolled in, “+” - means decreasing the length of the fabrics is rolled down when the screen is rolled in. !!! IMPORTANT !!! Do not decrease (tuning knob 1+) the range of the rolled down surface. -
Page 10: Manual Operation
At other cases please contact service. 5. Warranty conditions 1) Avers screens warranty period is 24 months from the date of purchase confirmed with the original purchase invoice. 2) Extended warranty period for electric engine is 60 month. 3) Surety commits to fix free of charge any failures (component or production defects) of the product which appear during warranty period.
