Electric projection screen
Avers Solar Pro
User's manual
Read these instructions carefully before operating the screen.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solar Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avers Screens Solar Pro

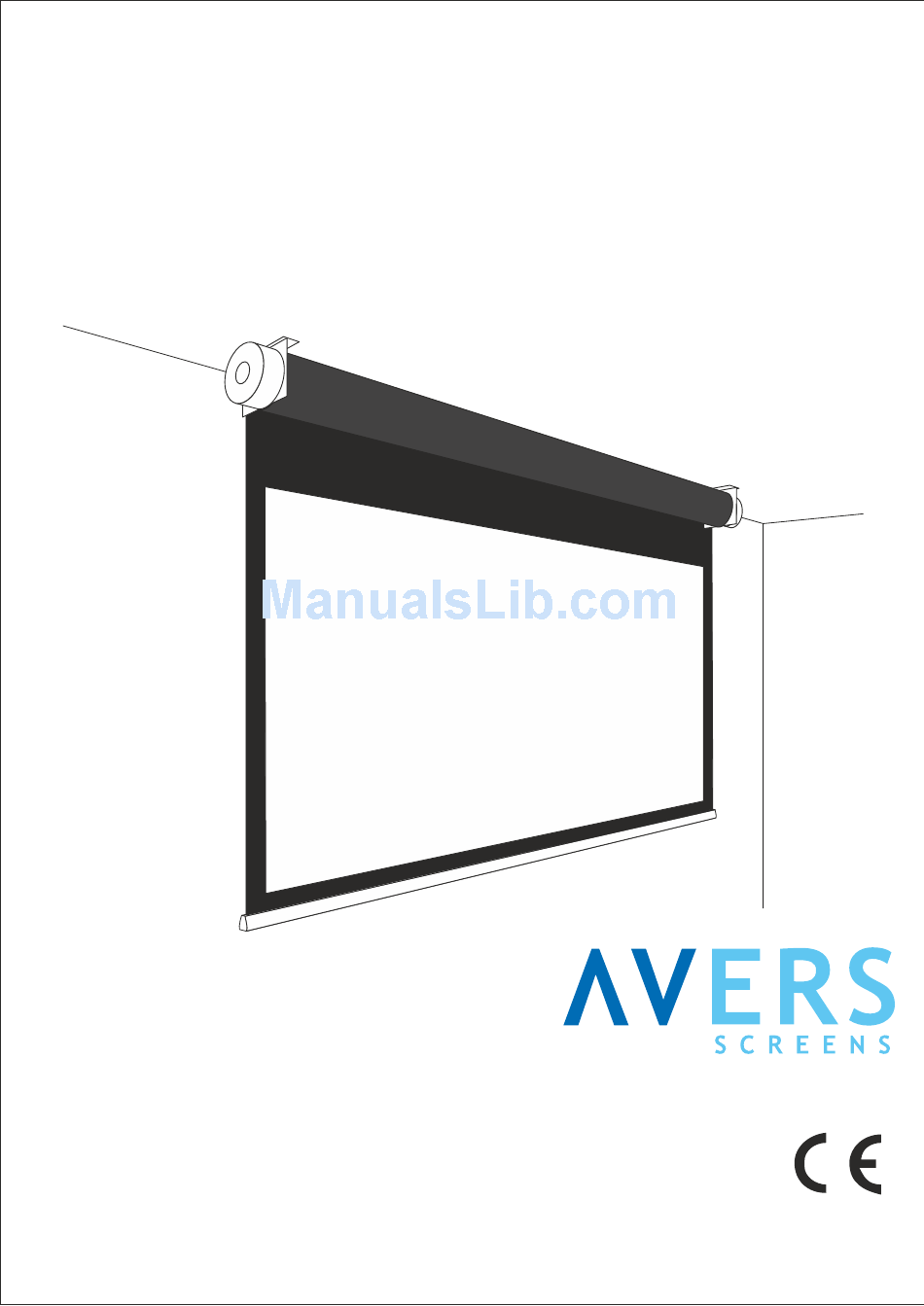

  • Page 1 Electric projection screen Avers Solar Pro User’s manual Read these instructions carefully before operating the screen.
  • Page 2: Table Of Contents

    Thank you very much for the purchase of our product. The manual booklet contains all operation information you may require to install properly and operate the screen. We hope it will help you to get the most performance and enjoyment of your new screen. Enjoy time with the Avers Screens product. SAFETY INFORMATION NOTICE: Important safety information.
  • Page 3: Safety Rules

    ź Do not touch the power cable and the power plug with wet hands. ź Always follow the instructions described in the operating manual. 1.1. Declaration of Conformity CE Avers Screens Sp. z o.o. Al. Jerozolimskie 424A 05-800 Pruszków, Poland Manufacturer’s Declaration of Conformity CE No.
  • Page 4: Product Specification

    2. Product specification Electrically rolled projection screen designed for fixed installation at projection systems for business presentations and/or home cinema applications. Screen case made with aluminium alloy, decorative element at the bottom bar available optionally in colors: white, yellow, blue, green, brown, grey or black. Best picture quality can be reached when the selection of the type of projection surface and size will be optimal for the, projection device (projector) and projection conditions at the planed installation place.
  • Page 5: Screen Installation

    Dimensions of projection screens. Screen width Viewing area Screen Screen case size Projection fabrics Top belt Version [cm] size [cm] aspect W x H x D [cm] max. length width [cm] weigth ratio [cm] 440 x 247,5(275) 16:9(16:10) 332,5 440 x 330 440 x 247,5(275) 16:9(16:10) 461 x 19,5 x 20,2...
  • Page 6 Recommended diameter of mounting screws is 8 mm. Type of used anchors should be selected according to the Ø material of the ceiling. Length of anchors is determined by weight of the screen, total bearing capacity of 4 anchors should exceed 150% of screen net weight.
  • Page 7 Picture 4 Screen ceiling installation - phase 1 Picture 5 Screen ceiling installation - phase 2...
  • Page 8 Picture 6 Screen ceiling installation - phase 3 1- threaded rods fixing nuts 2- screen levelling nuts 3- screen fixing nuts Picture 7 Screen ceiling installation - phase 4 Check the screen’s rolling tube leveling before first screen’s motor operation. Do not use the screen if it is not properly installed (leveled).
  • Page 9: Electric Installation

    Rys.8 Instalacja ekranu na suficie - faza 5 Rys.9 Instalacja ekranu na suficie - faza 6 3.4. Electric installation ATTENTION: Electric installation work should be carried out by a certified electrician. - Lead out the power cables to the place of installation of the wall switch and between wall switch and screen - Screen power line should be fused with 1A fuse.
  • Page 10: Screen Programming

    Rolling down the screen behind the mark can damage the screen. Avers screens are invented and manufactured to provide best possible projection surface flatness when rolled out to the designed height. Surface flatness would be affected if the screen is not rolled out completely or is rolled out...
  • Page 11: Screen Operation

    At other cases please contact service. 5. Warranty conditions 1) Avers screens warranty period is 24 months from the date of purchase confirmed with the original purchase invoice. 2) Extended warranty period for electric engine is 60 month. 3) Surety commits to fix free of charge any failures (component or production defects) of the product which appear during warranty period.
  • Page 12 Manufactured after 13.08.2005 This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. Disposing of this product correctly will help to save valuable resources and prevent any potentialnegative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
