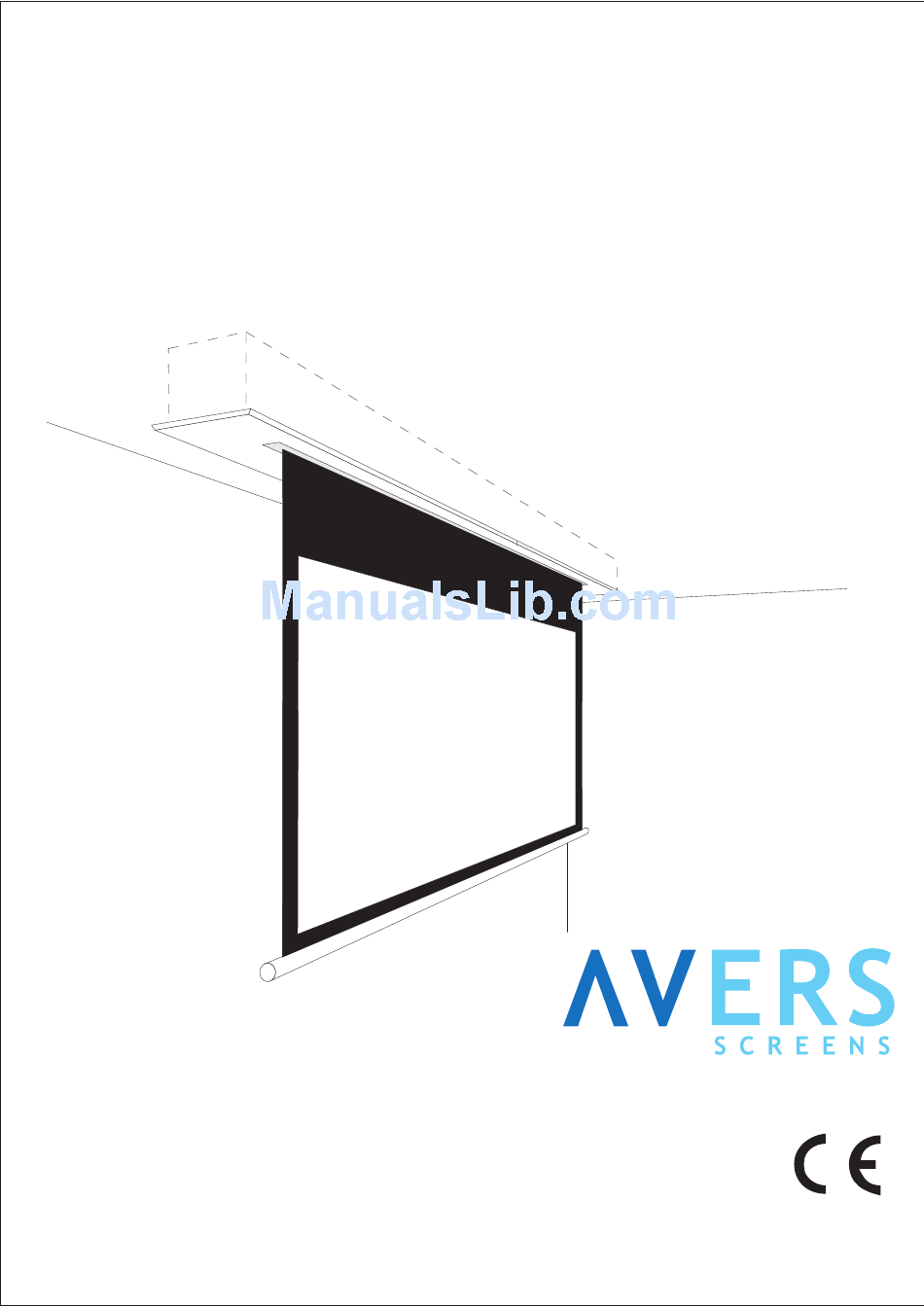

- Page 1 Electric projection screen Avers Contour User’s manual Read these instructions carefully before operating the screen.
-
Page 2: Table Of Contents
2) Do not open the casing of the device in order to avoid possible electric shock. There are not any user operated parts inside the case of the screen. All service work can be done by Avers Authorized Service Center personnel only. -
Page 3: Safety Rules
Always follow the instructions described in the operating manual. 1.1. Declaration of Conformity CE Manufacturer’s Dedlaration of ConformityCE AVERS Screens Sp. z o.o. Under it’s own responsibility declares: All screensand accessories mentioned below are manufactured in Polandaccording to the essential safety... -
Page 4: Product Specification
2. Product specification Electrically rolled projection screen designed for fixed installation at projection systems for business presentations and/or home cinema applications. Best picture quality can be reached based when the selection of the projection surface type and size will be optimal for the, projection device (projector) and projection conditions at the planed installation. Optional remote control system can significantly improve comfort of use of the screen. -
Page 5: Screen Installation
Dimensions of projection screens. Screen width Viewing area Screen Screen case size Projection fabrics Top belt Version size [cm] [cm] aspect W x H x D max. length [cm] width [cm] [cm] weigth ratio ceiling modul masking modul 170 x 95,6 16:9 170 x 127,5 199,1 x 11 x 10,6... - Page 6 2034 mm for Contour 18xxx 2334 mm for Contour 21xxx 2634 mm for Contour 24xxx Pic.1 Installation of the rods and anchors in the ceiling Pic.2 Ceiling modul installation Pic.3 Screen module installatiuon Rys.4 Masking module installation - Modify the recessed ceiling checkerwork to create rectangular whole of 106 x W+191 mm dimensions, (W - screen fabrics width in milimeters).
-
Page 7: Screen Installation At Cardboard-Plaster Recessed Ceiling
3.3. Screen installation in the cardboard-plaster recessed ceiling. - Trace the shape of the ceiling module installation whole. Cut out the whole in the recessed ceiling according to the traced shape. - Slot up the ceiling module into the prepared whole and fix it with the installation springs. 1991 mm for Contour 18xxx 2291 mm for Contour 21xxx 2591 mm for Contour 24xxx... -
Page 8: Electric Installation
3.4. Electric installation. ATTENTION: Electric installation work should be carried out by a certified electrician. - Lead out the power cables to the place of installation of the wall switch and between wall switch and screen. - Screen power line should be fused with 1A fuse. - Switch off the screen power line during installation work. -
Page 9: Screen Operation
At other cases please contact service. 5. Warranty conditions 1) Avers screens warranty period is 24 months from the date of purchase confirmed with the original purchase invoice. 2) Extended warranty period for electric engine is 60 month. 3) Surety commits to fix free of charge any failures (component or production defects) of the product which appear during warranty period.
