Electric projection screen
Avers Akustratus 2 Tension
User's manual
Read these instructions carefully before operating the screen.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Akustratus 2 Tension and is the answer not in the manual?

Questions and answers

Summary of Contents for Avers Screens Akustratus 2 Tension

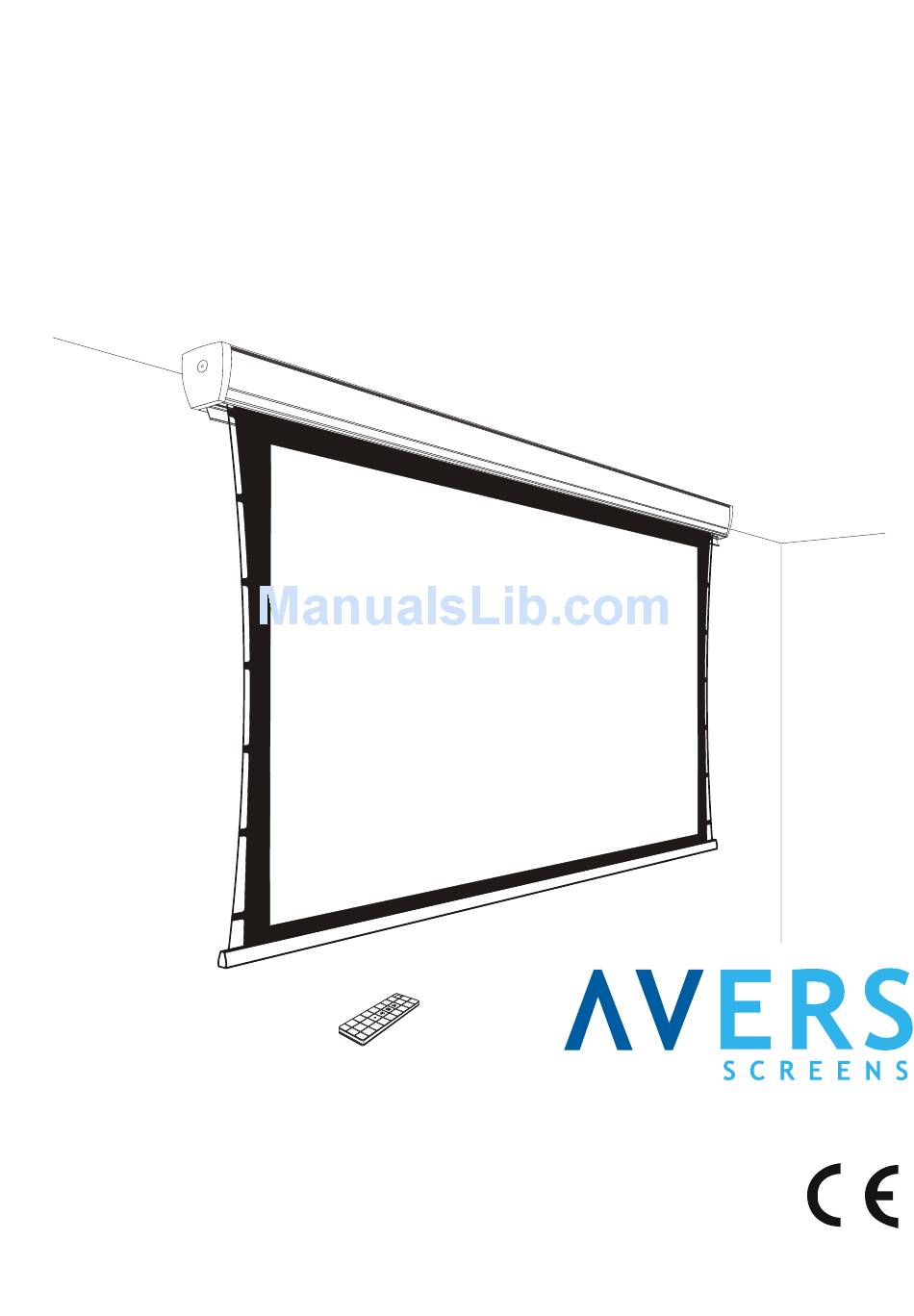

  • Page 1 Electric projection screen Avers Akustratus 2 Tension User’s manual Read these instructions carefully before operating the screen.
  • Page 2: Table Of Contents

    Thank you very much for the purchase of our product. The manual booklet contains all operation information you may require to install properly and operate the screen. We hope it will help you to get the most performance and enjoyment of your new screen. Enjoy time with the Avers Screens product. SAFETY INFORMATION NOTICE: Important safety information.
  • Page 3: Safety Rules

    1. SAFETY RULES SAFETY INFORMATION NOTICE: Important safety information. It is important for the safety of persons to follow these instructions. After reading the manual, please save it just in case of need in the future Safety rules for screen operation Do not allow children to play with the fixed controls (remote control).
  • Page 4: Declaration Of Conformity Ce

    1.1. Declaration of Conformity CE Manufacturer’s Declaration of Conformity CE AVERS Screens Sp. z o.o. Under it’s own responsibility declares: All screensand accessories mentioned below are manufactured in Polandaccording to the essential safety requirements of Council Directive 98/79/WE Projection screens: Akustratus 2, Stratus 2, Focus, Cumulus X, Solar, Solaris, Contour, Altus,...
  • Page 5: Technical Data

    2.2 Technical Data - Matt White (MW) – a special screen dedicated polyester fabric double side covered with vinyl, black back surface and white front (projection) surface, recommended for application with DLP and LCD multimedia projectors. Neutral color of the surface enables projection from any directions. Gain: 1.0, viewing angle: 150 degrees, thickness: 0,35 mm.
  • Page 6: Screen Installation

    3. Screen installation 3.1. Installation precautions - Installation work should be carried out by a qualified technician in accordance with the instructions described below. - Fixed installation of the screen should be done with use of the screws and anchors suitable for the walls/ceilings materials at the installation place and the genuine installation brackets delivered with the screen.
  • Page 7: Wall Installation

    3.3. Wall installation - Appoint the location of the ceiling mount brackets fixing points. - Drill holes for anchors fixing the screen brackets to the ceiling. - Fix the screen wall brackets to the wall with anchors (see Picture 5). The mounting screws diameter should be not smaller than Ø8 mm.
  • Page 8: Screen Programming

    - Manual wall steering switch should be installed at the place meeting the following conditions: a) installation150-180 cm above the floor level, b) the screen should be visible by the wall switch operator during the screen operation, c) wall switch operator cannot stay in reach of any of the screen’s moving parts during the screen operation . d) the wall switch must be visible from the each part of the room irrespective of the screen position.
  • Page 9: Wireless Remote Control System Programming

    Tensioning wires were setup during screen manufacturing optimally. It would be necessary to modify the power of the tensioning wires after few years of screen use. Finetuning could be performed with 2mm hexagonal wrench applied into the regulation holes located at bottom bar end caps. Deterioration of projection surface flatness wil be affected as a result of improper finetuning of tensioning wires.
  • Page 10: Screen Operation

    4. Screen operation Projection screen AVERS Akustratus 2 can be operated manually or automatically. It is possible to use paralel both methods of screen operation . !! UWAGA !! Nieu ywany ekran projekcyjny powinien pozostwać zwinięty. Pozostawianie ekranu rozwiniętego przez dłu szy okres czasu mo e doprowadzić...
  • Page 11: Warranty Conditions

    5. Warranty conditions 1) Avers screens warranty period is 24 months from the date of purchase confirmed with the original purchase invoice. 2) Extended warranty period for electric engine is 60 month. 3) Surety commits to fix free of charge any failures (component or production defects) of the product which appear during warranty period.
  • Page 12 Manufactured after 13.08.2005 This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. Disposing of this product correctly will help to save valuable resources and prevent any potentialnegative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
