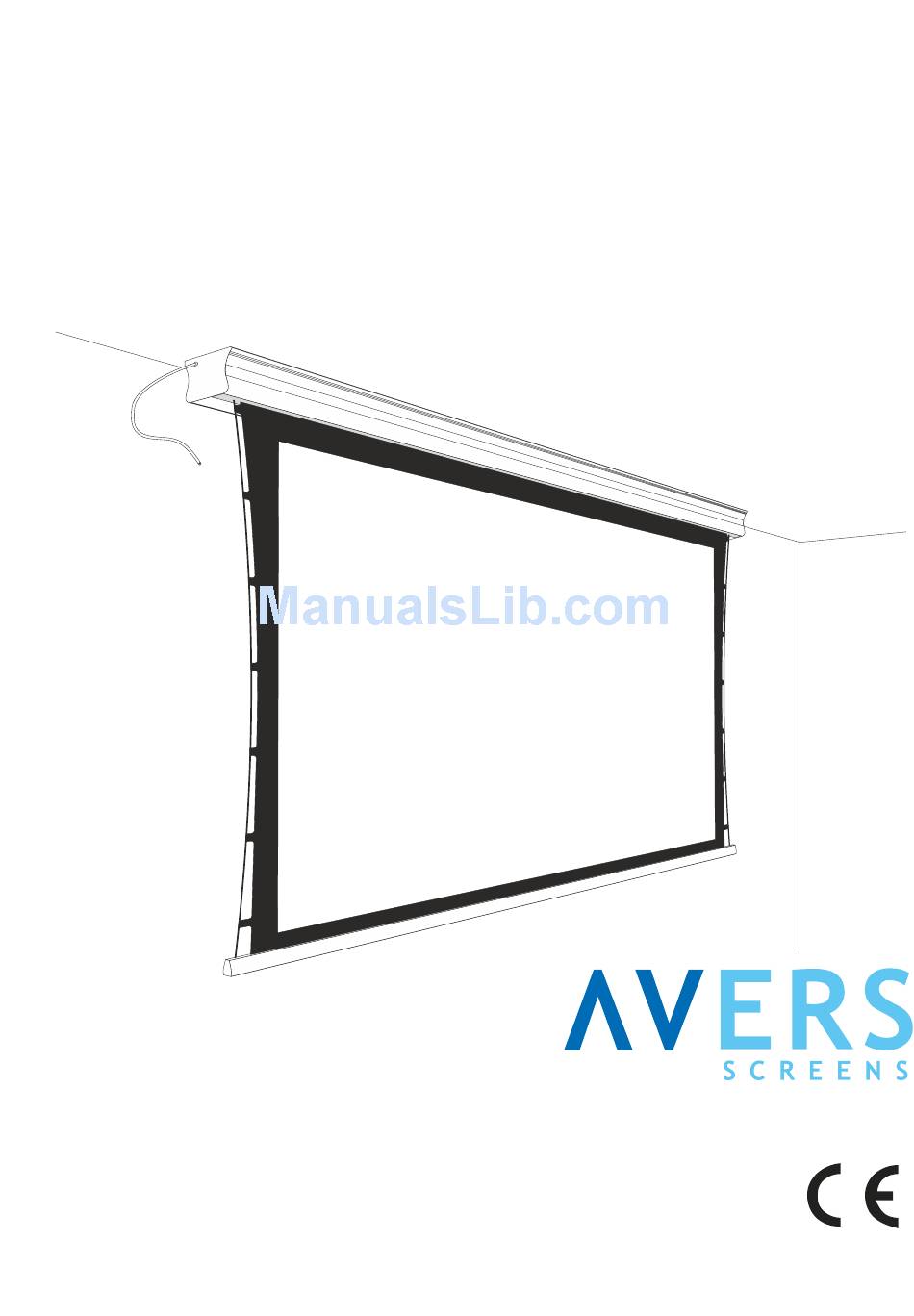

- Page 1 Electric projection screen Avers Cumulus X Tension User’s manual Read these instructions carefully before operating the screen.
-
Page 2: Table Of Contents
Thank you very much for the purchase of our product. The manual booklet contains all operation information you may require to install properly and operate the screen. We hope it will help you to get the most performance and enjoyment of your new screen. Enjoy time with the Avers Screens product. SAFETY INFORMATION NOTICE: Important safety information. -
Page 3: Safety Rules
EMC Directive 214/35/EC and LVD Directive 2014/30/EC Projection screens series : Stratus 2, Stratus 2 Tension, Akustratus 2, Akustratus 2 Tension, Cumulus X, Cumulus X Tension, Solar, Solaris, Solaris Tension, Contour, Contour Tension, Cirrus X, Nimbus Projector brackets: Alumount, Promount, SimpleMount, Shortmount, Simlift... -
Page 4: Product Specification
2. Product specification Electrically rolled projection screen designed for fixed installation at projection systems for business presentations and/or home cinema applications. Side edges of the projection surface are wire tensioned to guarantee better flatness and improove picture quality Best picture quality can be reached based when the selection of the projection surface type and size will be optimal for the, projection device (projector) and projection conditions at the planed installation. -
Page 5: Screen Installation
Dimensions of projection screens. Picture area Picture area Picture Screen case size Projection fabrics Top belt Version width size [cm] aspect W x H x D max. length [cm] width [cm] weigth [cm] [cm] ratio 180 x 101,2 16:9 212 x 12,3 x 12,8 141,2 180 x 112,5 16:10... -
Page 6: Ceiling Installation
3.2. Ceiling installation - Appoint the location of the ceiling mount brackets fixing points. - Drill holes for anchors fixing the screen brackets to the ceiling. - Fix the ceiling brackets with anchors (see picture 1). The mounting screws diameter should be 6 mm. -
Page 7: Electric Installation
The mounting screws diameter should be 8 mm. In case of the cartboard-plaster walls installation, use cartboard- Ø plaster dedicated steel anchors with 8mm diameter screws. Ø D = (3/4W+55)±W/6 W - screen width in milimeters Picture 5 Fixing screen wall brackets Picture 6 Screen wall installation - phase 1 - Fix the ceiling brackets and the wall brackets with the screws supplied with the screen. -
Page 8: Screen Programming
ATTENTION: Electric installation work should be carried out by a certified electrician. Screen Screen bl - blue (common) bl - blue (common) br - brown (live) br - brown (rolling up) żz yg - yellow-green (protective) yg - yellow-green (protective) bk - black (rolling down) żz Power line... -
Page 9: Delta Remote Control System Programming
Regulation knob “2” (located closer to the back of the screen) enables setting of the bottom extreme position of the screen bottom bar: “+“ - increase the lenght of the fabrics is rolled down when the screen is rolled out, “-”... -
Page 10: Screen Operation
At other cases please contact service. 5. Warranty conditions 1) Avers screens warranty period is 24 months from the date of purchase confirmed with the original purchase invoice. 2) Extended warranty period for electric engine is 60 month. 3) Surety commits to fix free of charge any failures (component or production defects) of the product which appear during warranty period. - Page 12 Wersja D01.02.2017...
