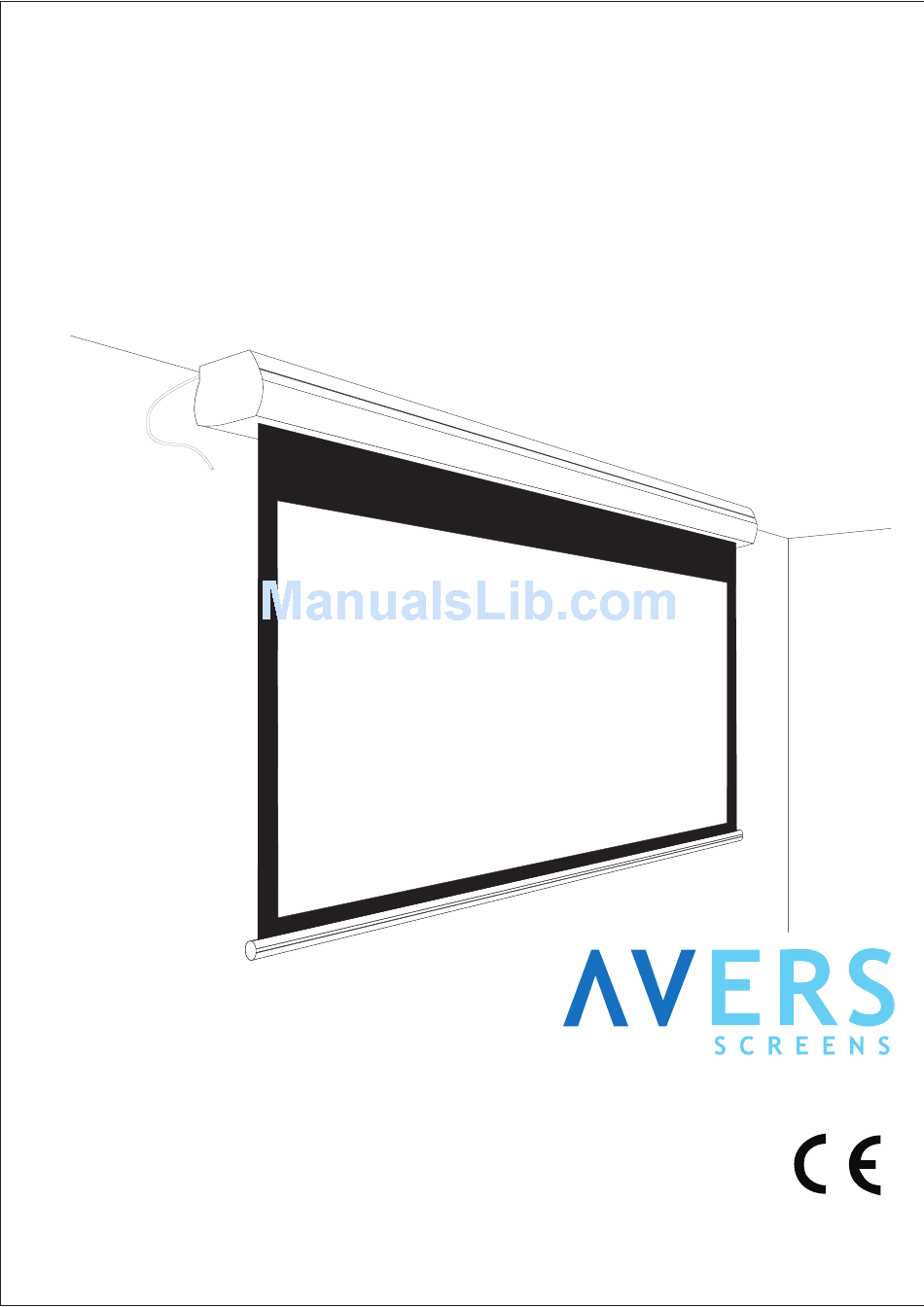

- Page 1 Electric projection screen Avers Solaris User’s manual Read these instructions carefully before operating the screen.
-
Page 2: Table Of Contents
2) Do not open the casing of the device in order to avoid possible electric shock. There are not any user operated parts inside the case of the screen. All service work can be done by Avers Authorized Service Center personnel only. -
Page 3: Safety Rules
All screensand accessories mentioned below are manufactured in Polandaccording to the essential safety requirements of Council Directive 98/79/WE Projection screens: Stratus, AkuStratus, Focus, Cumulus X, Solar, Solaris, Contour, Altus, Cirrus CL, Cirrus X, Cirrus X crank Projector mount brackets: Alumount, Promount, SimpleMount, Prolift... -
Page 4: Product Specification
2. 2. Product specification Electrically rolled projection screen designed for fixed installation at projection systems for business presentations and/or home cinema applications. Screen case made with aluminium alloy, decorative element at the bottom bar available optionally in colors: white, yellow, blue, green, brown, grey or black. Best picture quality can be reached when the selection of the type of projection surface and size will be optimal for the, projection device (projector) and projection conditions at the planed installation place. -
Page 5: Screen Installation
Dimensions of projection screens. Screen width Viewing area Screen Screen case size Projection fabrics Top belt Version [cm] size [cm] aspect W x H x D [cm] max. length width [cm] weigth ratio [cm] 340 x 191,3 16:9 241,5 33,0 340 x 255 272,5 34,0... -
Page 6: Wall Installation
Check the screen case leveling before first unrolling the screen. Do not use the screen if it is not properly installed (leveled). D = (3/4W+55)±W/6 W - screen width in milimeters Picture 1 Fixing screen ceiling brackets Picture 2 Screen ceiling installation - phase 1 Picture 3 Screen ceiling installation - phase 2 Picture 4 Screen ceiling installation - phase 3 3.3. -
Page 7: Electric Installation
Picture 7 Screen wall installation - phase 2 Picture 8 Screen wall installation - phase 3 - Fix the ceiling brackets and the wall brackets with the screws supplied with the screen. - Slide screen fixing bolts into the casette chanels (see Picture 6). - Twist the screen casette and slide the chanel onto the ceiling brackets front hinge (see Picture 7). -
Page 8: Screen Programming
- Connect trigger signal transmitter to the wall outlet you plan to connect projector power cord. - Apply projector power cord wall plug to the power outlet located at the trigger signal transmitter. Screen bl - blue (common) br - brown (live) yg - yellow-green (protective) Power line L1 - brown (live) -
Page 9: Screen Operation
4.3. Screen maintenence Pojection screen Avers do not require periodical service maintenance. Clean dust from the screen case and fabrics with dry soft cloths. If needed use moisturized cloth with soft detergent to remove stains. After stain removal dry the cleaned... -
Page 10: Warranty Conditions
At other cases please contact service. 5. Warranty conditions 1) Avers screens warranty period is 24 months from the date of purchase confirmed with the original purchase invoice. 2) Extended warranty period for electric engine is 60 month. 3) Surety commits to fix free of charge any failures (component or production defects) of the product which appear during warranty period. - Page 12 Manufactured after 13.08.2005 This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. Disposing of this product correctly will help to save valuable resources and prevent any potentialnegative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
