3. ELECTRICAL DATA

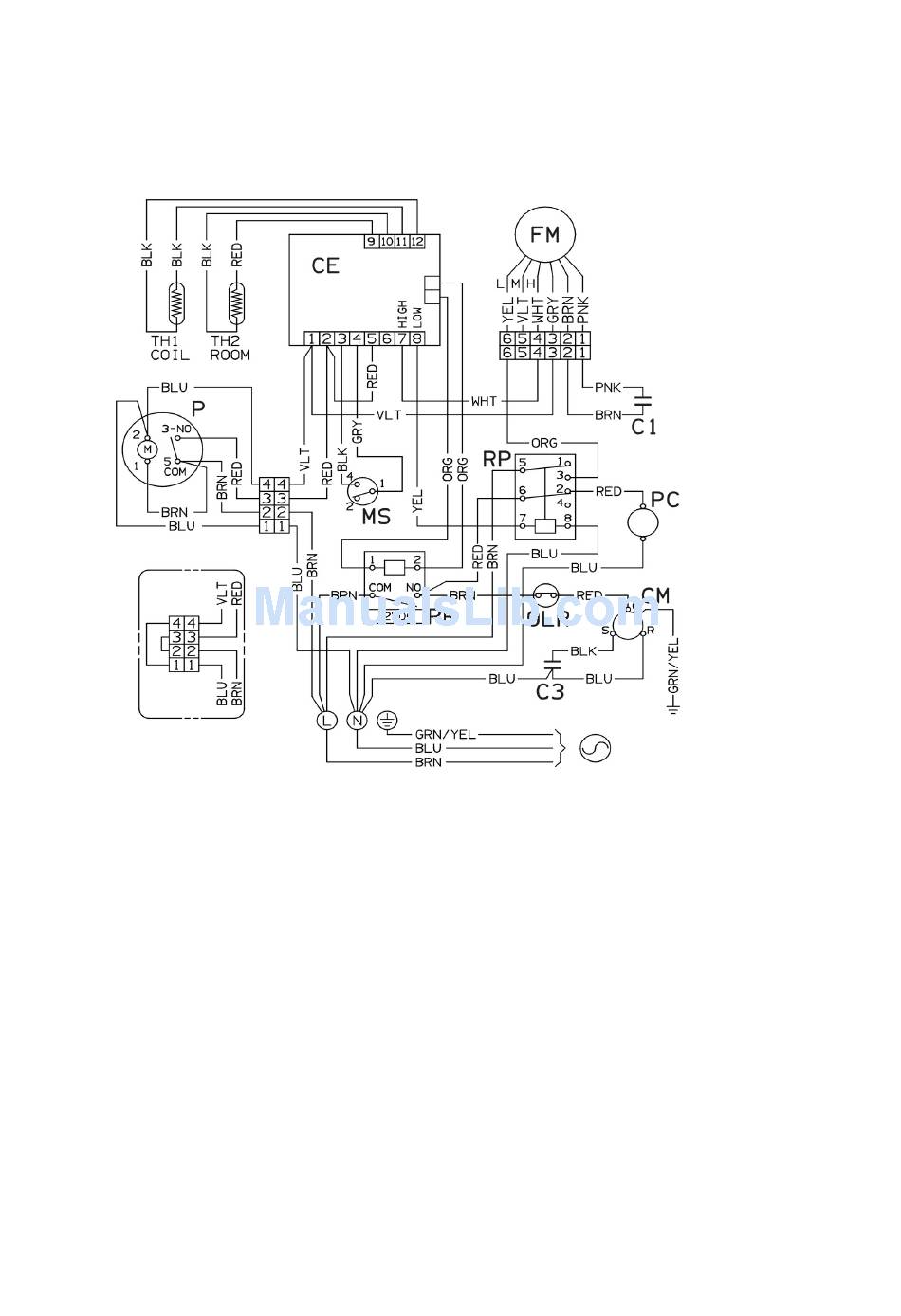

3-1 Electric Wiring Diagram
COMPRESSOR
CAPACITOR
ELECTRIC HEATER
FAN MOTOR
OVERLOAD PROTECTOR
ELECTRONIC CONTROL
COMPRESSOR RELAY
CONDENSATE PUMP
PUMP RELAY
DEHUMIDIFIER SWITCH
FLOAT MICROSWITCH
ELECTRIC HEATER RELAY
SENSOR
THERMOFUSE
SAFETY THERMOSTAT
PROGRAMMER
CM/C
Cx
RE
FMI/MV
OLR/K
CE
PR/RC
PC
RP
ID
MS
RR
TH1/S
TF
TS
P
7
4,9
Legend of colors
BLACK
BLUE
BROWN
GREEN/YELLOW
GRN/YEL
ORANGE
RED
WHITE
YELLOW
GREEN
PINK
32
BLK
BLU
BRN
ORG
RED
WHT
YEL
GRN
PNK
