Baumatic BU676GL-EU 60 Instruction Manual

60/90 cm cooker hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

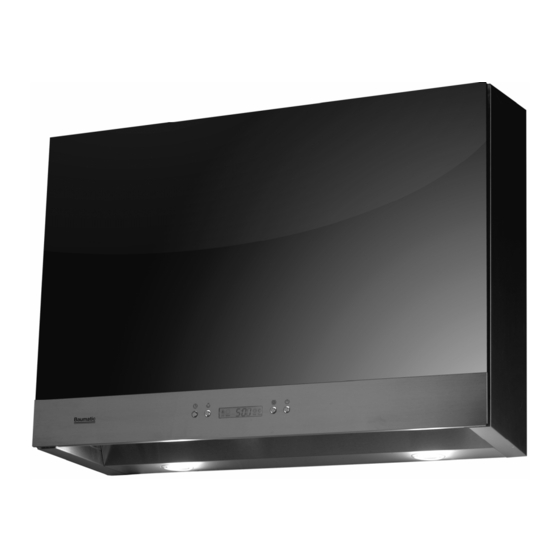

BU676GL-EU 60 cm
Cooker hood
BU976GL-EU 90 cm
Cooker hood
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BU676GL-EU 60 and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BU676GL-EU 60

Summary of Contents for Baumatic BU676GL-EU 60

  • Page 1 BU676GL-EU 60 cm Cooker hood BU976GL-EU 90 cm Cooker hood...
  • Page 2 User Manual for your Baumatic BU676GL-EU 60 cm Cooker hood in stainless steel and glass BU976GL-EU 90 cm Cooker hood in stainless steel and glass NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance.

  • Page 3: Table Of Contents

    5 – 7 Specifications of your cooker hood 8 – 9 BU676GL-EU BU976GL-EU Optional extras (both models) Using your Baumatic cooker hood 10 - 12 Before first use To use your cooker hood Setting the time of day Setting the fan speed 11 –...

  • Page 4: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.
  • Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note: Your cooker hood is designed to remove cooking odours from the room and not steam. o Warning - Always ensure that the cooker hood been...

  • Page 8: Specifications Of Your Cooker Hood

    Specifications of your cooker hood BU676GL-EU PRODUCT DIMENSIONS: Height: 540 mm Width: 600 mm Depth: 327 mm Your stainless steel cooker hood is fitted with: o High extraction tangential motor o Push button control operation o 3 Speeds o 1 Metallic grease filter o 2 lights Extraction capacity: 750 m³/hr...

  • Page 9: Bu976Gl-Eu

    MODEL NUMBER CARBON FILTER REQUIRED BU976GL-EU Optional extras (both models) DK5 1 Metre length Ducting Kit 125 mm Ø. DK10 3 Metre length Ducting Kit 125 mm Ø with flat channelling included. CQ3SS Decorative chimney sections o Available from the Baumatic Spares Department.

  • Page 10: Using Your Baumatic Cooker Hood

    Using your Baumatic cooker hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner and polish on ALL of the stainless steel areas of your cooker hood, before it is used for the first time.

  • Page 11: Setting The Time Of Day

    Setting the time of day o After the appliance is connected to your mains supply, press the ON/OFF button to switch the hood on, the LED display backlight will switch on. If no other button is pushed within 30 seconds, then the backlight will go out.

  • Page 12: The Cut Off Timer

    o To switch the fan off, press the ON/OFF button. o When you next switch on the cooker hood using the ON/OFF button, it will remember the operating speed that it was last used at. The cut off timer o Whilst the cooker hood is in use, if you press the timer button the number “12:00”...

  • Page 13: Cleaning Your Baumatic Cooker Hood

    Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT HAVE SWITCHED YOUR COOKER HOOD OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. Cleaning o Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth.

  • Page 14: Maintenance

    Maintenance Removing and cleaning the grease filter o Lift up the cover that sits over the grease filter (as shown in the line drawing above). o Remove grease filter pulling down on the handle and pulling it away from the cooker hood.

  • Page 15: Changing A Light Bulb

    o Close the cover that sits over the grease filter. o IMPORTANT: Let the grease filter dry thoroughly before refitting it in the cooker hood. Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 16: Fitting The Carbon Filters

    Fitting the carbon filters If the appliance is being used to be used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 17: Installation

    Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filter.

  • Page 18: Before Beginning Installation

    o As the colours of the wires in the appliance’s mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows: o The blue wire must be connected to the terminal marked “N” (neutral), or coloured black.

  • Page 19: Installing Your Cooker Hood

    o Do not tile, grout or silicone this appliance to the wall. This appliance is designed to be surface mounted only. Installing your cooker hood IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE.
  • Page 20 2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B. 3) Using a drill bit with an 8 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert rawl plugs into all of the holes that you have drilled.
  • Page 21 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood. Fully tighten the anchoring screws into the wall.

  • Page 22: Connecting To External Ducting

    Connecting to external ducting 8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours.
  • Page 23 10) Lift chimney section (D) upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurements of both sides of chimney section (D) on the wall with a pencil and then remove chimney section (D).
  • Page 24 12) Using an 8 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert rawl plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section (C) to the hood and fix it onto the hood using the two screws that are supplied.

  • Page 25: Completing The Installation

    Completing the installation If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the “Fitting the carbon filters” section on page 16. The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood.

  • Page 26: Troubleshooting

    Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting Baumatic Customer Care Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly.
  • Page 27 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

  • Page 28: Contact Details

    Czech Republic Baumatic CR spol s.r.o. Průmyslová zóna Sever 696 460 11 Liberec 11 United Kingdom Czech Republic Baumatic Ltd., Baumatic Buildings, +420 483 577 200 6 Bennet Road, Reading, Berkshire www.baumatic.cz RG2 0QX United Kingdom Slovakia Baumatic Slovakia, s.r.o.
