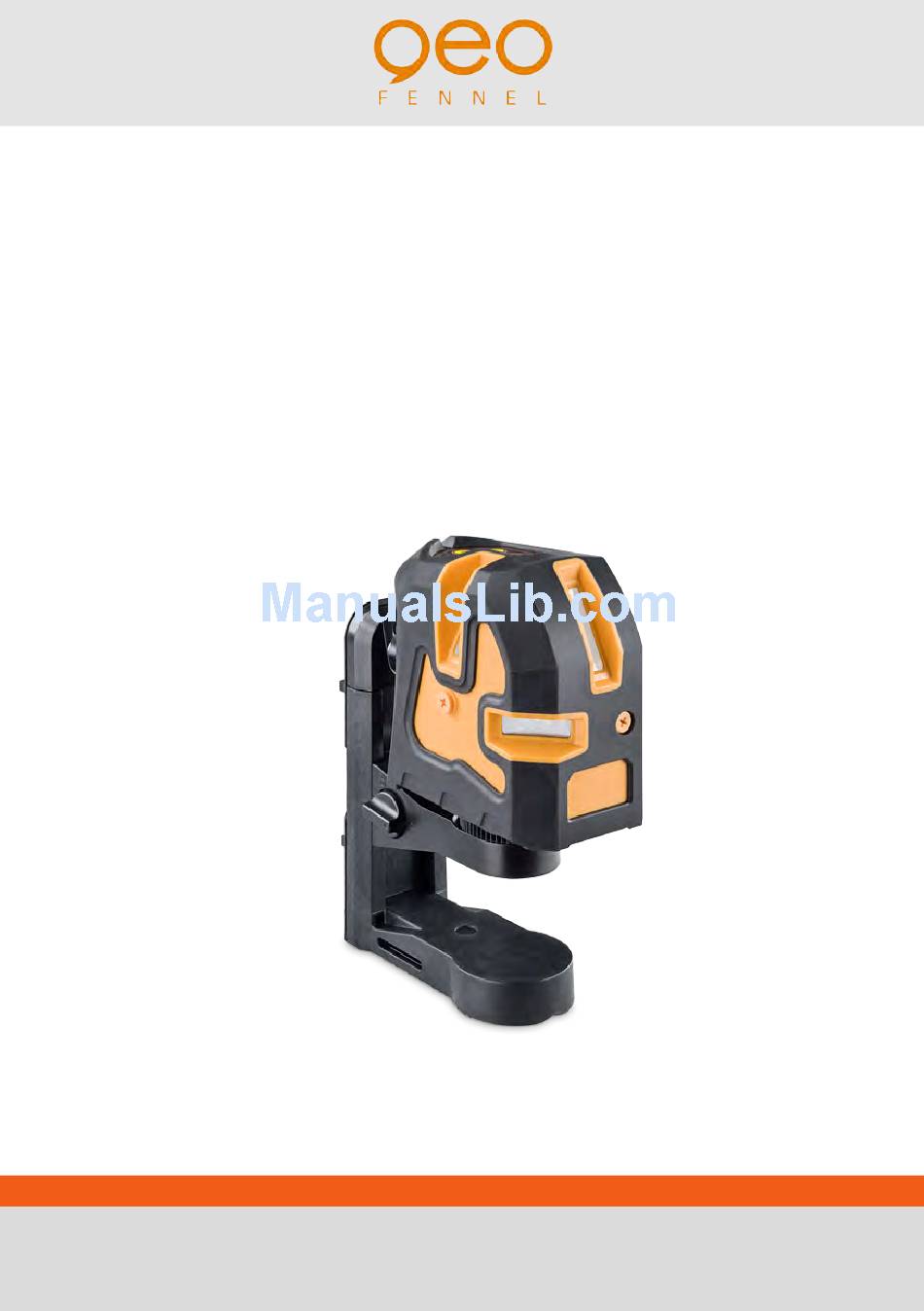

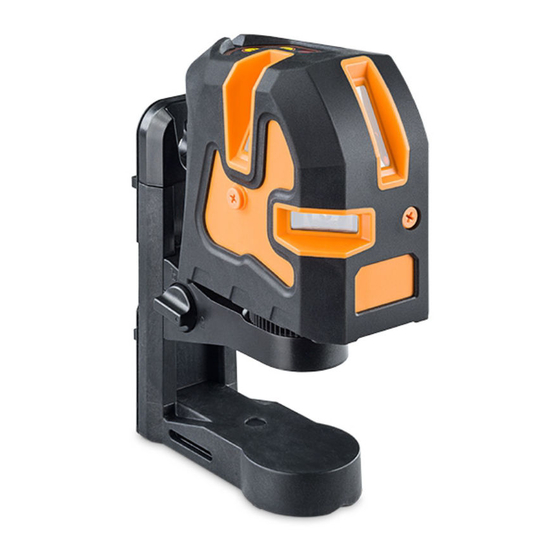

- Page 1 DE | EN | FR Geo3X HP BEDIENUNGSANLEITUNG USER MANUAL MODE D‘EMPLOI www.geo-fennel.de www.geo-fennel.com www.geo-fennel.fr...
-
Page 2: Table Of Contents
Dear Customer, Thank you for your confidence in us, having purchased a geo-Fennel instrument. For the optimum performance of the instrument, please read this manual carefully and keep it in a convenient place for future reference. This manual contains important safety information that should be read and understood before use. -
Page 3: Features
Technical Data Self-levelling range ±3° Accuracy ±3 mm / 10 m Working range • without receiver 20 m* (radius) • with receiver (optional) 60 m (radius) Power supply 3 x AA Alkaline batteries Operating time (all lines switched on) 12 h Dust / water protection IP 54 Laser diode / laser class... -
Page 4: Keypad Layout
7 . Elevating table clamp 8. Keyhole slot 9. Magnets 10. Slot for strap attachment 11. 5/8“ thread for tripod 12. 1/4“ thread for tripod KEYPAD LAYOUT 1. Pulse mode on / off 2. Vertical line (V1) on / off 3. -
Page 5: Battery And Charger
BATTERY AND CHARGER INSERT BATTERY Open the battery compartment cover and insert 3 x AA Alkaline batteries (ensure correct polarity). OPERATION SET UP OPTIONS • on any flat surface • on a tripod either with or without the multi-functional mount •... - Page 6 All Lines USE WITH A RECEIVER To extend the working range or for use in unfavourable light conditions the Geo3X HP can be used with a receiver. The receiver is optional (not included in the kit) Press button „P“ (pulse mode LED (6) will illuminate) to change from normal to receiver mode. The receiver can now detect the Geo3X HP laser lines (the visibility of the laser lines are weaker in this mode).
- Page 7 The MANUAL function is only available with the power ON / OFF knob set to „OFF“ (otherwise the visible and audible alarm would be activated). Press the MANUAL button (8) and choose the desired laser lines. The Geo3X HP can be used in slope mode. APPLICATION DIAGRAMS...
-
Page 8: Safety Notes
SAFETY NOTES INTENDED USE OF INSTRUMENT The instrument emits a visible laser beam in order to carry out the following measuring tasks (depen- ding on instrument): Setting up heights, horizontal and vertical planes, right angles and plumbing points. CARE AND CLEANING Handle measuring instruments with care. - Page 9 EXCEPTIONS FROM RESPONSIBILITY The user of this product is expected to follow the instructions given in the user manual. Although all instruments left our warehouse in perfect condition and adjustment the user is expected to carry out periodic checks of the product’s accuracy and general performance. The manufacturer, or its representatives, assumes no responsibility of results of a faulty or intentional usage or misuse including any direct, indirect, consequential damage, and loss of profits.
- Page 10 GmbH Technische Änderungen vorbehalten. Kupferstraße 6 All instruments subject to technical changes. D-34225 Baunatal Sous réserve de modifications techniques. Tel. +49 561 / 49 21 45 +49 561 / 49 72 34 info@geo-fennel.de 07/2014 www.geo-fennel.de Precision by tradition.
