Vitek Alpha Mega Series Owner's Manual

Vandal resistant
Hide thumbs Also See for Alpha Mega Series:
Table of Contents

Advertisement

Quick Links

Download this manual
• 1000 TV Lines of Resolution (1.39 MegaPixel)
• 1/2.9" Sony® CMOS Sensor
• Highly Advanced EN773E Digital Signal
Processor
• 2.8-12mm Varifocal Lens Included
• Available with 35 IR LEDs (120' Range)
• Advanced OSD Functions: WDR, 3D DNR,
DSS, DIS, Sens-up, Motion Detection, Privacy
• Secondary Video Output (Cable Included)
• 3-Axis Mount for Optimum Viewing Angle
• IP68 Waterproof Rated
• 12VDC/24VAC Dual Voltage Operation

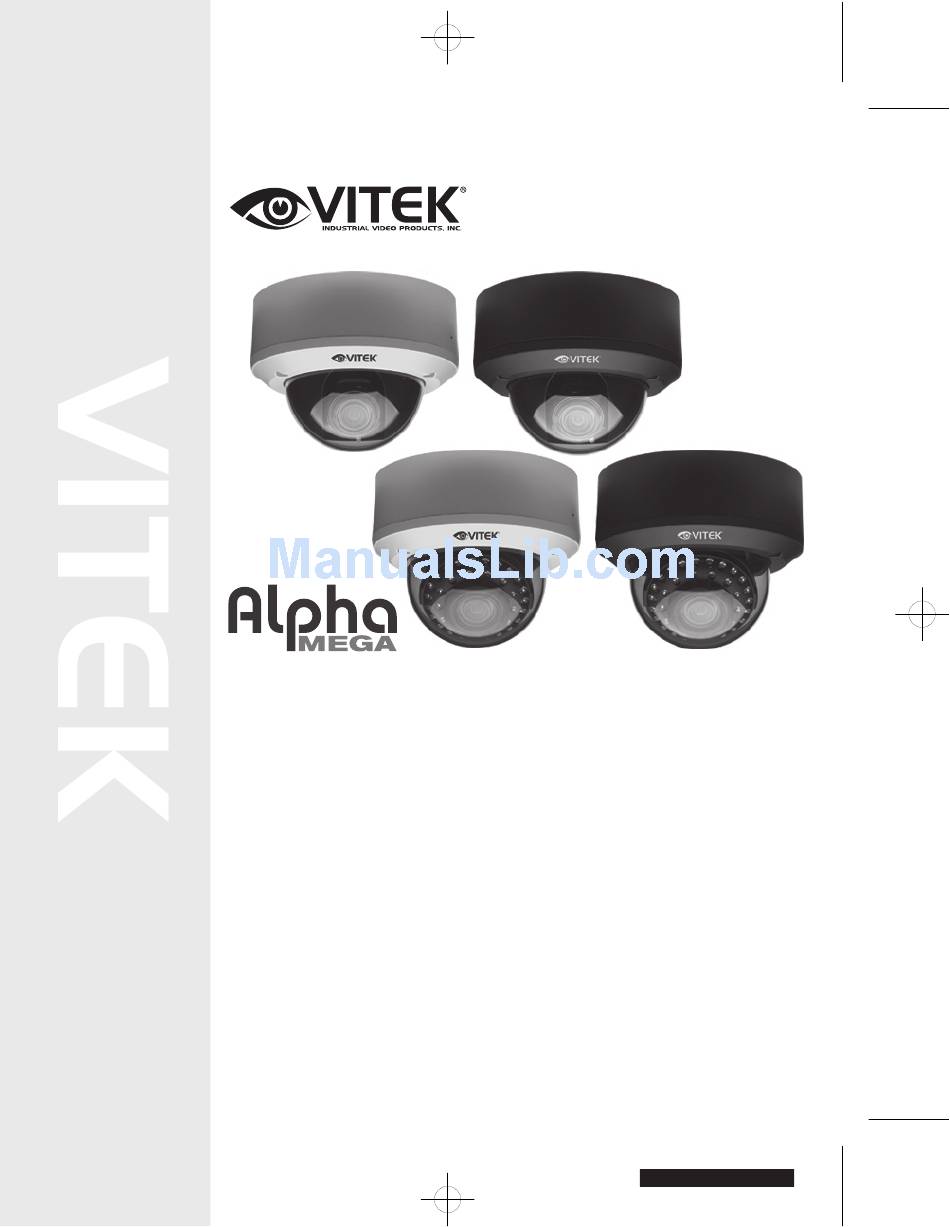

Alpha Mega Series
Vandal Resistant
Dome Cameras
black

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alpha Mega Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek Alpha Mega Series

Summary of Contents for Vitek Alpha Mega Series

  • Page 1 Alpha Mega Series Vandal Resistant Dome Cameras • 1000 TV Lines of Resolution (1.39 MegaPixel) • 1/2.9” Sony® CMOS Sensor • Highly Advanced EN773E Digital Signal Processor • 2.8-12mm Varifocal Lens Included • Available with 35 IR LEDs (120’ Range) •...

  • Page 2: Table Of Contents

    Table of ConTenTs BOX CONTENTS / MOUNTING ACCESSORIES AVAILABLE MODELS VTD-A2812/VM INSTALLATION VTD-AR2812/VM INSTALLATION INSTALLATION TIPS OSD OPERATION 7-18 DIMENSIONS SPECIFICATIONS 20-21 NOTES...

  • Page 3: Box Contents / Mounting Accessories

    BOX CONTENTS BOX CONTENTS BOX CONTENTS boX ConTenTs 1) Dome Camera 1) Dome Camera 1) Dome Camera 1) Alpha Mega Dome Camera 2) Mounting Accessories 2) Mounting Accessories 2) Mounting Accessories 2) Mounting Accessories 3) Secondary Video Output Cable 3) This instruction Manual & Mounting Template 3) This instruction Manual &...

  • Page 4: Available Models

    MoDels AVAILABLE MODELS / ACCESSORIES VTD-A2812/VWM VTD-AV4F/IB / VTD-AV4F/IW Alpha Mega Series 1000 TVL (1.39MP) Outdoor 2.8-12mm Varifocal Vandal Dome - Ivory 620TVL Vandal Color Dome Camera with Fixed Lens. VTD-A2812/VBM Alpha Mega Series 1000 TVL (1.39MP) Outdoor 2.8-12mm Varifocal...

  • Page 5: Vtd-A2812/Vm Installation

    VTD-a2812/VM InsTallaTIon * See Installation Tips on page 6 BLACK...

  • Page 6: Vtd-Ar2812/Vm Installation

    VTD-aR2812/VM InsTallaTIon * See Installation Tips on page 6...

  • Page 7: Installation Tips

    1.) Power Consumption - Amperage/Voltage It is of utmost importance that the proper Voltage and Amperage is used when applying power to your VITEK Alpha Series Dome Camera. They can be powered by either 12V DC or 24V AC. Always use a UL Listed power transformer.

  • Page 8: Osd Operation

    osD opeRaTIon...

  • Page 9: Osd Operation

    osD opeRaTIon Settings can be made using the Joystick located on the rear of the camera. Please press joystick down The Main Menu is displayed on monitor. joystick yellow Push the joystick up or down to highlight the function you wish to change. black...
  • Page 10 osD opeRaTIon joystick joystick pressing joystick joystick MAIN MENU...
  • Page 11 osD opeRaTIon When the Main Menu screen is displayed move highlighted area to EXPOSURE using the up/down of the joystick and then press down on the joystick to enter EXPOSURE Mode. Highlight section to change by using joystick Up/Down. After section is highlighted us joystick Left/Right to adjust settings.
  • Page 12 osD opeRaTIon When in the MAIN MENU highlight WHITE BAL by using the joystick up/down. Select mode by moving joystick left or right. This mode is for use in Halogen or extremely bright white light. Joystick left to decrease, joystick right to increase. Joystick left to decrease, joystick right to increase.
  • Page 13 osD opeRaTIon Adjust from 0~10 by using joystick left or right. Used to inverse the picture. corners Adjust from 0~20 by using joystick left or right. OFF, LOW, MIDDLE, HIGH, ACE performs an image enhancement process to enhance the image by changing the brightness value.
  • Page 14 osD opeRaTIon Adjust from 0~20 by using joystick left or right. Adjust from 0~20 with 0 being the left most area. Adjust from 0~20 with 0 being the top area. Adjust from 0~20 with 0 being the smallest area. Adjust from 0~20 with 0 being the smallest area. This function extends the gain range of the screen that is useful if the camera takes a simultaneous picture of both indoor and outdoor.
  • Page 15 osD opeRaTIon DAY or NIGHT is determined by the built-in light photo sensor. Camera with IR LED must be set to EXTERN Used when DAY or NIGHT is determined by light level through the lens and DAY from/to NIGHT is switched automatically by the scene brightness.
  • Page 16 osD opeRaTIon DNR is a technique of removing image noise from a video signal by applying a digital comb lter. It makes images clearer and reduces video le size. This Product has a feature that allows you to observe movement in 3 di erent areas on the screen and the word MOTION will appear on screen when motion is detected.
  • Page 17 osD opeRaTIon SENSITIVITY: Adjust from 0~20 by using joystick left or right. OBJ. KEEP LV: Adjust from 0~60 by using joystick left or right. MOTION EST: Adjust from 0~20 by using joystick left or right. WINDOW TONE: Adjust from 0~6 by using joystick left or right. WINDOW ZONE: Adjust from 0~4 by using joystick left or right.
  • Page 18 osD opeRaTIon SHAKE SCALE: Adjust from 0~20 by using joystick left or right. BRIGHT SCL: Adjust from 0~20 by using joystick left or right.

  • Page 19: Osd Operation

    osD opeRaTIon SERIAL: N/A PEDESTAL: Adjust from 0~20 by using joystick left or right. After entering FOCUS ADJ a box with 3 di erent boxes within will appear on screen. Each box is to aid in focusing of di erent scene contrasts, LEFT box for low contrast MIDDLE box for medium contrast and RIGHT box for high contrast.

  • Page 20: Dimensions

    DIMensIons VTD-A2812/VM 1.81” (46mm) 5.85” (148.6mm) 5.85” (148.6mm) 3.29” 4.26” (83.5mm) (108.3mm) 2.4” 1.75” (61.1mm) (44.5mm) VTD-AR2812/VM 1.81” 5.85” (46mm) (148.6mm) 5.85” (148.6mm) 3.29” 4.77” (83.5mm) (121.2mm) 2.4” 1.75” (61.1mm) (44.5mm)

  • Page 21: Specifications

    speCIfICaTIons VTD-A2812/VM Image Device 1/2.9" Sony® CMOS Resolution 1000 TV Lines Min. Illumination 0.1 Lux (B/W) / 1.0 Lux (Color) Effective Pixels 1305 x 1049 (1.39 MegaPixel) S/N Ratio More Than 52dB (AGC Off) Smart Motion Zoom 3D DNR Defog Standard Lens Varifocal 2.8-12mm IR Corrected Power Source...
  • Page 22 speCIfICaTIons VTD-AR2812/VM Image Device 1/2.9" Sony® CMOS Resolution 1000 TV Lines 0.1 Lux (B/W) / 1.0 Lux (Color) / 0 Lux with IR LEDs Min. Illumination Effective Pixels 1305 x 1049 (1.39 MegaPixel) S/N Ratio More Than 52dB (AGC Off) Smart Motion Zoom 3D DNR Defog...

  • Page 23: Notes

    noTes black...
  • Page 24 VITEK LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
