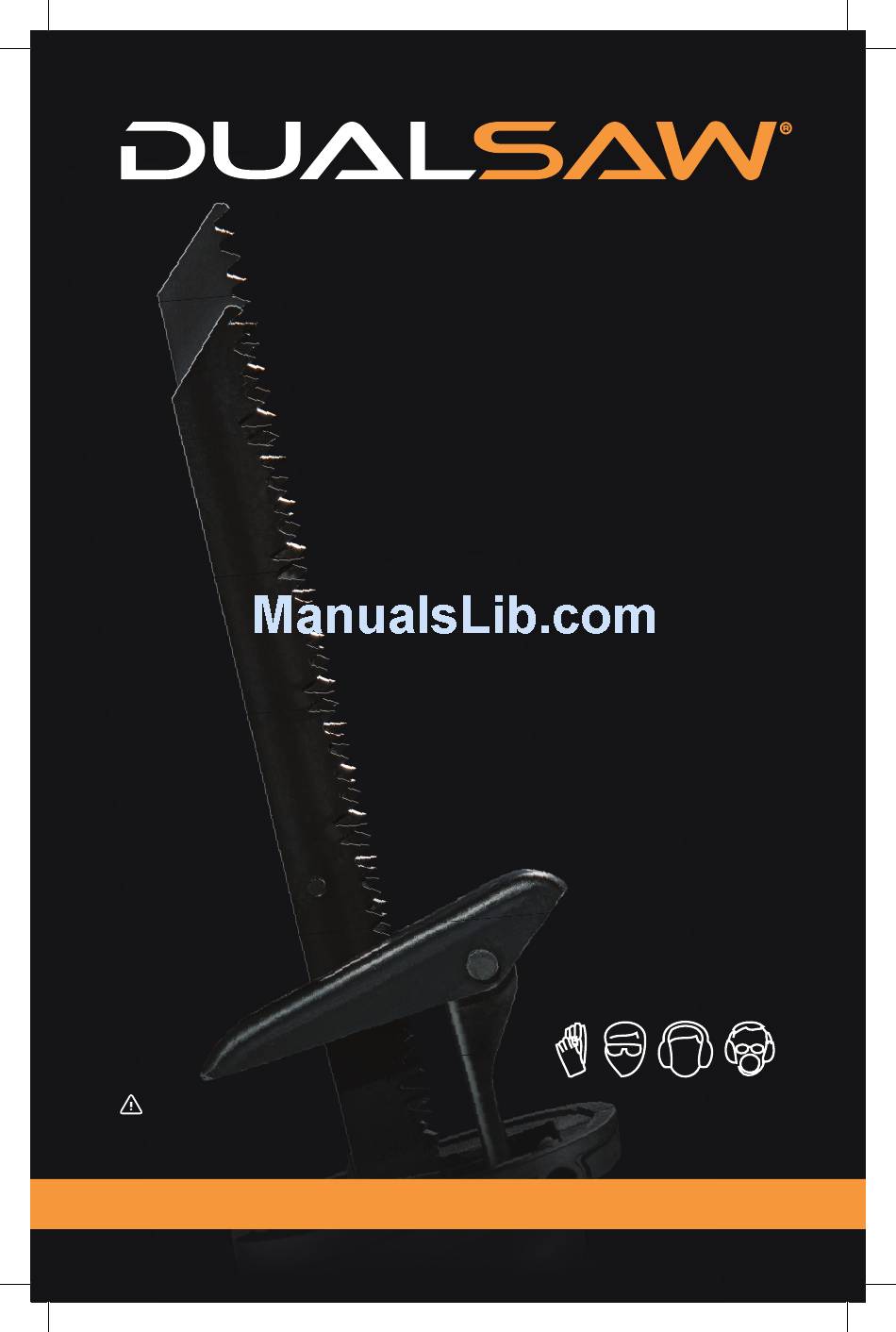

RS1200
OWNERS'
MANUAL
WARNING:
Read, understand and follow all safety rules and
operating instructions in this manual before using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DualSaw RS1200

Summary of Contents for DualSaw RS1200

  • Page 1 RS1200 OWNERS’ MANUAL WARNING: Read, understand and follow all safety rules and operating instructions in this manual before using this product. SAVE THIS MANUAL FOR FUTURE REFERENCE...

  • Page 2: Table Of Contents

    Maintenance ...................... 19 Parts List ......................20 Customer Service ....................22 INTRODUCTION The DUALSAW® RS 1200 has many special features that make this tool different from other reciprocating saws. Please read and understand this manual before using this product. WARRANTY DUALSAW®...

  • Page 3: Product Registration

    To get information on product updates, special offers, and warranty claims, E L E C T R I C A L S A F E T Y register your DUALSAW® RS 1200 on our website www.DualSaw.com • Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators.

  • Page 4: Specific Safety Rules

    GENERAL SAFETY RULES GENERAL SAFETY RULES PERSONAL SAFETY SERVICE • Stay alert. Watch what you are doing and use common sense when operating • Tool service must be performed only by qualified repair personnel. Service a power tool. Do not use the tool while tired or under the influence of drugs, or maintenance performed by unqualified personnel could result in a risk of alcohol, or medication.
  • Page 5 SPECIFIC SAFETY RULES SPECIFIC SAFETY RULES HOW TO AVOID KICKBACK ADDITIONAL SAFETY RULES Kickback is a sudden reaction to a pinched, bound, or misaligned saw blade, • Be sure to read and understand all instructions. Failure to follow all causing the saw to lift up and out of the workpiece and toward the operator. instructions listed below may result in electric shock, fire, and/or serious personal injury.

  • Page 6: Symbols

    Manual user’s manual before using the product. Always wear safety goggles or safety glasses with side Eye Protection KNOW YOUR DUALSAW RS 1200 shields. Before attempting to use this tool, familiarize yourself with all operating features Face Mask Wear full‑face mask when operating this product.

  • Page 7: Assembly

    INSTALLING BATTERIES The DUALSAW® is equipped with LED lights powered by 3 button 1 8 0 R o t a t i n g H a n d l e R e l e a s e batteries.
  • Page 8 5. Lock the blades in place by rotating both lock levers to the up position • Masonite 6. Pull on the ends of the DualSaw blades to ensure they properly locked in • Plastic place Note: You may hear a clicking sound which indicates the blades are •...

  • Page 9: Operation

    OPERATION OPERATION SETTING THE STROKE LENGTH You can adjust the stroke length of your DUALSAW® RS 1200 — short: 3/4” (20mm) WARNING! or long: 1‑1/4” (30mm). Move the stroke selection switch to the desired length. Blades longer than 6” (15.2cm) can whip and should not be used for plunge cutting.
  • Page 10 OPERATION OPERATION P l u n g e C u t t i n g W o o d o r W a l l B o a r d TURNING THE SAW ON/OFF • To turn the saw on: Depress the switch trigger. 1.

  • Page 11: Maintenance

    BLADE MAINTENANCE 4. Hold the saw firmly in front of and clearly away from you. • Do not use any blades other than the DUALSAW® RS 1200 blades which are specially designed for this tool. 5. Depress the switch trigger to start the cutting action.

  • Page 12: Parts List

    PARTS LIST PARTS LIST WARNING! When servicing, use only identical replacement parts. Use of other parts may create a hazard or cause product damage. 1‑855‑382‑5729 Contact customer service at for information on how to obtain replacement parts from an authorized service facility. no.

  • Page 13: Customer Service

    If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Should your DUALSAW® RS 1200 need repair parts or service, simply contact our Customer Service at 1‑855‑382‑5729.
  • Page 14 DESTROYER CS 650 Just the facts MOTOR POWER ......13A/1550W VOLTAGE ........120V / 60HZ BLADE DIAMETER .....6 1/4” SPINDLE SPEED ......4200RPM MAX CUTTING DEPTH ....13/4” WEIGHT ........9 lbs For more information and to see the Dualsaw in action go to: www.DUALSAW.com...
