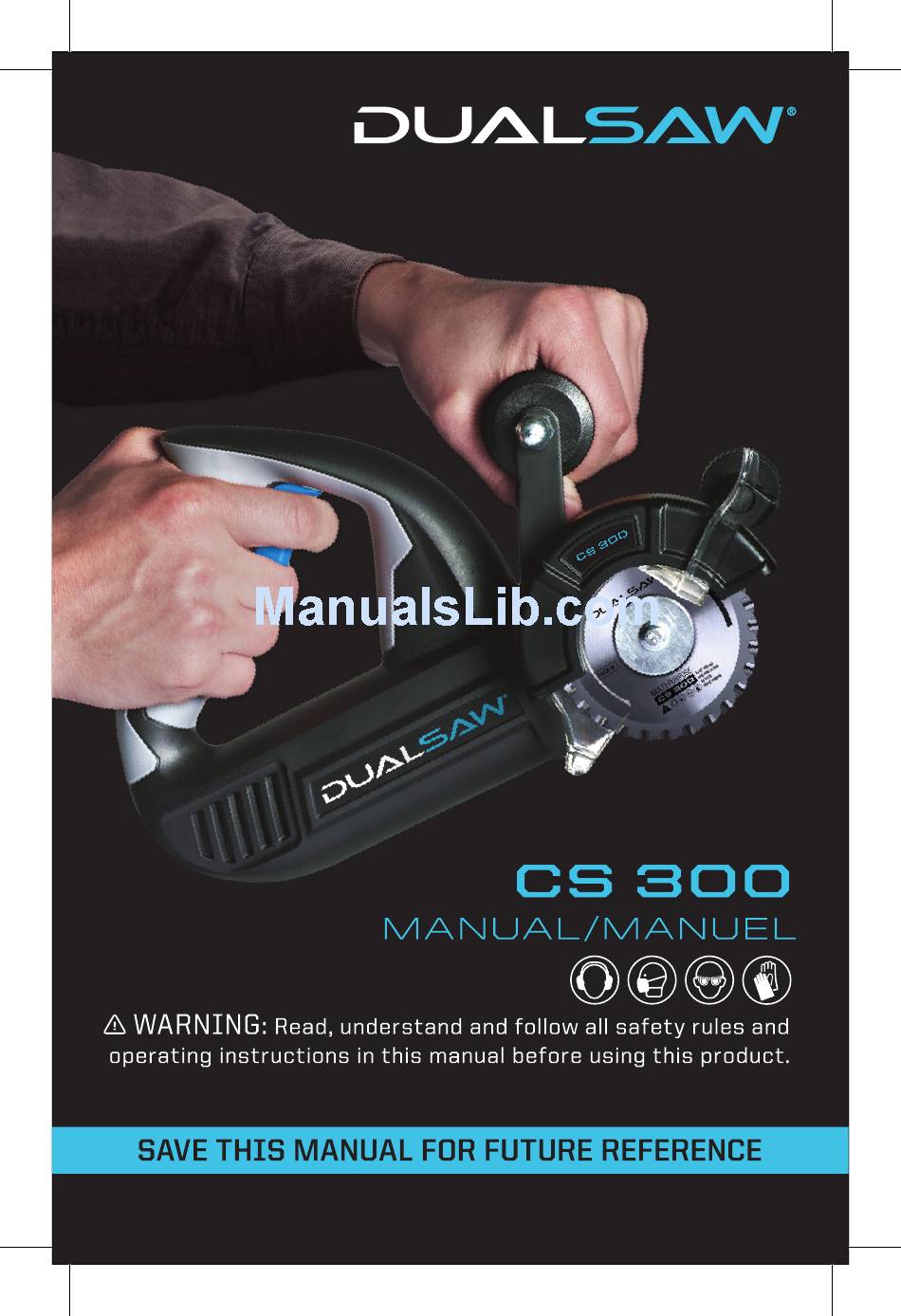

DualSaw CS 300 Manual

Hide thumbs Also See for CS 300:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DualSaw CS 300

Summary of Contents for DualSaw CS 300

  • Page 2: Table Of Contents

    Part List ......................20 Accessories ......................22 Customer Service ....................22 INTRODUCTION The DUALSAW CS 300 has many special features that make this tool very different from other circular saws. Please read and understand this manual before using this product. WARRANTY DUALSAW®...

  • Page 3: Product Registration

    PRODUCT REGISTRATION To get information on product updates, special offers and warranty claims, register your DUALSAW CS 300 on our website www.dualsaw.com Here is what you will need: • Sales Receipt • Machine Serial Number (located on the body of your saw)
  • Page 4 GENERAL SAFETY RULES • Do not abuse the cord. Never use the cord to carry the tool or to pull the plug. Keep cord away from heat, oil, sharp edges or moving parts. Contact Customer Service if cord is damaged and do not use the saw. Damaged cords increase the risk of electric shock.

  • Page 5: Personal Safety

    GENERAL SAFETY RULES PERSONAL SAFETY • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 6: Specific Safety Rules

    GENERAL SAFETY RULES • Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tool’s operation. If damaged, contact Cus- tomer Service before using. Many accidents are caused by poorly maintained tools.
  • Page 7 Contact with a “live” wire will also make exposed metal parts of the tool “live” and shock the operator. • DO NOT use any blades other than the DUALSAW Blades specially designed for this tool. Other blades do not match the mounting hardware & will cause loss of control.
  • Page 8 SPECIFIC SAFETY RULES Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below: • Maintain a firm grip with both hands on the saw and position your body and arm to allow you to resist kickback forces.

  • Page 9: Additional Safety Rules

    SPECIFIC SAFETY RULES ADDITIONAL SAFETY RULES • Be sure to read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. • Know your power tool. Read operator’s manual carefully. Learn the applications and limitations, as well as the specific potential hazards related to this tool.

  • Page 10: Symbols

    SYMBOLS Some of the following symbols may be used on this tool. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency Watt Power Minutes Time Alternating Type of Current Current...

  • Page 11: Features

    • No Load Speed: 8300 RPM • Current Input: 120 V, 60 Hz AC Handle Fig. 1 KNOW YOUR DUALSAW CS 300 Before attempting to use this tool, familiarize yourself with all operating features and Safety rules. (See Figure 1). SPINDLE LOCK The spindle lock allows you to secure the blade when turning the blade screw.

  • Page 12: Assembly

    • Do not discard packaging material until you have carefully inspected and satisfactorily operated the tool. • If any parts are damaged or missing please call 1-855-382-5729 for assistance. PACKING LIST • DUALSAW CS 300 • 1 Set of Multi-Purpose Blades (on saw) • Handle • Blade Wrench •...
  • Page 13 Fig. 2 REMOVING THE BLADES WARNING! The DUALSAW uses specially designed blades. No other types of blades should ever be used on this tool. Other blades will not operate safely on this saw and could result in serious personal injury.
  • Page 14 ATTACHING THE BLADES 1. Identify “Face A” and “Face B” on 2. Open lower guard and place “Face your new set of DUALSAW blades. A” blade on saw and fit on the outer (Fig. 9) arbor shaft . (Fig. 10)
  • Page 15 ASSEMBLY 3. Place “Face B” blade on top of 4. Place washer and lock nut onto “Face A” blade and fit on inner shaft. (Fig. 12) arbor shaft. (Fig. 11) Fig. 12 Fig. 11 5. Tighten lock nut using blade wrench tool.

  • Page 16: Operation

    OPERATION DUALSAW BLADES • Keep the blades clean, sharp and properly set. Using a dull blade will place a heavy load on your saw and increases the danger of kickback. Keep extra blades on hand, so sharp blades are always available.
  • Page 17 OPERATION CAUTION! Maintain control of the saw to make sawing safer and easier. Loss of con- trol of the saw could cause an accident resulting in possible serious injury. STARTING A CUT • Push button and engage trigger on handle to start the saw. Always let the blades reach full speed before you begin to cut into the work piece.

  • Page 18: Cutting Different Materials

    OPERATION CUTTING DIFFERENT MATERIALS Fig. 14 Fig. 15 FLAT STRIP SOFT METALS Move blades in a 90 degree angle Apply lubricati on sti cks through the across the piece. (Fig. 14) lubricati on system and then cut. (Fig. 15) Fig. 16 Fig.

  • Page 19: Maintenance

    • For your convenience, we have included 10 lubrication sticks in your package. Additional lubrication sticks can be purchased at www.dualsaw.com. • Insert a lubrication stick in the lubrication unit as shown in figure 20.
  • Page 20 BLADE MAINTENANCE • Don’t use any blades other than the DUALSAW™ CS 300 blades specially de- signed for this tool. Other blades do not match the mounting hardware and will cause loss of control.

  • Page 21: Part List

    MAINTENANCE TROUBLESHOOTING PROBLEM CAUSE SOLUTION An unusually large 1. Replace blades 1. Damaged Teeth amount of sparks 2. Increase feed speed 2. Feed speed is too slow 3. Blunt Teeth 3. Mount new set of blades 1. Reduce the feed speed 2.
  • Page 22 PART LIST...

  • Page 23: Accessories

    CUSTOMER SERVICE Now that you have purchased your DUALSAW, should you need repair parts or service, simply contact our Customer Service at 1-855-DUALSAW (382- 5729). Be sure to provide all pertinent facts when you call. You can also check our website www.dualsaw.com for a list of frequently asked questions or...
