Linear SXR-64A Installation Instructions

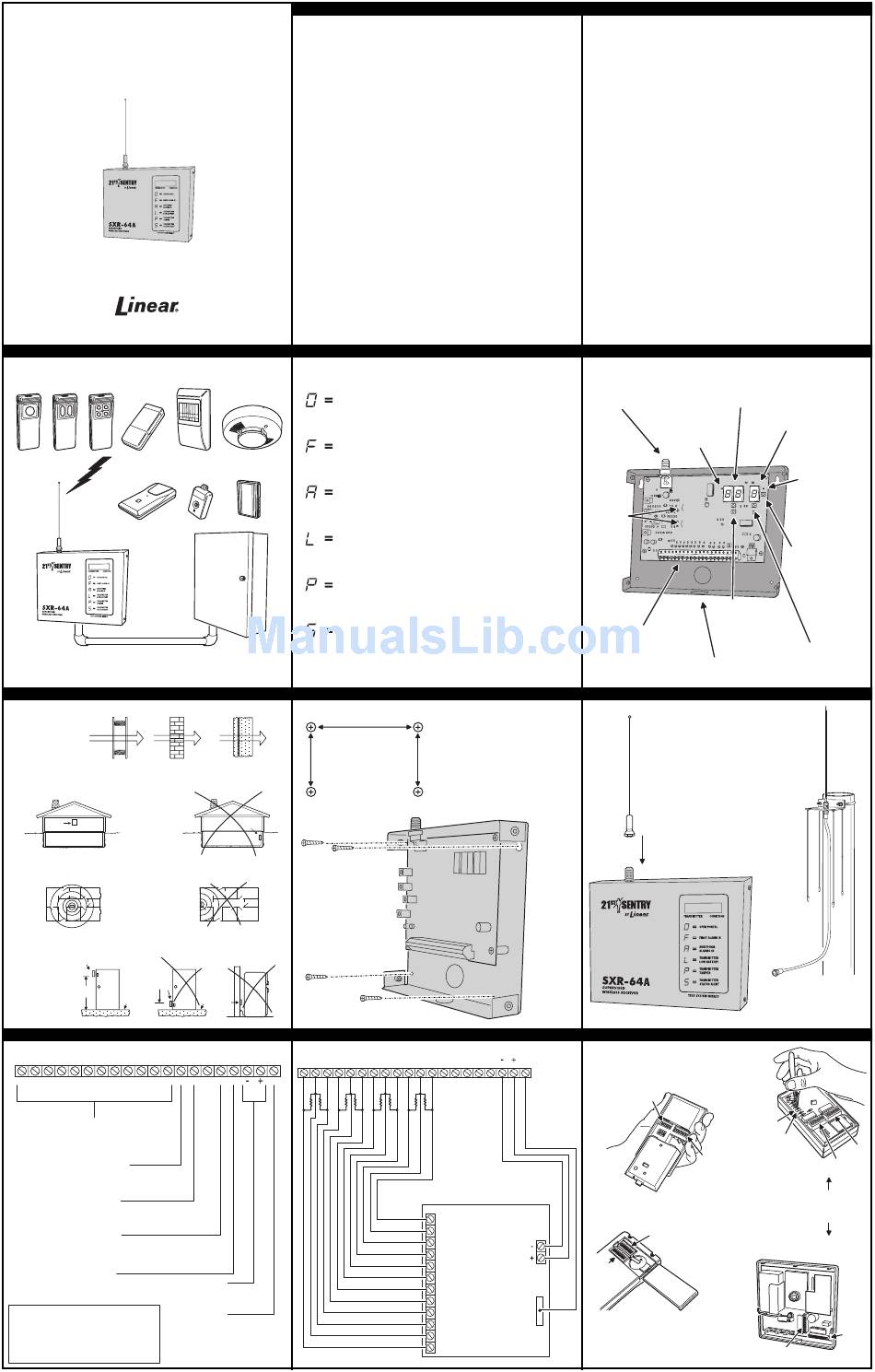

SXR-64A
Supervised Wireless Receiver
and Zone Expander

Installation Instructions

(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
www.linearcorp.com
SYSTEM OVERVIEW
TYPICAL TRANSMITTERS
TX-91 TX-92 TX-94 T-90D
ST-23A
UP TO 64 TRANSMITTERS
CAN BE USED
SXR-64A RECEIVER
INSTALLATION TIPS
90% - 100% 65% - 95%
OF FULL POWER OF FULL POWER
CONSTRUCTION
MATERIALS WILL
EFFECT RADIO RANGE
WALLBOARD AND LIGHT CONCRETE
WOOD STUDS
OR BRICK
RECEIVER (ANTENNA)
LOCATION EFFECTS
RADIO RANGE
RCVR
BASEMENT
RIGHT
MOUNT RECEIVER OR ANTENNA AS HIGH ABOVE
EARTH LEVEL AS POSSIBLE
RIGHT
CENTRALLY LOCATE RECEIVER
OR ANTENNA
TX
Less
than
DOOR 3 ft.
TRANSMITTER above
slab
TX
MOUNTING WILL Min.
Concrete
3 ft.
EFFECT RADIO slab
floor
RANGE
RIGHT
TERMINAL BLOCK DETAILS
SXR-64A TERMINALS
1 2 3 4 5 6 7 8 9 10 11 12
ZN1 COM ZN2 ZN3 COM ZN4 ZN5 COM ZN6 ZN7 COM ZN8
ZONE OUTPUTS
FOR CONNECTION TO ALARM ZONE INPUTS ON THE ALARM
CONTROL PANEL. ZONE OUTPUT WILL ACTIVATE WHEN ANY
TRANSMITTER CHANNEL PROGRAMMED FOR THAT ZONE IS
IN THE FAULTED (ALARM/OPEN) CONDITION ("O" DISPLAYED
ON THE CONDITION DISPLAY).
LOW BATTERY OUTPUT
FOR CONNECTION TO A TROUBLE ZONE ON THE ALARM
CONTROL PANEL. OUTPUT WILL ACTIVATE WHEN ANY
TRANSMITTER CHANNEL DISPLAYS AN "L" ON THE
CONDITION DISPLAY.
STATUS OUTPUT
FOR CONNECTION TO A TROUBLE ZONE ON THE ALARM
CONTROL PANEL. OUTPUT WILL ACTIVATE WHEN ANY
TRANSMITTER CHANNEL DISPLAYS AN "S" ON THE
CONDITION DISPLAY.
TAMPER OUTPUT
FOR CONNECTION TO A TROUBLE ZONE ON THE ALARM
CONTROL PANEL. OUTPUT WILL ACTIVATE WHEN ANY
TRANSMITTER CHANNEL DISPLAYS A "P" ON THE CONDITION
DISPLAY OR WHEN ANY PROGRAMMING BUTTON IS
PRESSED WHILE THE SYSTEM IS ARMED.
TEST OUTPUT
FOR CONNECTION TO A TEST ZONE ON THE ALARM
CONTROL PANEL. OUTPUT WILL ACTIVATE WHEN ANY
FOR CONNECTION TO THE ALARM
TRANSMITTER THAT CAN SEND A TEST SIGNAL HAS ITS
CONTROL PANEL'S AUXILIARY
TEST BUTTON PRESSED.
POWER OUTPUT. POWER INPUT
CAN BE FROM 11-16 VDC ONLY
NOTES:
1. ALL COM TERMINALS ARE COMMON GROUND
AND CONNECTED TOGETHER.
FOR CONNECTION TO THE ALARM
CONTROL PANEL'S ARMED OUTPUT.
2. ALL OUTPUTS CAN BE PROGRAMMED FOR NORMALLY
THE ARMED INPUT CAN BE SET FOR
OPEN OR NORMALLY CLOSED OPERATION. EACH OUTPUT
ARMED-POSITIVE OR
RETURNS TO ANY COM TERMINAL.
ARMED-NEGATIVE POLARITY.
3. EACH OUTPUT CAN SWITCH UP TO 100 mA @ 24 VDC
MAXIMUM.
The Model SXR-64A is a 64-channel, 12-zone, supervised wireless receiver/
annunciator designed for use in residential or commercial security systems. Housed
in a rugged metal enclosure, the SXR-64A connects to a hardwired alarm control
panel adding wireless capability to the panel.
The SXR-64A receives signals from a variety of security transmitters then processes,
displays and transfers the signal to the hardwired alarm control panel. Six unique
conditions for each transmitter channel can be shown on the unit's display. Conditions
such as "Open Portal", "Transmitter Low Battery", "Transmitter Tamper" and "First
Alarm In" show the status of each transmitter in the system. Valuable features such
as Alarm Memory and Transmitter Status allow for quick system diagnosis and
troubleshooting.
The receiver's eight alarm zones and four supervisory zones provide a fl exible
interface to the alarm control panel. Any or all of the zones can be used. All of the
solid state zone outputs can be either normally open or normally closed electrical
confi guration and can switch up to 100 mA @ 24 VDC.
An easy programming interface using four pushbuttons lets the installer quickly setup
the system. The UP, DOWN, ADVANCE and MEMORY buttons are located inside the
receiver case and are used for transmitter and system programming.
An on-board, high-gain, superheterodyne radio receiver gives the SXR-64A excellent
reception. The MODE indicator shows RF activity. The local whip antenna (supplied)
or remote external antenna (Model EXA-1000) connects to the receiver through a
standard type "F" connector.
The SXR-64A decodes Linear's SX, S1, and MegaCode™ format transmitters. The
SXR-64A can be used as a direct replacement for Linear's SS-32, SSR-32, & SXR-64
receivers with an installation bonus of being able to use up to 64 transmitters in the
system.
Power for the SXR-64A is provided from the alarm control panel. To control the alarm
memory, reset tamper and status alert conditions, an armed input on the receiver
connects to an armed output from the control panel.
TMD-90 TSD-90A
OPEN PORTAL
ALL TRANSMITTERS WILL CAUSE THIS CONDITION WHEN AN ALARM SIGNAL IS
SENT. THE CONDITION WILL REMAIN UNTIL A RESTORE SIGNAL IS SENT, UNLESS
THE TRANSMITTER IS SET AS "AUTO RESTORE". THE CHANNEL'S ZONE OUTPUT
WILL BE FAULTED WHEN THIS CONDITION IS DISPLAYED.
FIRST ALARM IN
WHEN THE PANEL IS ARMED, THE FIRST ALARM SIGNAL SENT WILL CAUSE THIS
CONDITION. IF THE CHANNEL IS SET AS "DELAYED", THIS CONDITION WILL OCCUR
AFTER ANY DELAYS IF THE PANEL IS NOT DISARMED. DISPLAY WILL CLEAR THE
LMT-1/303 MPX/303
NEXT TIME THE PANEL IS RE-ARMED.
ADDITIONAL ALARMS IN
WHEN THE PANEL IS ARMED, ADDITIONAL ALARM SIGNALS SENT WILL CAUSE THIS
CONDITION. IF THE CHANNEL IS SET AS "DELAYED", THIS CONDITION WILL OCCUR
AFTER ANY DELAYS IF THE PANEL IS NOT DISARMED. DISPLAY WILL CLEAR THE
NEXT TIME THE PANEL IS RE-ARMED.
TRANSMITTER LOW BATTERY
ANY TRANSMITTER THAT CAN SEND A LOW BATTERY SIGNAL WILL CAUSE THIS
CONDITION WHEN ITS BATTERY IS LOW. DISPLAY WILL REMAIN UNTIL A SIGNAL
FROM THE SAME TRANSMITTER WITH A GOOD BATTERY IS SENT.
TRANSMITTER TAMPER
ANY TRANSMITTER THAT CAN SEND A TAMPER SIGNAL WILL CAUSE THIS
CONDITION WHEN IT IS TAMPERED. DISPLAY WILL CLEAR THE NEXT TIME THE
PANEL IS ARMED.
TRANSMITTER STATUS ALERT
IF THE RECEIVER DOES NOT RECEIVE STATUS SIGNALS FROM A TRANSMITTER
THAT IS SET AS SUPERVISED, THIS CONDITION WILL BE DISPLAYED. THE RECEIVER
CAN BE SET FOR TWO OR EIGHT HOURS OF MISSING STATUS TRANSMISSIONS
ALARM CONTROL PANEL
BEFORE THE CONDITION OCCURS. DISPLAY WILL CLEAR THE NEXT TIME THE
PANEL IS ARMED.
10% - 70%
OF FULL POWER
5"
CONCRETE WITH STEEL
REINFORCEMENT OR
METAL LATH AND PLASTER
RCVR
BASEMENT
WRONG!
LOCATING A RECEIVER OR ANTENNA BELOW
EARTH LEVEL WILL IMPAIR RANGE
ATTACH CASE WITH
TWO SCREWS IN
KEYHOLE SLOTS,
THEN SECURE CASE
WITH TWO BOTTOM
SCREWS
WRONG!
TRANSMITTERS AT THE OTHER END OF
HOUSE MIGHT BE TOO FAR AWAY
DOOR
Wall
Concrete
Large
slab
metal
floor
TX
appliance
(refrig.)
WRONG! WRONG!
ZN1 COM ZN2 ZN3 COM ZN4 ZN5 COM ZN6 ZN7 COM ZN8
13 14 15 16 17 18 19 20
1 2 3 4
LB STS COM TMP TST ARM
POWER INPUT
ARMED INPUT
INTRODUCTION
CONDITION DISPLAYS
CONDITIONS FOR ALL TRANSMITTERS
ROTATE ON THE DISPLAY
MOUNTING UNIT
USE SCREWS AND ANCHORS TO
7"
MOUNT THE RECEIVER
MOUNTING
PATTERN 5"
TYPICAL CONTROL PANEL CONNECTION
SXR-64A TERMINALS
LB STS COM TMP TST
5 6 7 8 9 10 11 12 13 14 15 16 17 18
OUTPUTS PROGRAMMED
FOR NORMALLY OPEN
END-OF-LINE
RESISTORS
ALARM CONTROL PANEL
ZONE 8
COMMON
ZONE 7
AUXILIARY
ZONE 6
POWER
COMMON
ZONE 5
ZONE 4
COMMON
ARMED
ZONE 3
OUTPUT
ZONE 2
COMMON
ZONE 1
✶ 64 Programmable Transmitter Channels
✶ 8 Alarm Zones
✶ 4 Supervisory Zones
✶ Rugged Metal Enclosure
✶ Six Condition Displays for Each Transmitter
✶ Alarm Memory with First-Alarm-In
✶ Automatic Supervised Operation
✶ Transmitter Contact State Monitoring
✶ Transmitter Tamper Monitoring
✶ Transmitter Low Battery Monitoring
✶ Transmitter Status Report Monitoring
✶ Easy Installer Programming Interface
✶ High-gain Superheterodyne Receiver
✶ Receiver Automatic Gain Control
✶ Antenna Connector
✶ Decodes 303.875 MHz SX, S1, & MegaCode™ Format Transmitters
✶ Optional Display Blanking while Armed
✶ RF Activity Indicator
✶ Positive or Negative Armed Input
COMPONENT LOCATIONS
ANTENNA CONNECTOR
TYPE "F" ANTENNA CONNECTOR FOR
CONNECTION TO LOCAL OR REMOTE
ANTENNA THROUGH RG-59 COAX
MODE LIGHT
LIGHTS WHEN UNIT IS
IN PROGRAM MODE,
FLASHES WHEN RF IS
RECEIVED IN RUN
MODE
TEST POINTS
AUDIO TEST
POINTS FOR
LISTENING TO
RADIO INPUT
WITH BUTTSET
TERMINAL BLOCK
CONNECTIONS FOR ZONE AND
SUPERVISORY OUTPUTS,
POWER AND ARMED INPUTS
ANTENNA INSTALLATION
USE LOCAL
WHIP ANTENNA
(SUPPLIED)
S1 FORMAT TRANSMITTER DETAILS
EACH S1 FORMAT
SET CHANNEL AND
TRANSMITTER MUST
ARM
SYSTEM SWITCH TO
19 20
BE SET TO A DIFFERENT
ANY UNIQUE CODE
CODE
CHANNEL
SWITCH
MODEL ST
MODEL ST-23A
SYSTEM
SWITCH
ST-23A NOTE: SET
SYSTEM SWITCH #1
TO OFF
CHANNEL
SWITCH
8
WHEN UPGRADING AN SS-32,
SSR-32, OR SXR-64 INSTALLATION,
THE TRANSMITTER SWITCH
SETTINGS CAN REMAIN THE SAME
FEATURES
TRANSMITTER DISPLAY
SHOWS THE TRANSMITTER'S
CHANNEL NUMBER AND IS USED
DURING PROGRAMMING
CONDITION DISPLAY
SHOWS THE TRANSMITTER'S
CONDITION AND IS USED DURING
PROGRAMMING
MEMORY LIGHT
LIGHTS DURING PROGRAM
MODE TO SHOW WHEN A
TRANSMITTER HAS BEEN
ENTERED OR AN OPTION
HAS BEEN SELECTED,
LIGHTS DURING RUN MODE
WHEN SYSTEM IS ARMED,
BLINKS DURING EXIT DELAY
MEMORY BUTTON
USED DURING PROGRAMMING
TO SELECT OPTIONS AND
ENTER TRANSMITTERS
UP & DOWN BUTTONS
PRESS EITHER TO ENTER
PROGRAM MODE, UP
INCREASES AND DOWN
DECREASES VALUE DISPLAYED
PRESS TOGETHER TO EXIT
PROGRAM MODE
ADVANCE BUTTON
USED DURING PROGRAMMING
WIRING KNOCKOUTS
TO CHANGE ZONE NUMBERS
FOR WIRING CONDUIT
AND SELECT FUNCTIONS
CONNECTION
- OR -
USE THE
MODEL EXA-1000
REMOTE ANTENNA
(OPTIONAL)
CONNECT ANTENNA
COAX DIRECTLY OR
USE UP TO 25 FEET
OF RG-59 COAX AS
AN EXTENSION
MODEL ST-1
STATUS
JUMPER
RESTORE
JUMPER
SYSTEM
SWITCH
CUT ST-1 JUMPERS
SYSTEM
CHANNEL
TO ENABLE STATUS
SWITCH
SWITCH
& RESTORE SIGNALS
ST-1 & 50S40A NOTE: SET SXR-64A TRANSMITTER OPTION "A"
TO "ON" FOR THE CHANNEL THE TRANSMITTER IS PROGRAMMED TO.
OTHERWISE, THE LONG ALARM AND RESTORE
TRANSMISSIONS WILL CAUSE A DOUBLE ZONE CLOSURE
MODEL 50S40A
SYSTEM
SWITCH
CHANNEL
SWITCH
