DRG
DRG2
DIGITAL
GATE
RECEIVER

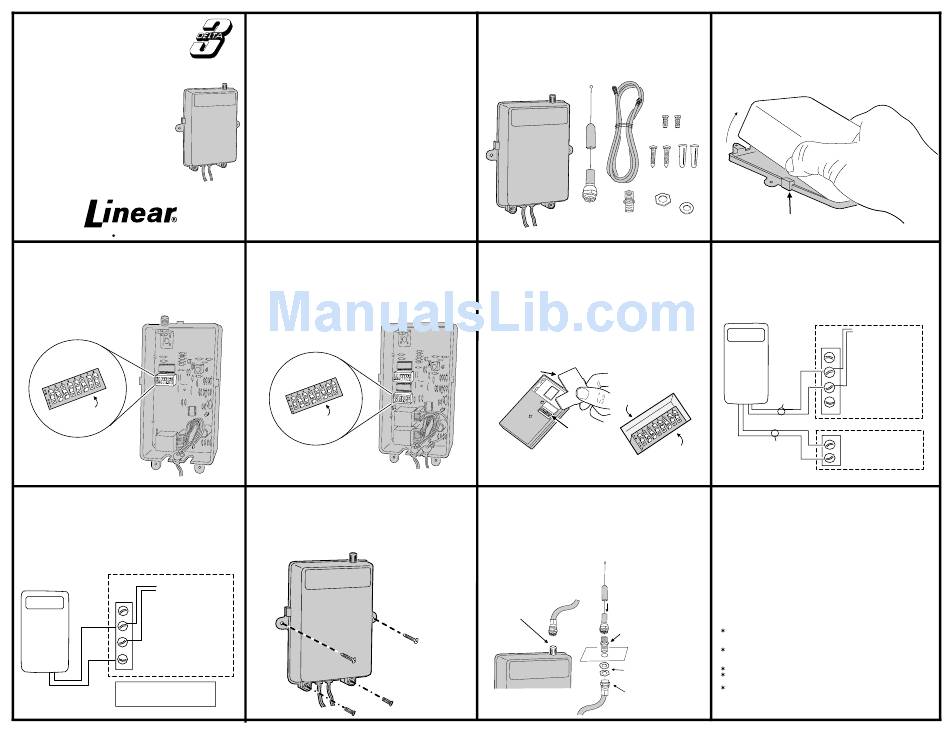

Installation Instructions
(800) 421-1587 www.linearcorp.com
STEP 2A
DRG code setting. To set a code,
select any valid combination of ON and OFF
positions for the switch keys numbered 1- 8. Use
a paper clip to set the eight keys.
SET CODE
SWITCH KEYS
CHANNEL ONE
SWITCH KEYS
THIS SWITCH
HAS 2, 3 & 6 ON
DO NOT USE:
ALL ON; ALL OFF;
ALT ON/OFF, OR OFF/ON
STEP 5
C o n n e c t r e c e i v e r t o p o w e r .
Connect the red power input wire to the 24V radio
power and the black wire to the common terminal
on the gate operator. Alternately connect wires to
a 16-24 VAC transformer.
GATE OPERATOR
MANUAL
ACCESS REQUEST
DRG
Digital Gate Receiver
OBSTACLE
BLACK
1
COMMON
2
RELAY
RED
24 V RADIO POWER
3
INPUT VOLTAGE REQUIREMENT
16 TO 24 VOLTS AC
20 TO 30 VOLTS DC
DESCRIPTION
The DRG is a digital receiver designed for use with automatic
gate operators or systems where a remote antenna is
needed. The DRG2 will operate two gates, one gate and an
obstacle sensor or channel one can open the gate and
channel two can close the gate.
All of the Delta-3 transmitters, including the two and
four-channel transmitters, are compatible with the the DRG.
The Delta-3 radio format provides 256 different digital codes.
The codes are set using the 8-position coding switches in
the units. In order to avoid the possibility of duplicating codes
in adjacent systems, factory set codes should not be used.
The receivers can operate from 16-24 volts AC or 20-30 volts
DC and are normally powered from the gate operator. The
relay contact(s) are rated at 5 amps @ 32 volts AC/DC NEC
Class 2 circuit.
STEP 2B
DRG2 code setting. Select any
valid combination of ON and OFF positions for
each of the switch keys numbered 1 - 8. Use a
different code combination than that used for
channel one switch.
SET CHANNEL TWO
CODE SWITCH KEYS
CHANNEL TWO
SWITCH KEYS
THIS SWITCH
HAS 2, 4 & 6 ON
DO NOT USE:
ALL ON; ALL OFF;
ALT ON/OFF, OR OFF/ON
STEP 6
Mounting the receiver. U s e t h e
screws provided to mount the receiver within the
operator housing. This provides protection from
the elements. Secure case with case screws.
MOUNT RECEIVER
INSIDE GATE
HOUSING
SECURE CASE
CLOSED WITH TWO
SCREWS AT BOTTOM
OF CASE
The DRG has a "F" connector for attaching an antenna. The
receiver is supplied with a 9-inch local antenna, a three foot
75 ohm coaxial cable, and a bulkhead connector for
mounting the antenna outside the gate operator enclosure.
RECEIVER
3-FOOT
CABLE
CASE SCREWS
MOUNTING
HARDWARE
LOCAL
NUT
ANTENNA
BULKHEAD
CONNECTOR
STEP 3
Transmitter code setting. Locate
the coding switch on the transmitter and set the
eight keys identical to those on the desired
channel of the receiver. Be sure they match
exactly. I f u s i n g a t w o o r f o u r - c h a n n e l
transmitter, refer to the coding instructions
included with the transmitter for proper system
coding.
REMOVE BATTERY
ACCESS DOOR
SWITCHES IN
TRANSMITTER
CODING
SWITCH
THIS SWITCH
HAS 2, 3 & 6 ON
STEP 7
Connect antenna. C o n n e c t t h e
coaxial cable to the "F" connector on the receiver.
Drill a 3/8" hole on the top of the operator housing
for the bulkhead connector. Insert the connector
and secure it with the nut and lock washer.
Connect the cable and antenna to the operator.
SLIDE WEATHER
RESISTANT CAP
OVER CONNECTION
CONNECT COAXIAL
CABLE TO "F"
CONNECTOR
INSERT BULKHEAD
CONNECTOR THROUGH
OPERATOR HOUSING
SECURE CONNECTOR
TO HOUSING USING
WASHER AND NUT
CONNECT CABLE TO
BULKHEAD CONNECTOR
STEP 1
Open receiver case. To open case,
squeeze sides of case and rotate upward.
WASHER
SQUEEZE BOTH SIDES AT TABS
AND TILT UPWARD
STEP 4
Connect receiver relay output.
Connect the appropriate channel wires (Ch. 1 -
two gray wires), (Ch. 2 - two yellow wires) to the
appropriate activation terminals on the gate
operator.
GATE OPERATOR #1
DRG
Digital Gate Receiver
OBSTACLE
COMMON
1
RELAY
CHANNEL
2
ONE
GRAY
24 V RADIO POWER
3
GATE OPERATOR #2
YELLOW
COMMON
1
CHANNEL
TWO
RELAY
2
LINEAR LIMITED WARRANTY
This product is warranted to the consumer against defects in material and workmanship
for one year from the date of purchase. This warranty applies to first retail buyers of
new devices. Warrantor will repair, or at its option, replace, any device it finds that
requires service under this warranty, and will return the repaired or replaced device to
the consumer at the warrantor's cost. For warranty service and shipping instructions
contact warrantor at the address shown below. Devices must be sent to warrantor for
service at owner's expense. The remedies provided by this warranty are exclusive.
Implied warranties under state law are to the one year period of this written warranty.
Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. In order to be protected by this warranty, save your
proof of purchase and send copy with equipment should repair be required. This
warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
All products returned for warranty service require a Return Product Authorization
Number (RPA#). Contact Linear Technical Services at 1-800-421-1587 for an RPA#
and other important details.
IMPORTANT !!!
Linear radio controls provide a reliable communications link and fill an important need
in portable wireless signaling. However, there are some limitations which must be
observed.
For U.S. installations only: The radios are required to comply with FCC Rules and
Regulations as Part 15 devices. As such, they have limited transmitter power and
therefore limited range.
A receiver cannot respond to more than one transmitted signal at a time and may be
blocked by radio signals that occur on or near their operating frequencies, regardless of
code settings.
Changes or modifications to the device may void FCC compliance.
Infrequently used radio links should be tested regularly to protect against undetected
interference or fault.
A general knowledge of radio and its vagaries should be gained prior to acting as a
wholesale distributor or dealer, and these facts should be communicated to the ultimate
users.
Copyright © 1999 Linear Corporation
MANUAL ACCESS
REQUEST
211090 B
