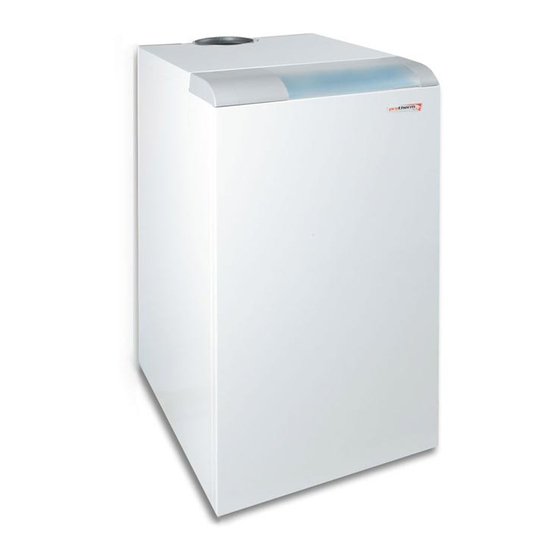

- Page 1 Instructions for Use and Installation of Cast-Iron Boilers PROTHERM 20(30,40,50,60) KLO "BEAR" Version Protherm s r.o.(ltd) Pplk. Pljušta 45 909 01 Skalica Slovak Republic Supplied By www.heating spares.co Tel. 0161 620 6677...
-
Page 2: Table Of Contents
Fig. 3b Vertical Control Panel....................11 Fig. 4a Electric Wiring Diagram of PROTHERM 60 KLO ..........18 Fig. 4b Electric Wiring Diagram of PROTHERM 20, 30, 40, 50 KLO ....... 18 Fig. 5a Regulation elements of "SIT 843" combined gas armature ........19 Fig. -
Page 3: Boiler Characteristics
Dear Customer, You have become an owner of a cast-iron PROTHERM KLO boiler, for natural gas or LPG. We believe it will serve you to your full satisfaction – certain minimum requirements must be fulfilled to that end. That is why we are asking you to study and follow these instructions carefully. - Page 4 It is an absolute necessity, for combined heaters (HCW+DHW), to exclude bringing "foreign" voltage to the boiler – i.e., the thermostat contacts must be separated from the heater's internal electrical components. The DHW reservoir is heated by a separate circuit, controlled by a three-way distributing (not mixing!!!) valve. The valve must be equipped with an electric switching contact (applicable only to 20, 30, 40, 50 KLO), which is connected if the valve's motor is not active (gets no voltage).
-
Page 5: Fig. 1 Basic And Connection Dimensions
∅ D TYPE Fig. 1 Basic and Connection Dimensions Control panel; HCW pressure measuring point; HCW temperature measuring point; Boiler cast-iron body; Combined gas armature; Water filling and discharging; Burner plate (distribution to nozzles); Ionisation electrode; Compound ignition electrode; 10. Flue-gas outlet; 11. -
Page 6: Boiler Accessories
2. Boiler Accessories A PROTHERM KLO boiler consists of the following parts: 1. Cast-iron boiler body with thermal insulation and water-connection pipes; 2. Burner plate, including gas supply and ignition part; 3. Flue-gas duct, with draft dampener and SKKT thermostat;... -
Page 7: Fig. 2 Boiler Working Diagram
Extension “polo-turbo” (They are not an equipment of standard boiler) Fig. 2 Boiler Working Diagram Control panel; Cleaning cover; Chimney flange; Flue gas duct with draft dampener; SKKT chimney-draft control system; Outgoing HCW; Gas supply; Cast-iron elements; Incoming HCW; 10. Combustion chamber; 11. -
Page 8: Boiler Assembly
PROTHERM KLO – P types are designed for LPG; the calorific value of natural gas is about 12.8 to 13 kWh/kg. Operation using cylinders would be problematic, due to both sufficient volume and handling of the cylinders; hence a prerequisite for the operation is an installation of an LPG tank near the heated premises and filling of the tank by an organisation authorised for such activities. - Page 9 When filling the system with water, perfect purging of air in both the boiler and the heating circuit must be carried out. Depending on the water composition and the expected quantity of sludge, cleaning the boiler of sludge is recommended about a week after commencing operation.
- Page 10 Sufficient clearance space must be provided around the boiler to enable manipulation of the boiler and its accessories, both when being installed and during operation. The boiler is put on the floor (or a special base plate). The floor must have at least usual load capacity and must not be slippery. The area at the boiler must be dry-cleaned (such as vacuum cleaning).
-
Page 11: Description Of Controls
4. Description of Controls The controls and indicators are shown in diagrams of the control panels in Figures 3a and 3b below. There are two control panels – one of them horizontal, under the plastic cover in the top panel, the other is vertical, under the front panel. -
Page 12: Boiler Operation
Fig. 3b Vertical Control Panel 5 – Electric fuse 6 – Full/reduced power switch (only for 20, 30, 40, 50 KLO) 7 – SUMMER/WINTER switch 8 – RESET button 9 – Emergency thermostat 10 – Heating operation regulator 11 – Pump thermostat Boiler power output switch (only for 20, 30, 40, 50 KLO) ("two flames"... -
Page 13: Boiler Maintenance
5.3. Boiler Operation Boilers whose functionality has already been verified by the First Heating are started as follows: The power cord must be plugged into the socket. Set the heating water temperature regulator to about 2/3 of its range – the setting can later be adjusted according to the temperature of the heating water. -
Page 14: Instructions For Use
If you have any doubts, feel any data to be incomplete, any advice unclear, or think that there has been an inadequate servicing of the boiler, contact one of the contractual service centres. 8. Warranty The warranty on PROTHERM KLO boilers is provided as specified in the Guarantee Certificate, Service Booklet and under conditions specified in these Instructions. 9. Complete Delivery 9.1. -
Page 15: Transportation And Storage
10. Transportation and Storage When leaving the manufacturing plant, the boiler is fixed (bolted) on a palette .Do not let any forces act on the casing when handling or when storing the boiler! For handling without a palette, the base can be used (cf. Chapter 2). For storage, normal conditions have to be provided (non aggressive environment, air humidity up to 75%, temperatures between 5°C and 55 °C, low dust nuisance, no biological factors). -
Page 16: Boiler Assembly
The following instructions are for specialised professionals only. Together with the "Instructions for Use" and the "Service Booklet," technical instructions for installation, setting and maintenance are provided. Numbers and headings of the chapters are the same as in the "Instructions for Use" 3. -
Page 17: Description Of Controls
Mechanical connection of the valve: the HCW output from the boiler is connected to the input of the electric-motor-driven three-way valve; if the drive motor is inactive (has no voltage), the outputs from the valve to the boiler and to the heating circuit must be closed. -
Page 18: Boiler Maintenance
The following steps are to be followed: Dismount the burner from the boiler. Replace the nozzles with the type suitable for the required fuel. Number / diameter of nozzles (mm) 20 KLO 30 KLO 40 KLO 50 KLO 60 KLO Natural gas 2 / 2.65... -
Page 19: Fig. 4A Electric Wiring Diagram Of Protherm 60 Klo
Fig. 4a Electric Wiring Diagram of PROTHERM 60 KLO Fig. 4b Electric Wiring Diagram of PROTHERM 20, 30, 40, 50 KLO - Main switch - Electrical fuse - Power-stage switch - RESET button - Emergency state indicator - Emergency temperature thermostat... -
Page 20: Fig. 5A Regulation Elements Of "Sit 843" Combined Gas Armature
Fig. 5a Regulation elements of "SIT 843" combined gas armature (for boilers 20, 30, 40, 50 KLO) a – Input b – Output 1 – Setting screw for maximum 2 – Setting screw for minimum Fig. 5b Regulation elements of "SIT 840 SIGMA" combined gas armature Supplied By www.heating spares.co Tel. -
Page 21: Technical Parameters
Technical Parameters of PROTHERM "BEAR" 20 (30) KLO Boilers Type Unit. 20 KLO 30 KLO Category 2H3P Design 11BS Ignition el. spark Fuel / input pressure natural gas / 1.8 kPa LPG / 3.0 kPa Power output 1 stage - natural gas 17/11.9... - Page 22 Technical Parameters of PROTHERM "BEAR" 40 (50, 60) KLO Boilers Type Unit. 40 KLO 50 KLO 60 KLO Category 2H3P Design 11BS Ignition el. spark Fuel / input pressure natural gas / 1.8 kPa LPG / 3.0 kPa Power output 1...
