Summary of Contents for MINOLTA-QMS magicolor 6100 Series
-
Page 1: Maintenance Guide

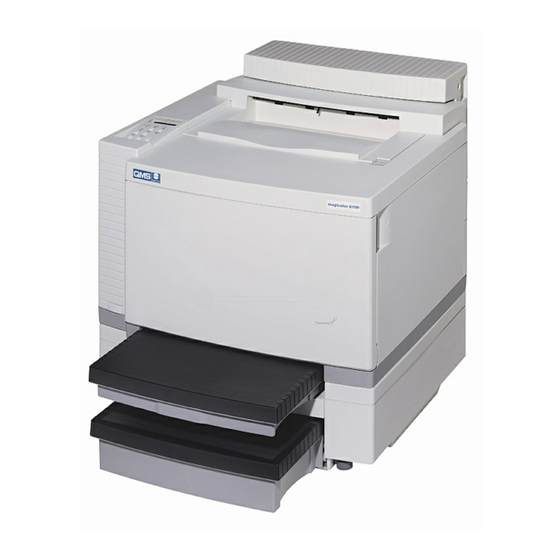

magicolor 6100 ® Series Maintenance Guide 1800646-001A... - Page 2 MINOLTA-QMS, Inc. Notice MINOLTA-QMS, Inc. reserves the right to make changes to this guide and to the equipment described herein without notice. Considerable effort has been made to ensure that this guide is free of inaccuracies and omissions. However, MINOLTA- QMS, Inc.
-
Page 3: Media Specifications
Media Specifications Media Type Media Size Printer Input Auto- Mode Source duplex Inches Millimeters 11.7 x 16.5 297.0 x 420.0 Auto. 8.2 x 11.7 210.0 x 297.0 Auto. U/A/L A4 Transparency 8.2 x 11.7 210.0 x 297.0 Auto. 10.1 x 14.3 257.0 x 364.0 Auto. -
Page 4: Loading Media
Loading Media 154dv... -
Page 5: Clearing Media Jams
Clearing Media Jams... -
Page 8: Preventive Maintenance Schedule
Preventive Maintenance Schedule Preventive maintenance is needed after 30,000 30K MAINTENANCE pages have been printed. Preventive maintenance is needed after 240,000 240K MAINTENANCE pages have been printed. -
Page 9: Maintenance Schedule
Waste toner bottle 18,000 color planes. Ozone filter Every 12 months. Notes The fusing unit, transfer drum, paper pickup roller, and paper separation pad must be replaced by a MINOLTA-QMS authorized service provider. Refer to the Service & Support Guide . -
Page 10: Error Messages
Error Messages 5 " Frequent jams in any area indicate that the area should be checked, repaired, cleaned, and/or replaced. Repeated jams will also occur if you’re using the wrong weight print media or if the media does not match the specifications noted in the User’s Guide . - Page 11 Error Message Problem Solution Misfeed jams occur between Locate and remove the jam. < X > JAM the upper or optional tray and the print engine. A misfeed jam may be as simple as a sheet of media not being picked, or it may be that the media was picked but not fed properly.
- Page 12 Replacing a Toner Cartridge...
-
Page 13: Replacing The Opc Belt Cartridge
Replacing the OPC Belt Cartridge ð 007mati.eps... -
Page 15: Replacing The Waste Toner Bottle
Replacing the Waste Toner Bottle 73z.eps... - Page 16 Replacing the Fuser Oil Bottle/Cleaning Roller...
-
Page 18: Replacing The Ozone Filter
Replacing the Ozone Filter Cleaning Schedule This item needs thorough After... cleaning... „ Printer exterior As needed „ Duplex unit paper guides Every 30,000 single-sided pages, or rollers every 12 months, or as needed, whichever comes earlier „ Laser lens „... -
Page 19: Printer Exterior
Cleaning Avoid A soft dry cloth to clean the Sharp or rough implements control panel (such as wire or plastic cleaning pads); any liquid A soft damp cloth to clean Sharp or rough implements (such the printer as wire or plastic cleaning pads) Mild neutral detergent to clean Abrasive or corrosive solutions the printer... - Page 20 Cleaning the Transfer Unit...
- Page 22 Cleaning the Laser Lens...
- Page 23 Cleaning the OPC Corona Wire ð...
- Page 25 Cleaning the Paper Exit Rollers...
